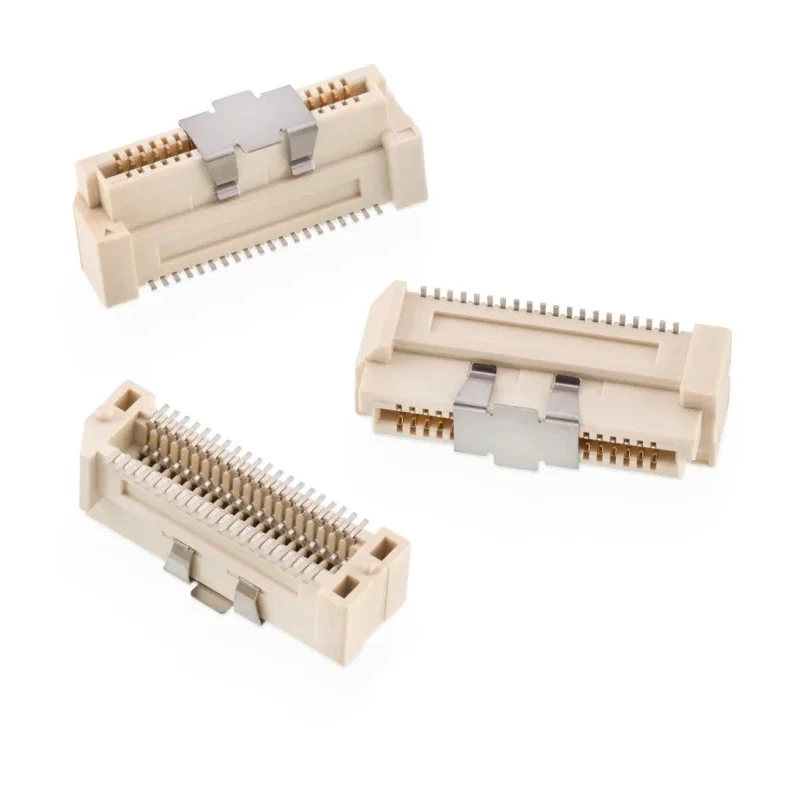

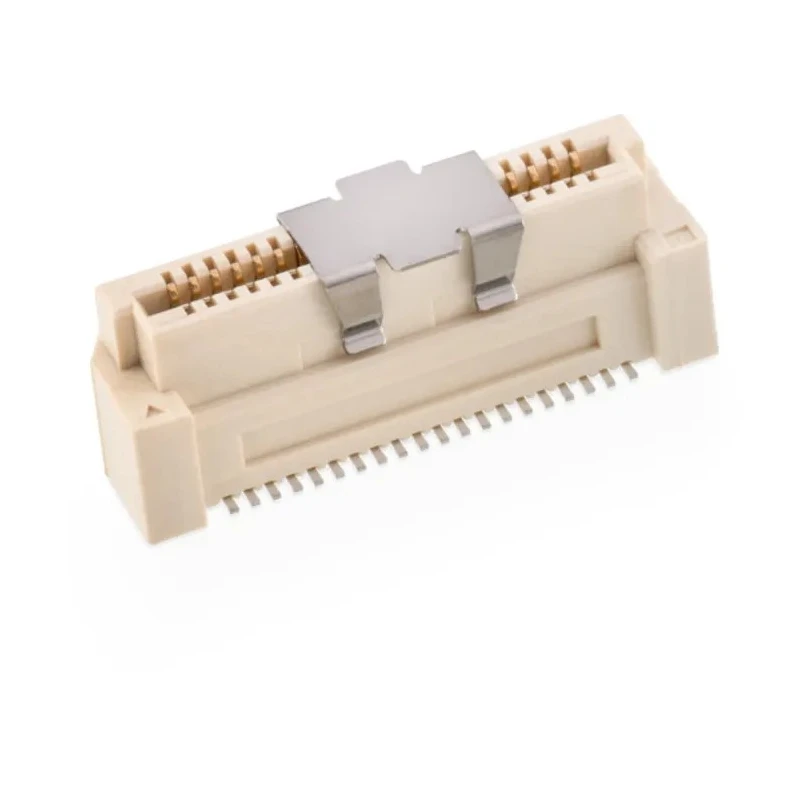

Wurth Elektronik WR-BTB Series Vertical Surface PCB Socket, 80-Contact, 1 Row, 0.8 mm Pitch 658807713080
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | WR-BTB |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Withstanding Voltage | 500 V (AC) |
| Insulator Material | LCP |
Key Features
- Designed for board-to-board vertical connection applications.
- Constructed with liquid crystal polymer housing for durability.
- Current rating of 500mA suits low-power electronic circuits.
- Gold-plated copper alloy female contacts ensure reliable signal integrity.
- Operating temperature ranges from -55°C to 85°C for wide environment tolerance.
- Surface mount termination type designed for solder mounting.
- The socket supports a voltage rating of 50V and a withstand voltage of 500 V (AC).
- Made in China with high-quality construction suitable for industrial electronics.
Product Description
Wurth Elektronik 658807713080 WR-BTB Series vertical surface PCB socket provides a reliable board-to-board connection solution with 80 female contacts arranged in a single row at 0.8 mm pitch. This connector is engineered for demanding industrial and electronic component applications requiring secure and compact connections.
The socket utilizes a liquid crystal polymer (LCP) housing material, known for its strength and stability, ensuring long-lasting performance. Copper alloy contacts are gold plated to provide excellent conductivity and corrosion resistance. It is designed for surface mounting using solder termination, making it compatible with standard SMT processes.
The connector system supports a current rating of 500mA and voltage rating of 50V, withstanding voltages up to 500 V (AC), enabling safe operation in sensitive electronic circuits. Its operating temperature range from -55°C up to 85°C ensures functional reliability in extreme environments.
This Wurth Elektronik PCB socket is ideal for industrial electronics, manufacturing, telecommunications, and other commercial uses that demand durable and precise board-to-board connectivity. Its vertical orientation and 0.8 mm pitch optimize board space and connector density.
Designed for board-to-board vertical connection applications. Durable liquid crystal polymer housing enhances mechanical stability. Gold-plated copper alloy contacts deliver superior electrical performance. 500mA current rating suitable for low-power circuits.
Operating temperature range from -55°C to 85°C allows wide environmental use. Surface mount solder termination for easy PCB integration. Voltage rating of 50V and withstand voltage of 500 V (AC) for safe operation. Manufactured in China ensuring quality standards compliance.
This product is part of the Wurth Elektronik WR-BTB series, known for precision and reliability in industrial and commercial PCB socket applications. Browse EnvMart for more connectors and electronic components from Wurth Elektronik.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this PCB socket is 500mA, making it suitable for low-power electronic circuits.
This model has a voltage rating of 50V and can withstand voltages up to 500 V (AC).
The operating temperature range for this connector is from -55°C to 85°C, allowing it to function reliably in extreme environments.
The housing is made from liquid crystal polymer (LCP), and the contacts are made of gold-plated copper alloy for enhanced conductivity.
This model features 80 female contacts arranged in a single row with a pitch of 0.8 mm.
It utilizes a surface mount solder termination type, designed for easy integration into PCB assembly processes.
The WR-BTB Series socket is designed for vertical orientation, optimizing board space and connector density.
Yes, this connector is ideal for industrial electronics, manufacturing, telecommunications, and other commercial uses that demand durable connectivity.
The pitch size of the contacts in this socket is 0.8 mm, which is designed for compact board-to-board connections.
This product is manufactured in China, ensuring compliance with quality standards.
This socket is part of a board-to-board connector system, specifically designed for secure connections between PCBs.
The contact gender of this PCB socket is female, allowing it to connect with male connectors.
