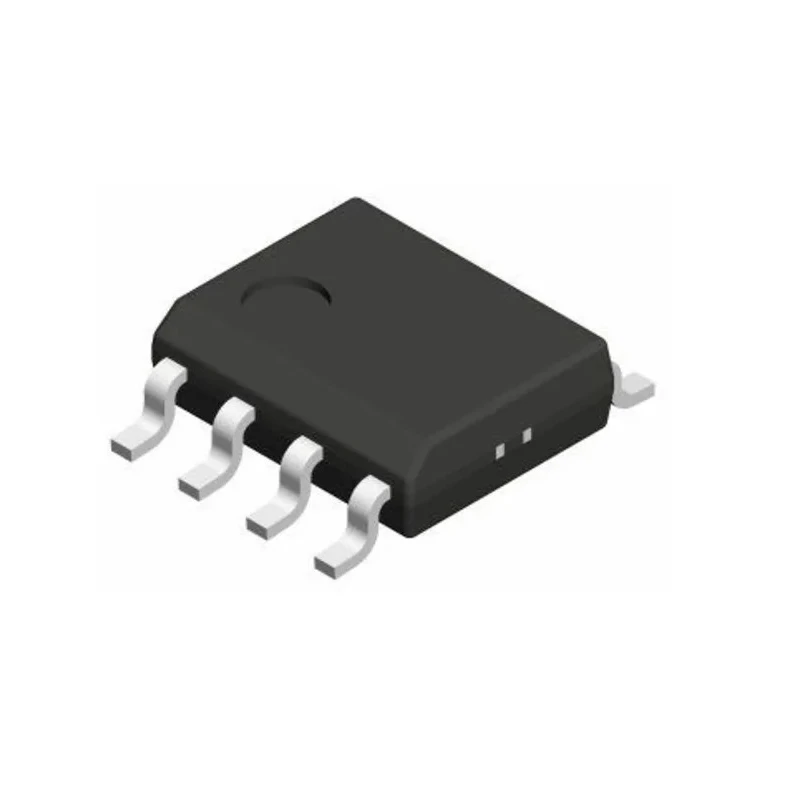

onsemi Operational Amplifier 270 kHz 8-Pin SOIC 5.5V NCS21872DR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.75mm |
| Length | 5mm |
| Model | NCS21872DR2G |
| Width | 4mm |
| Mount Type | Surface |
| Series | NCS21872 |
| Output Current | 11mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 270kHz |
| Input Bias Current | 400 pA |
| Slew Rate | 0.1V/μs |
| Input Offset Current | 800 pA |
Key Features
- Features ultra-low offset voltage of 45 microvolts for high precision.
- Operates within a wide temperature range from -40°C to 125°C.
- Supports dual channels with 11 mA output current each.
- Employs a surface mount SOIC package measuring 5 x 4 x 1.75 mm.
- Complies with RoHS standards and automotive AEC-Q100 qualification.
- Offers low input bias current of 400 picoamperes enabling sensitive measurements.
- Provides maximum input and output swing with lowest offset drift.
- Ideal for automotive, sensor, and precision instrumentation applications.
Product Description
onsemi NCS21872DR2G operational amplifier is a high-precision, zero-drift amplifier designed for low offset voltage of 45 μV and minimal drift. With a gain bandwidth product of 270 kHz, it provides reliable operation over temperatures ranging from -40°C to 125°C. This device comes in a compact 8-pin SOIC surface mount package measuring 5 mm length, 4 mm width, and 1.75 mm height.
Equipped with dual channels and a maximum output current of 11 mA per channel, the amplifier supports a supply voltage range from 1.8V up to 5.5V, making it suitable for low voltage precision applications. The low input bias current of 400 pA and input offset current of 800 pA enable sensitive sensor signal conditioning with maximum swing.
This product complies with RoHS and meets automotive standard AEC-Q100, ensuring quality and reliability in automotive and industrial sectors. The NCS21872 series from onsemi is engineered for use in industrial, automotive, instrumentation, and sensor signal conditioning systems requiring stable and precise amplification.
Key features include zero drift offset, low power consumption, and a compact footprint allowing space-saving PCB designs. The 8-pin SOIC package supports efficient surface mounting with excellent electrical performance.
Ultra-low offset voltage and drift enable high accuracy. Wide operating temperature range from -40°C to 125°C. Dual-channel design suitable for complex signal processing. Compact SOIC package enhances PCB space utilization.
Compliance with automotive and RoHS standards. Low input bias and offset currents optimize sensor interface. Supports precise signal conditioning applications. Reliable operation under wide supply voltage conditions. Explore more Operational Amplifiers and electronic components for your precise industrial and automotive applications with EnvMart's trusted electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 270 kHz, providing reliable performance for various applications.
It supports a maximum output current of 11 mA per channel, making it suitable for driving various loads.
This operational amplifier operates within a supply voltage range from 1.8V to 5.5V, allowing for flexibility in low voltage applications.
It operates effectively over a wide temperature range from -40°C to 125°C, suitable for automotive and industrial environments.
The NCS21872DR2G comes in an 8-pin SOIC package, measuring 5 mm in length, 4 mm in width, and 1.75 mm in height.
The input bias current is 400 pA, and the input offset current is 800 pA, allowing for sensitive measurements and signal conditioning.
Yes, it complies with the AEC-Q100 automotive standard, ensuring reliability for automotive applications.
The slew rate is 0.1 V/μs, which is important for determining how quickly the output can respond to changes in input.
It is ideal for automotive, sensor, and precision instrumentation applications due to its high precision and low offset voltage.
Yes, the NCS21872DR2G complies with RoHS standards, ensuring it meets environmental regulations.
The height of this operational amplifier is 1.75 mm, contributing to its compact design for PCB applications.
This model features dual channels, allowing for complex signal processing and amplification tasks.
