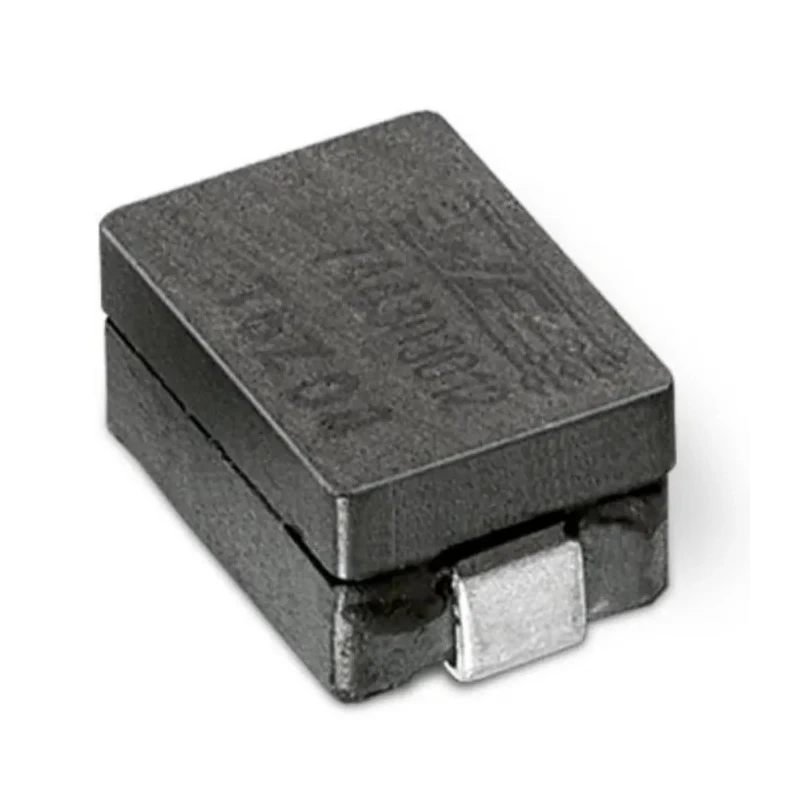

Wurth Elektronik 5030 Shielded Surface Mount Inductor with Ferrite Core 100 nH ±15 % 27 A Idc 74435030010
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 3mm |
| Length | 5.6mm |
| Depth | 3mm |
| Packaging | Tape & Reel |
| Series | WE-HCM |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100nH |
| Standards/Approvals | IEC 62024-2-2020, RoHS |
| Package/Case | 5030 |
| Maximum DC Current | 27A |
| Pin Count | 2 |
| Maximum DC Resistance | 0.31mΩ |
| Inductance Tolerance | ±15 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 83MHz |
| Inductor Construction | Shielded |
| Automotive Standard | AEC-Q200 |
Key Features
- This compact 5030 case inductor is shielded for minimal electromagnetic interference.
- Features a ferrite core construction to ensure low core losses.
- Inductance tolerance is ±15%, suitable for stable filtering and power supply applications.
- The inductor supports a maximum operating temperature of 125°C, ensuring reliability in harsh environments.
- Packaging is Tape & Reel, ideal for automated PCB assembly.
- It complies with automotive AEC-Q200 standards and IEC 62024-2-2020 and RoHS approvals.
- Extremely low DC resistance of 0.31 mΩ provides efficiency in power regulation.
- Designed for use in multiphase switching regulators, CPU/RAM power supply, power PC, and filter applications.
Product Description
Wurth Elektronik model 74435030010 is a 5030 shielded surface mount inductor featuring a ferrite core and an inductance of 100 nH with a tolerance of ±15%. This high current inductor supports a maximum DC current rating of 27 A, making it suitable for demanding electronic power supply applications.
Constructed with a shielded design to minimize electromagnetic radiation, it provides stable inductance with extremely low DC resistance of 0.31 mΩ. The inductor supports a maximum operating temperature of 125°C, capable of handling elevated thermal conditions in automotive and industrial environments.
Its compact 5.6 mm length, 3 mm height, and 3 mm depth in the 5030 package case allow for space-efficient designs on printed circuit boards. The inductor is designed for surface mount technology with a 2-pin termination style and is supplied in Tape & Reel packaging to facilitate automated manufacturing processes.
This product meets stringent automotive standard AEC-Q200 and relevant IEC 62024-2-2020 and RoHS directives, ensuring quality and environmental compliance. Ideal for multiphase switching regulators, CPU/RAM power supplies, power PC units, and filter circuits, it offers magnetically shielded construction for improved electromagnetic compatibility.
Compact 5030 case size ensures small footprint on PCB. Ferrite core reduces core losses and improves efficiency. Magnetically shielded to limit EMI emission. Supports high maximum DC current of 27A for power applications.
Extremely low DC resistance (0.31 mΩ) for minimal power loss. Rated for operating temperatures from -40 °C up to 125 °C. Compliant with automotive-grade AEC-Q200 standard. Supplied in Tape & Reel packaging suitable for automated assembly.
Wurth Elektronik inductors like the 74435030010 are widely utilized in industrial, automotive, electronic, and power supply manufacturing applications requiring reliable and efficient inductance components. Browse more from the Surface Mount Inductor category on EnvMart for complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance of 100 nH with a tolerance of ±15%.
It supports a maximum DC current rating of 27 A, making it suitable for high-power applications.
The inductor can operate at a maximum temperature of 125°C, suitable for harsh environments.
This inductor has a length of 5.6 mm, a height of 3 mm, and a depth of 3 mm.
It is supplied in Tape & Reel packaging, which is ideal for automated PCB assembly.
It complies with automotive AEC-Q200 standards, IEC 62024-2-2020, and RoHS approvals.
The inductor features a ferrite core construction, which helps reduce core losses.
It has an extremely low DC resistance of 0.31 mΩ, which enhances efficiency in power regulation.
The maximum self-resonant frequency for this model is 83 MHz.
This inductor uses a surface mount termination style with a 2-pin configuration.
It is designed for use in multiphase switching regulators, CPU/RAM power supplies, power PC units, and filter applications.
This model is part of the WE-HCM series of inductors from Wurth Elektronik.
