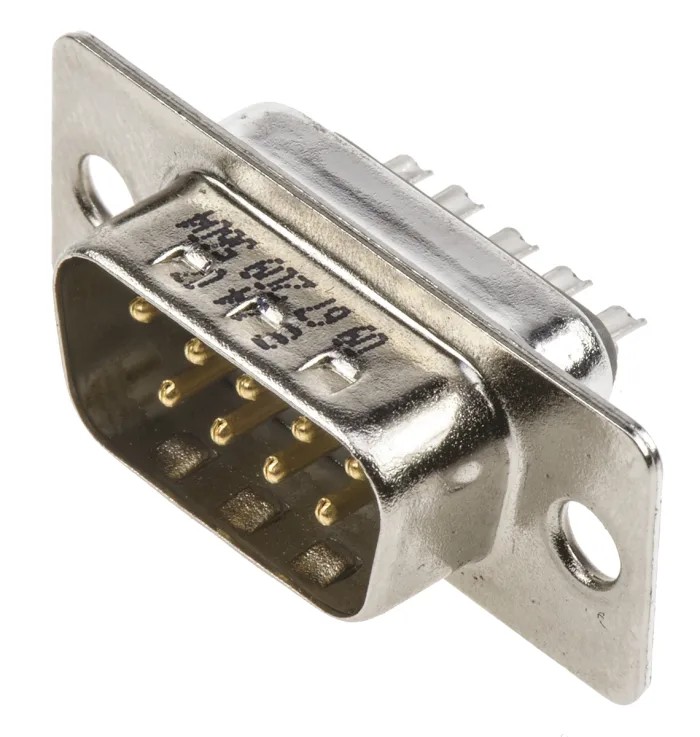

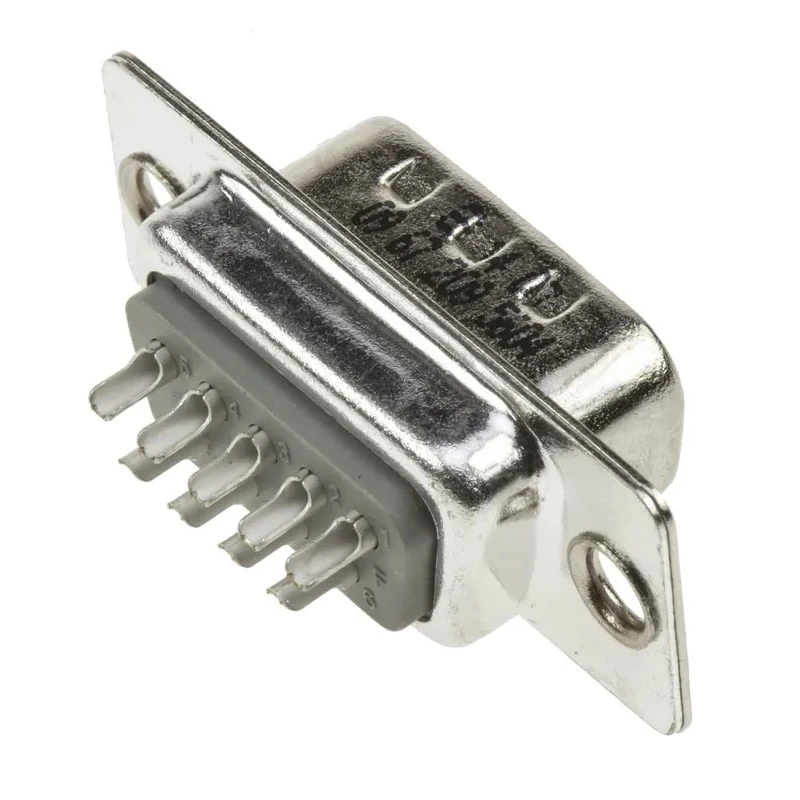

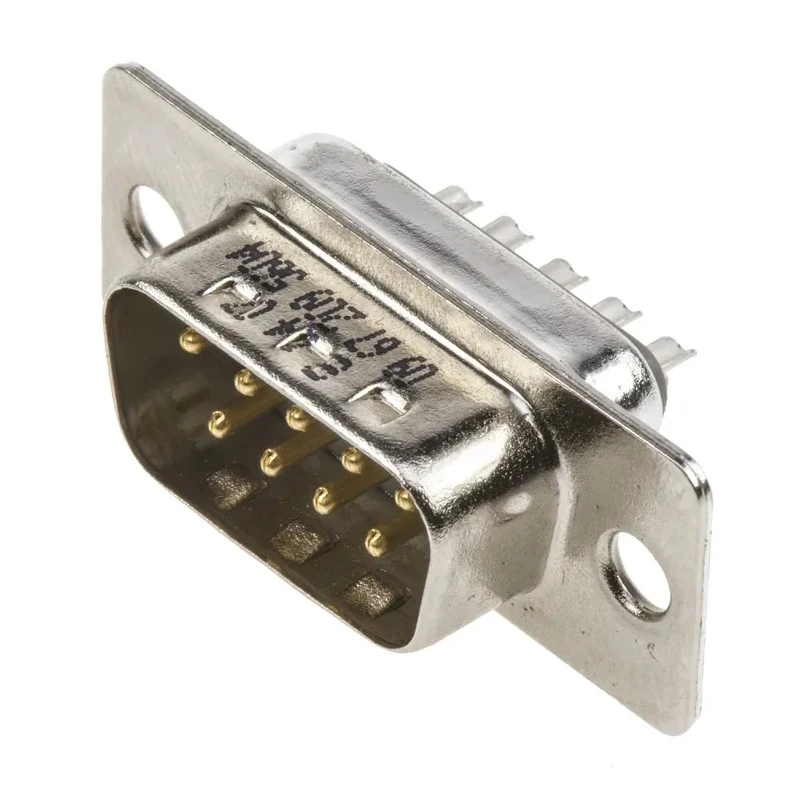

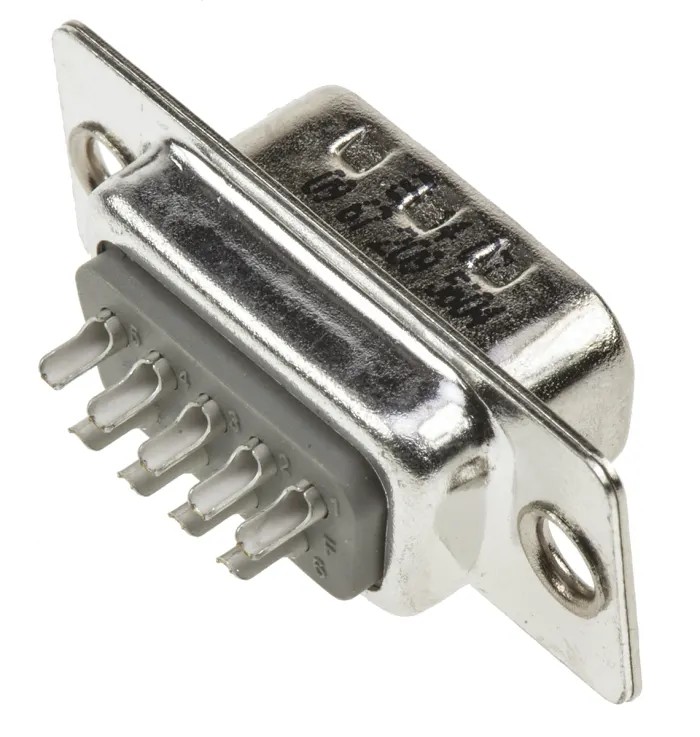

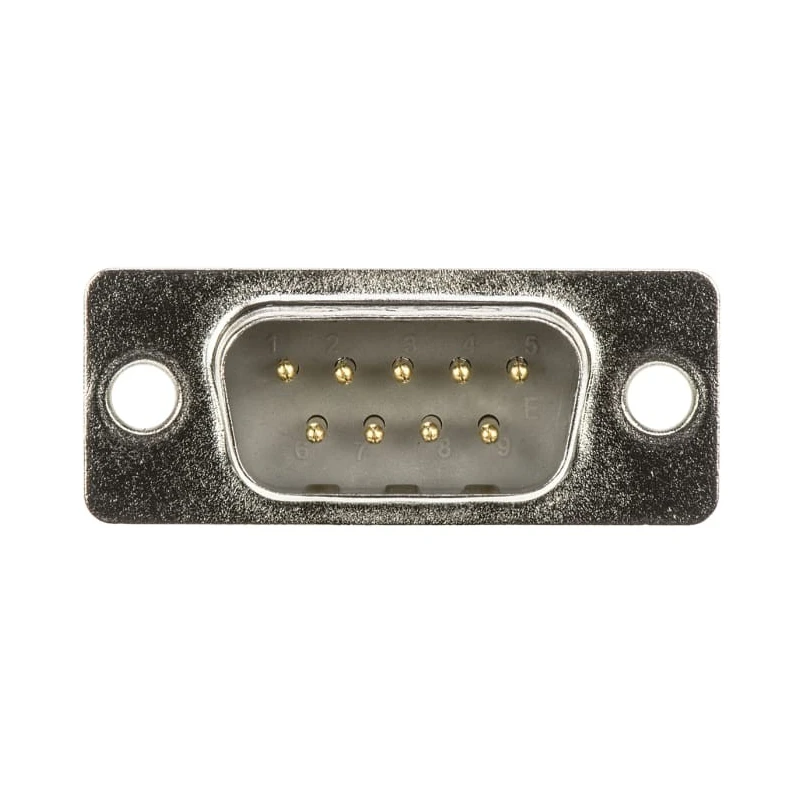

HARTING D-Sub 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with Flange Male 09672095604
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 6.5A |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Mounting Hardware | Flange |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Standards/Approvals | UL Recognised, UL 94-V0, RoHS |
| Contact Plating | Steel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | E |
| Provertha, TMC Panel Mount, 9 Pin D-sub Connector Plug, Shell Size EBrand | Provertha |
Key Features
- Constructed with a steel housing providing robust protection and durability.
- Employs copper alloy male contacts plated with steel for enhanced conductivity and wear resistance.
- Suitable for currents up to 6.5 amperes and voltage rating of 1000 volts.
- Designed with a straight orientation and solder termination type for secure connections.
- Features a flange mounting hardware for stable panel installation.
- Operates reliably within a temperature range of -55 degrees Celsius to 125 degrees Celsius.
- Meets industry standards including UL Recognised, UL 94-V0, and RoHS compliance.
- Constructed according to Harting DIN 41652 standard with stamped contacts and solder bucket terminals.
Product Description
HARTING 09672095604 D-Sub Connector 9 Way Panel Mount is a high-quality electronic component designed for reliable connections in power and signal applications. Featuring a 2.77 mm pitch with 9 male contacts, this panel mount connector offers a straight orientation with flange mounting for secure attachment to equipment panels.
Constructed with a robust steel housing, this connector ensures mechanical durability and electromagnetic shielding. The copper alloy contacts are plated with steel, providing excellent electrical conductivity and corrosion resistance. Designed to operate safely within a voltage of 1000 V and a current rating of 6.5 A, this connector accommodates demanding industrial and electronic use cases.
The termination type is solder, compatible with stranded or single core wires, making it ideal for custom wiring and PCB assembly. It is built to endure operating temperatures ranging from -55°C to 125°C, making it suitable for harsh environments. The connector complies with UL Recognised, UL 94-V0, and RoHS standards, ensuring safety and environmental conformity.
This model is part of the Harting DIN 41652 series with stamped female contacts and solder bucket terminals. The flange mounting hardware facilitates easy installation in panel applications. Designed for use in electronics manufacturing, power distribution systems, instrumentation, and industrial automation, this connector enhances system reliability and ease of maintenance.
Durable steel housing provides mechanical strength and EMI shielding. High-quality copper alloy contacts with steel plating for optimal conductivity. Rated for 6.5 A current and insulation voltage up to 1000 V. Straight orientation with flange for secure panel mounting.
Solder termination compatible with various wire types. Wide temperature range from -55°C to 125°C for diverse environments. UL Recognised, UL 94-V0, and RoHS compliant for safety and environmental standards. Complies with Harting DIN 41652 standard, ensuring industry compatibility.
Suitable for electronics, power connectors, industrial equipment, and manufacturing applications. Explore more industrial connectors and components to enhance your electronic assemblies with confidence at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this D-Sub connector is 1000 volts.
This model can handle a current of up to 6.5 amperes.
It operates reliably within a temperature range of -55 degrees Celsius to 125 degrees Celsius.
The housing is constructed from steel, and the contacts are made of copper alloy plated with steel.
This connector features a solder termination type, making it compatible with stranded or single core wires.
It uses a flange mounting type for secure attachment to equipment panels.
This connector has 9 male contacts.
It complies with UL Recognised, UL 94-V0, and RoHS standards.
The pitch of this connector is 2.77 mm.
This model is part of the Harting DIN 41652 series.
The connector is designed with a straight orientation.
The country of origin for this connector is China.
