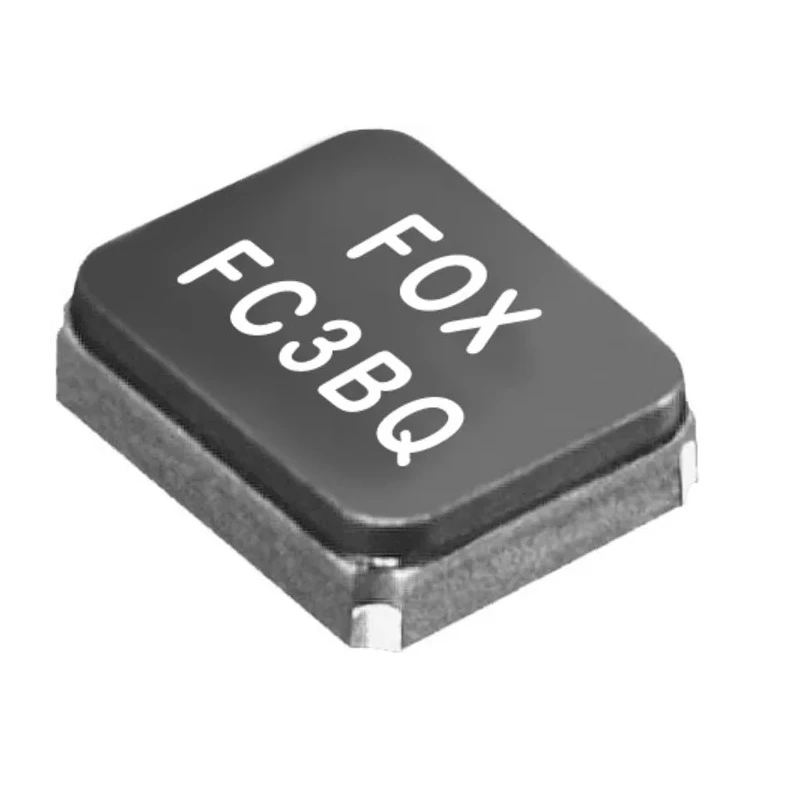

Abracon 12 MHz Crystal ±50 ppm Surface Mount 4-Pin 1.1 mm Height 3.3 mm Length 2.5 mm Width FC3BQBBMM12.0-T3

Abracon FC3BQBBMM12.0-T3 is a 12 MHz crystal designed for surface mount technology with a 4-pin configuration. This crystal ensures high frequency stability with a ±50 ppm tolerance, suitable for precise timing and frequency control in electronics applications.

With a compact footprint measuring 3.3 mm in length, 2.5 mm in width, and 1.1 mm in height, this component is ideal for space-constrained circuit boards. It features a load capacitance of 20 pF and a shunt capacitance approximated at 3 pF, providing stable operation in tuned oscillators and clock generation circuits.

The crystal supports robust operation over a wide temperature range from -40°C to 85°C, making it fit for industrial, automotive, communication, and consumer electronics industries. It is manufactured with a resin seal and has silver termination finishes, enhancing durability and reliable electrical contact.

Packaged in tape and reel format, the product is compatible with automated pick-and-place manufacturing processes. RoHS compliance ensures it meets environmental directives. The crystal operates at 12 MHz frequency for timing applications.

Surface mount design with a 4-pin package enables secure mounting. Load capacitance rating is 20 pF for circuit tuning. Dimensionally compact for space-saving on PCBs. Wide operating temperature range from -40°C to 85°C.

RoHS certified, ensuring environmentally friendly manufacturing. Tape & reel packaging supports automated assembly lines.

This Abracon 12 MHz surface mount crystal is well-suited for use in industrial electronics, communication devices, computing equipment, and embedded systems requiring precise and stable frequency reference sources. Browse EnvMart for a wide range of Crystal Units and related passive components.
