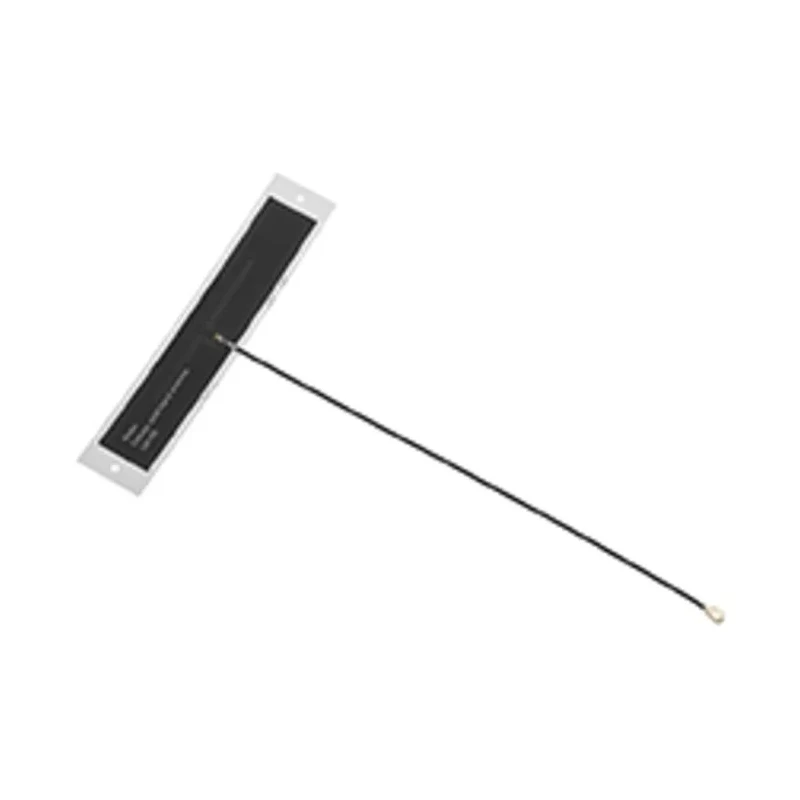

Molex Multi-Band Patch Antenna, 824 MHz to 6000 MHz, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), Internal, MCRF Connector 146185-0100
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Connector Type | MCRF |
| Series | 146185 |
| Gain | 4dBi |
| Lead Length | 100mm |
| Standards/Approvals | Halogen-Free Status Low-Halogen, EU RoHS China RoHS Compliant, REACH SVHC Not Contained Per - D(2020)9139-DC (19 Jan 2021), EU ELV Not Relevant |
| Maximum Frequency | 6000MHz |
| Connector Gender | Female |
| Minimum Frequency | 824MHz |
| Internal/External | Internal |
| RF Protocols | 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), WiFi |
| Antenna Physical Form | Patch |
| Antenna Mount Type | Through Hole/Bolted |
| Directivity | Omni-Directional |
| Number of Bands | 3 |
Key Features
- Designed as an internal patch antenna with a compact form factor.
- Features an MCRF female connector for reliable signal transmission.
- Omni-directional directivity providing broad coverage.
- Gain of 4 dBi ensures effective signal strength.
- Mounts through hole or bolted for secure placement.
- Includes a 100 mm lead cable for flexible installation.
- Compatible with multiple bands to support GSM, GPRS, UTMS, LTE, and WiFi protocols.
- Manufactured with low-halogen materials and compliant with EU RoHS, China RoHS, and REACH standards.
Product Description
Molex 146185-0100 Multi-Band Patch Antenna is an internal antenna designed for cellular and WiFi applications, covering frequencies from 824 MHz to 6000 MHz. It supports multiple protocols including 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), and WiFi, making it versatile for various wireless communication systems.
The antenna has a patch physical form factor and provides omni-directional signal coverage with a gain of 4 dBi. It features a female MCRF connector and includes a 100 mm lead cable to ensure flexible and reliable connection options.
Its mounting type is through hole or bolted, allowing secure installation in diverse environments. Designed as a cellular quad-band flex antenna, it has a width of 15 mm, making it compact for embedded applications.
Constructed with low-halogen materials, this antenna is compliant with international environmental standards including EU RoHS, China RoHS, and REACH. It is halogen-free and meets environmental regulations such as EU ELV.
This product is manufactured in China and is intended for industrial, telecommunications, networking, and wireless infrastructure applications requiring multi-band antenna solutions.
Internal patch antenna with wide frequency coverage. MCRF female connector with included lead cable. Omni-directional pattern for broad signal reception. Compliant with RoHS and REACH environmental standards. Compact size suitable for embedded wireless systems.
Versatile for 2G, 3G, 4G cellular and WiFi protocols. Mounts securely through hole or bolted installations. Ideal for industrial and commercial wireless communications. Explore more Multi-Band Antennas and related components in the EnvMart Electronics category for compatible connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The antenna has a gain of 4 dBi, which ensures effective signal strength for wireless communications.
It can be mounted through hole or bolted, allowing for secure placement in various environments.
The antenna includes a 100 mm lead cable, providing flexibility for installation.
This model features a female MCRF connector for reliable signal transmission.
It has a patch physical form factor, making it compact and suitable for embedded applications.
Yes, it is compliant with EU RoHS, China RoHS, and REACH standards, and is constructed with low-halogen materials.
The antenna is manufactured in China.
This model provides omni-directional directivity, allowing for broad signal coverage.
It supports three bands, making it suitable for multi-band applications.
It is intended for industrial, telecommunications, networking, and wireless infrastructure applications requiring multi-band solutions.
