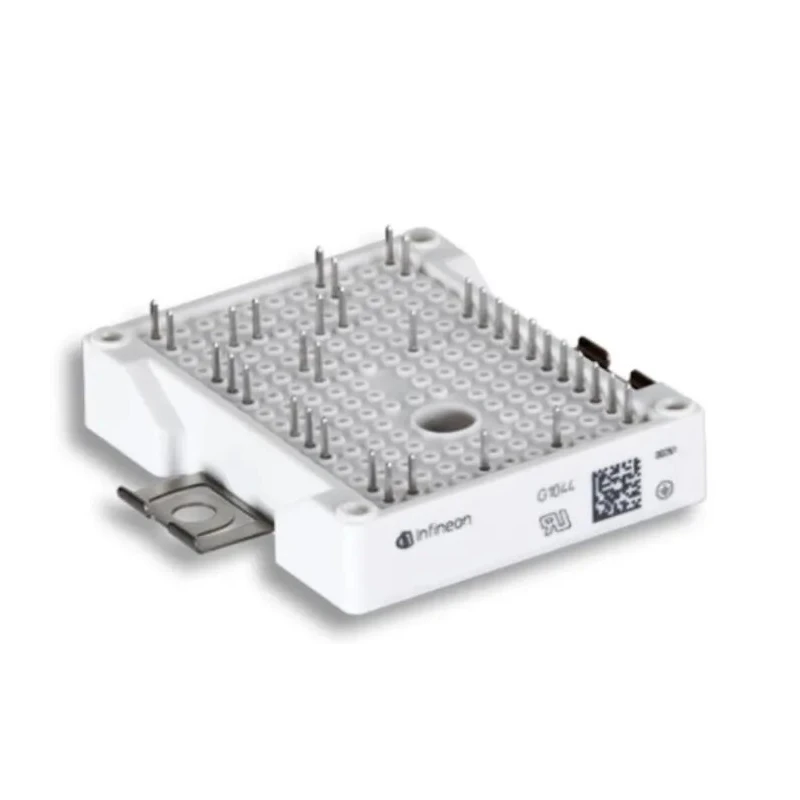

Infineon Type N-Channel IGBT Module 35 A 1200 V EASY2B Clamp FP35R12W2T4PB11BPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 12mm |
| Length | 56.7mm |
| Model | FP35R12W2T4PB11BPSA1 |
| Width | 42.5mm |
| Mount Type | Clamp |
| Series | FP35 |
| Maximum Operating Temperature | 150°C |
| Package Type | EASY2B |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Collector Current Ic | 35A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.25V |
| Channel Type | Type N |
| Maximum Power Dissipation Pd | 20mW |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- This module features TRENCHSTOP IGBT7 technology for efficient power switching.
- Maximum continuous collector current of 35 amperes ensures robust operation.
- Collector emitter voltage rating of 1200 volts supports high-voltage applications.
- Maximum power dissipation is 20 milliwatts for superior thermal management.
- Mount type uses integrated clamps for secure and rugged assembly.
- Operating temperature range from -40°C to 150°C supports diverse environments.
- Compact dimensions with length 56.7 mm, width 42.5 mm, and height 12 mm optimize installation space.
- Suitable for inverter, motor drive, and air conditioning applications in industrial use.
Product Description
Infineon FP35R12W2T4PB11BPSA1 is a high-quality Type N-Channel IGBT Module designed for industrial power electronics applications. The module's EASY2B package with clamp mounting facilitates rugged and reliable installation. With a maximum continuous collector current of 35 A and a collector emitter voltage of 1200 V, it is well-suited for auxiliary inverters, motor drives, and air conditioning systems.
The incorporation of TRENCHSTOP IGBT7 technology enhances switching efficiency and electrical performance. The module maintains operation at temperatures ranging from -40°C up to 150°C, allowing use in demanding environments. Its compact form factor with precise dimensions (56.7 mm length, 42.5 mm width, 12 mm height) supports space-constrained designs.
Power dissipation is limited to 20 milliwatts to ensure thermal reliability. The module complies with RoHS environmental directives, promoting sustainable manufacturing and application. The EASY2B package and clamp mounting type allow secure mechanical fixing, optimizing durability during operation.
This IGBT Module is an excellent choice for Industrial, HVAC, manufacturing, and motor control systems requiring efficient power switching and high voltage tolerance. This module features TRENCHSTOP IGBT7 technology for efficient power switching.
Maximum continuous collector current of 35 amperes ensures robust operation. Collector emitter voltage rating of 1200 volts supports high-voltage applications. Maximum power dissipation is 20 milliwatts for superior thermal management.
Mount type uses integrated clamps for secure and rugged assembly. Operating temperature range from -40°C to 150°C supports diverse environments. Compact dimensions with length 56.7 mm, width 42.5 mm, and height 12 mm optimize installation space.
Suitable for inverter, motor drive, and air conditioning applications in industrial use. Compliance with RoHS standards ensures environmentally safe operations. Explore the Infineon range for advanced power modules at EnvMart to support your industrial automation and control projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this module is 35 amperes.
The collector emitter voltage rating is 1200 volts, making it suitable for high-voltage applications.
It features TRENCHSTOP IGBT7 technology, which enhances switching efficiency and electrical performance.
The operating temperature range is from -40°C to 150°C, allowing use in diverse environments.
The dimensions of this module are 56.7 mm in length, 42.5 mm in width, and 12 mm in height.
The maximum power dissipation is limited to 20 milliwatts, ensuring superior thermal management.
This module uses an integrated clamp mounting type for secure and rugged assembly.
It is suitable for inverter, motor drive, and air conditioning applications in industrial use.
The module complies with RoHS environmental directives, promoting sustainable manufacturing and application.
The maximum gate emitter voltage is 20 volts.
The package type is EASY2B, which facilitates rugged and reliable installation.
The country of origin for this module is India.
