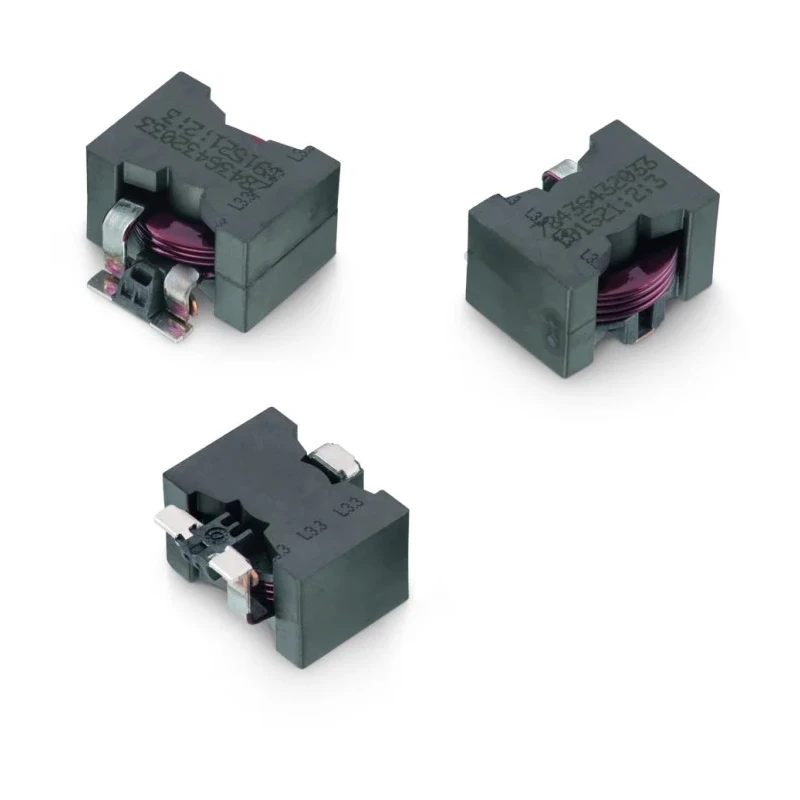

Wurth Elektronik WE-HCFA 2818 Unshielded Wirewound Surface Mount Inductor with Manganese Zinc Core 6.8μH 24A 78436432068
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 17mm |
| Length | 27.5mm |
| Depth | 27.5mm |
| Packaging | Tray & Carton |
| Series | WE-HCFA |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Manganese Zinc |
| Inductance | 6.8μH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, RoHS, REACH |
| Package/Case | 2818 |
| Maximum DC Current | 24A |
| Pin Count | 3 |
| Maximum DC Resistance | 1.1mΩ |
| Inductance Tolerance | 15 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 20MHz |
| Inductor Construction | Flat Wire Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a manganese zinc core for improved magnetic properties.
- Features a flat wire winding design optimized for DC/DC converters.
- Supports maximum operating temperatures up to 150°C for automotive use.
- Unshielded with 3 pins and a package case size of 2818.
- Offers 15% inductance tolerance for precise electrical performance.
- Flat wire construction ensures excellent planarity and high saturation performance.
- Complies with IEC 61249-2-21, JEDEC JS709B, RoHS, and REACH standards.
- Designed for automotive AEC-Q200 Grade 1 qualification.
Product Description
Wurth Elektronik model 78436432068 is an unshielded wirewound surface mount inductor featuring a manganese zinc core and flat wire winding design with 6.8μH inductance and a maximum DC current rating of 24A. It is specifically engineered for high efficiency automotive DC/DC converters, single and polyphase buck and boost converters, as well as filters for infotainment and audio applications.
This inductor exhibits excellent planarity and high saturation performance, making it ideal for demanding automotive and industrial environments. It supports a wide operating temperature range from -40°C to 150°C in compliance with AEC-Q200 Grade 1 automotive standards.
The device has a package case size of 2818, with dimensions 27.5mm length, 17mm height, and 27.5mm depth, configured as a 3-pin surface mount component. Its maximum DC resistance is 1.1mΩ and it has a maximum self-resonant frequency of 20MHz, enabling robust performance in high-frequency circuits.
Constructed using a flat wire winding technique on a manganese zinc core, the inductor ensures magnetically optimized characteristics suitable for efficient energy storage and filtering. This component is RoHS and REACH compliant, following industry standards IEC 61249-2-21 and JEDEC JS709B.
Constructed with a manganese zinc core for optimal magnetic properties. Flat wire winding design enhances efficiency and performance. Rated for continuous currents up to 24A, supporting high current loads. Automotive grade with AEC-Q200 certification ensures durability under harsh conditions.
Unshielded design suitable for applications requiring minimal magnetic interference. Wide operating temperature range from -40°C to 150°C. Low DC resistance of 1.1 milliohms minimizes power losses. Complies with major international standards and environmental regulations.
Packaged securely in trays and cartons for transportation and handling. Perfect for automotive, industrial, HVAC, and electronic manufacturing uses. Explore the Wurth Elektronik range in the Surface Mount Inductors category on EnvMart for highly reliable and efficient inductors supporting diverse industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 6.8μH, making it suitable for various applications requiring this level of inductance.
It has a maximum DC current rating of 24A, allowing it to handle high current loads efficiently.
The dimensions of this inductor are 27.5mm in length, 17mm in height, and 27.5mm in depth.
This unit can operate at a maximum temperature of 150°C, which is suitable for automotive applications.
It features a flat wire winding construction, which enhances its efficiency and performance characteristics.
It complies with IEC 61249-2-21, JEDEC JS709B, RoHS, and REACH standards, ensuring it meets industry regulations.
The maximum self-resonant frequency is 20MHz, enabling robust performance in high-frequency circuits.
This inductor has a pin count of 3, configured for surface mount applications.
The maximum DC resistance is 1.1mΩ, which helps minimize power losses during operation.
It is designed to meet the AEC-Q200 Grade 1 automotive standard, ensuring its reliability in automotive applications.
It is packaged securely in trays and cartons for transportation and handling.
