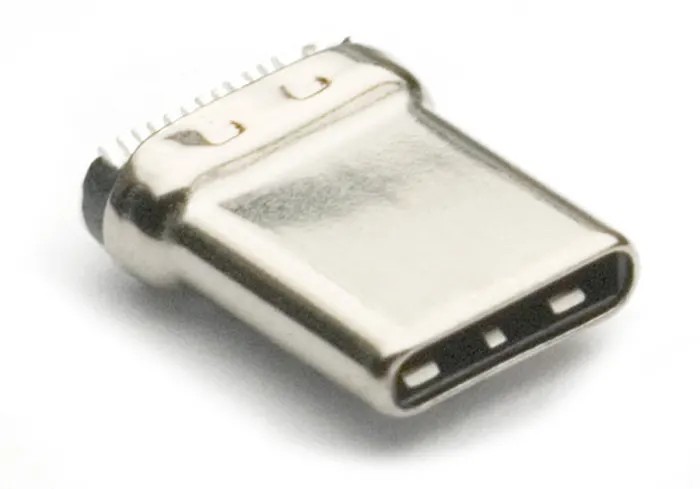

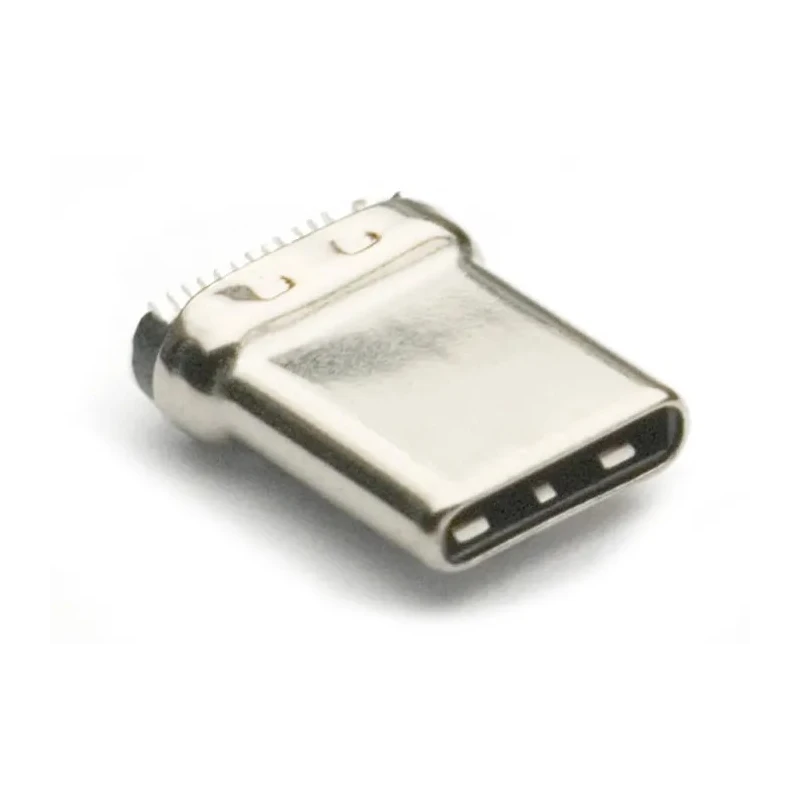

Molex Right Angle Surface Mount Male USB Type C USB Connector 1 Port USB 3.1 105444-0001

The Molex 105444-0001 is a high-quality Right Angle Surface Mount Male USB Type C Connector complying with USB 3.1 standards. Designed for integrating USB Type C connectivity on PCBs, it supports simultaneous power and data transmission at speeds up to 10 Gbit/s.

This connector is constructed from copper alloy, offering excellent durability and resilience to harsh operating conditions, withstanding temperatures from -30°C to +85°C. Its right angle configuration and surface mount design provide flexible installation options on various electronic hardware.

Rated to carry up to 5 Amperes of current and 30 Volts, it is suitable for the latest devices demanding higher power delivery, such as laptops, smartphones, and tablets. The connector supports a robust wire-to-board solder termination ensuring secure and reliable electrical connections.

Engineered for a long life of up to 10,000 mating cycles, this USB Type C connector benefits from a unique reversible design allowing users to connect cables without orientation concerns. It features a three-insert mould receptacle to strengthen the mating tongue, enhancing solder performance and connection stability.

Applications include electronic manufacturing, consumer electronics, telecommunications, and computing devices requiring USB Type C interfaces with high data rates and reliable power delivery.

This product is manufactured in China, with the series number 105444, ensuring consistent quality and standards compliance. This USB Type C connector supports USB 3.1 specification ensuring high-speed data transmission. Right angle orientation with surface mount type for versatile PCB integration.

Supports a current rating of 5A and voltage rating of 30V for efficient power delivery. Made from durable copper alloy with a temperature range from -30°C to 85°C for robust performance. Designed for up to 10,000 mating cycles providing excellent durability and longevity.

Wire-to-board termination type with solder connection suitable for various assembly methods. Compatible with devices like laptops, phones, and tablets requiring USB Type C interface. Reversible mating feature allows connection in any orientation, enhancing ease of use.
