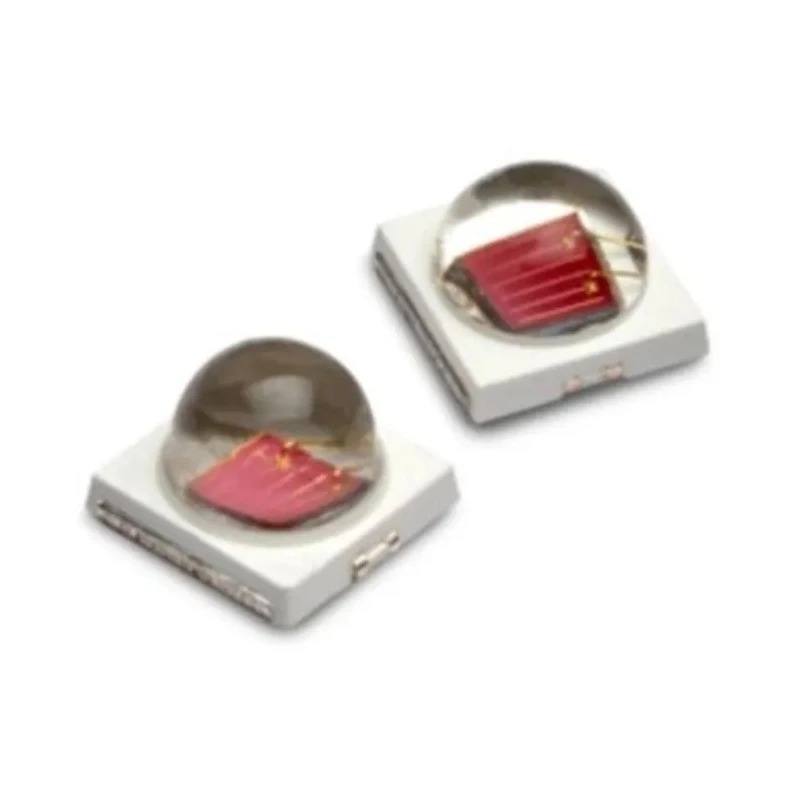

Broadcom High-Power 2.6 V Red LED 3535 Surface Mount Dome Lens 3-Pin ASM6 Series ASM6-S390-ANQ0H

Broadcom ASM6-S390-ANQ0H is a high-power red LED from the ASM6 series featuring a 2.6 V forward voltage and a compact 3535 surface mount package. The LED utilizes a dome-shaped clear lens measuring approximately 3.45 x 3.46 mm, providing effective light dispersion with selectable viewing angles of 130° and 90°.

This LED series is an advancement over the earlier ASM3 series, offering higher lumen output and an improved cost per lumen ratio. It incorporates energy-efficient design and excellent heat sink properties, enhancing overall device reliability and longevity through the use of silicone encapsulation.

The LED supports a maximum forward current of 1000 mA and maximum power dissipation of 3400 mW, making it suitable for demanding lighting applications. It features a robust 3-pin surface mount design compatible with standard reflow soldering processes, ensuring ease of integration on PCB assemblies.

With JEDEC MSL 1 certification, the device shows excellent moisture resistance, improving manufacturing and storage handling. The ASM6 series is designed to meet industrial, electronics, and general lighting requirements but does not include automotive-grade certification. Its package robustness and high-quality encapsulation ensure consistent performance in various operational environments.

This component is ideal for industrial electronic products, equipment displays, signal indicators, and other applications requiring compact, high-efficiency, red LED lighting solutions. It is supplied on reels suitable for automated assembly lines.

Designed for energy efficiency and enhanced lumen output. Features a durable dome-shaped clear lens for optimal light dispersion. Supports a maximum forward current of 1000 mA for high brightness. Available with 130° and 90° viewing angles to suit various applications.

Designed for surface mount technology with 3 pins for stable mounting. Encapsulated with high-reliability silicone resin for improved longevity. Meets JEDEC MSL 1 standard for moisture sensitivity. Compatible with reflow soldering processes for manufacturing efficiency.

Package dimensions are approximately 3.45 x 3.46 mm, maintaining a compact footprint. No automotive certification, suitable for general electronic and industrial use. Explore more LED components and high-quality electronic parts at EnvMart for all your industrial and laboratory electronics needs.
