| Country of Origin | Taiwan |
|---|---|
| Voltage | 25V dc |
| Brand | Wurth Elektronik |
| Operating Temperature | - 55 °C to +125 °C |
| Height | 0.8mm |
| Length | 2mm |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | WCAP-CSGP |
| Termination | Cu/Ni/Sn |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Dielectric | X7R |
| Suppression Class | Class II |
| Recommended soldering | Reflow, for 0603 and 0805 wave soldering is also allowed |
| Ceramic characteristics | Class I - NP0 , Class II - X7R , X5R |

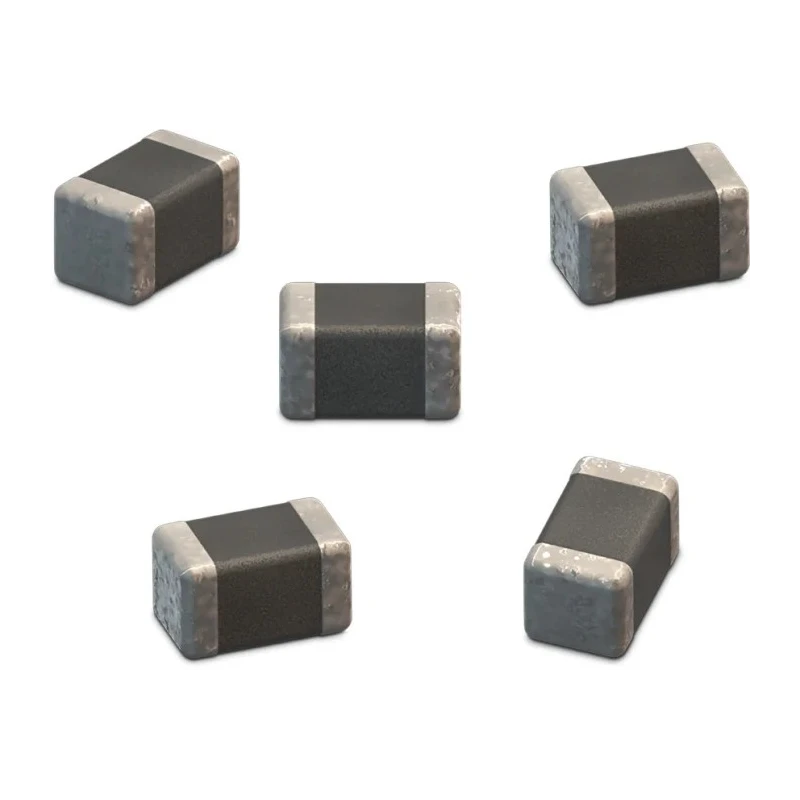

Wurth Elektronik 885012207066 is a high-quality 10 nF multilayer ceramic capacitor designed for surface mounting applications. Featuring an 0805 package size with dimensions of 2 mm length, 1.25 mm width, and 0.8 mm height, this capacitor delivers reliable electrical performance in compact electronic circuit designs.
It operates at a voltage rating of 25V dc with a capacitance tolerance of ±10 percent, utilizing an X7R dielectric for enhanced performance stability over a temperature range from -55°C to 125°C. The termination is made of Cu/Ni/Sn, ensuring efficient solderability for typical reflow processes, with wave soldering also compatible for certain package types.
This component complies with RoHS directives, supporting environmentally conscious manufacturing. It is ideal for use in industrial electronics, consumer devices, and automotive electronics where stable capacitance and surface mounting are required.
Technical characteristics include ceramic characteristics classified as Class I - NP0 and Class II - X7R, X5R, providing users flexibility in circuit design specifications. The series WCAP-CSGP further assures stringent quality standards maintained by Wurth Elektronik.
Capacitance of 10 nF ensures suitable performance for filtering and decoupling applications. Voltage rating of 25V dc supports low-voltage electronic circuits. Surface mount package 0805 offers compact PCB footprint and easy assembly.
Tolerance is ±10 percent allowing consistent capacitance performance. Dielectric type X7R provides good temperature stability from -55°C up to 125°C. Termination constructed of Cu/Ni/Sn for reliable solder connections. Dimensions: 2 mm length, 1.25 mm width, 0.8 mm height.
Complies with RoHS standards ensuring environmental safety. Recommended soldering techniques include reflow and wave soldering for specific packages. Manufactured in Taiwan, Province Of China, indicating high production quality.
This Multilayer Ceramic Capacitor is widely applicable in industrial, consumer electronics, and automotive sectors. Explore more Wurth Elektronik capacitors and advanced passive components catalogued at EnvMart for comprehensive solutions.
