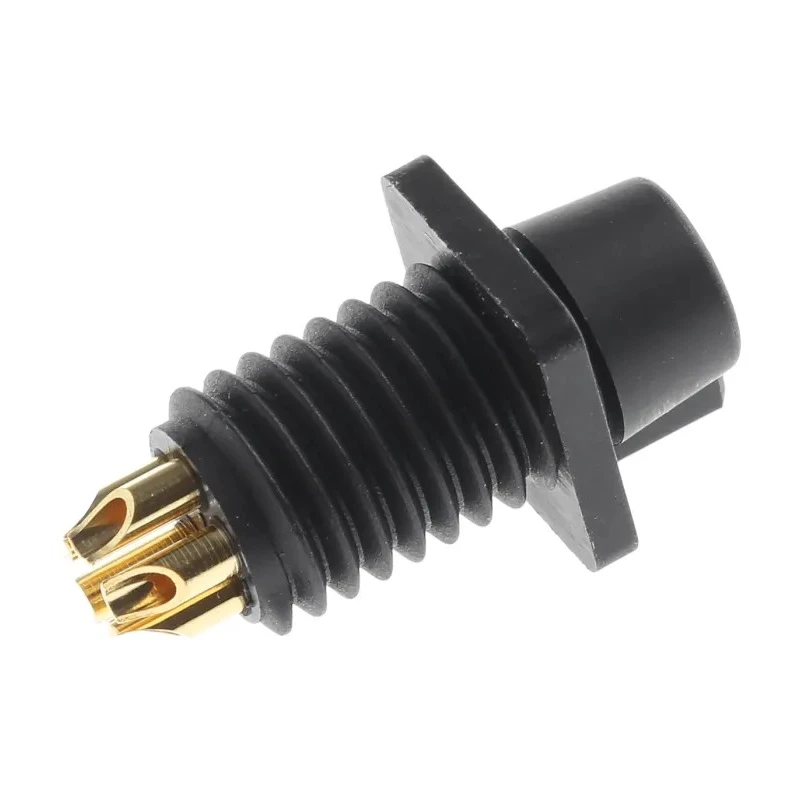

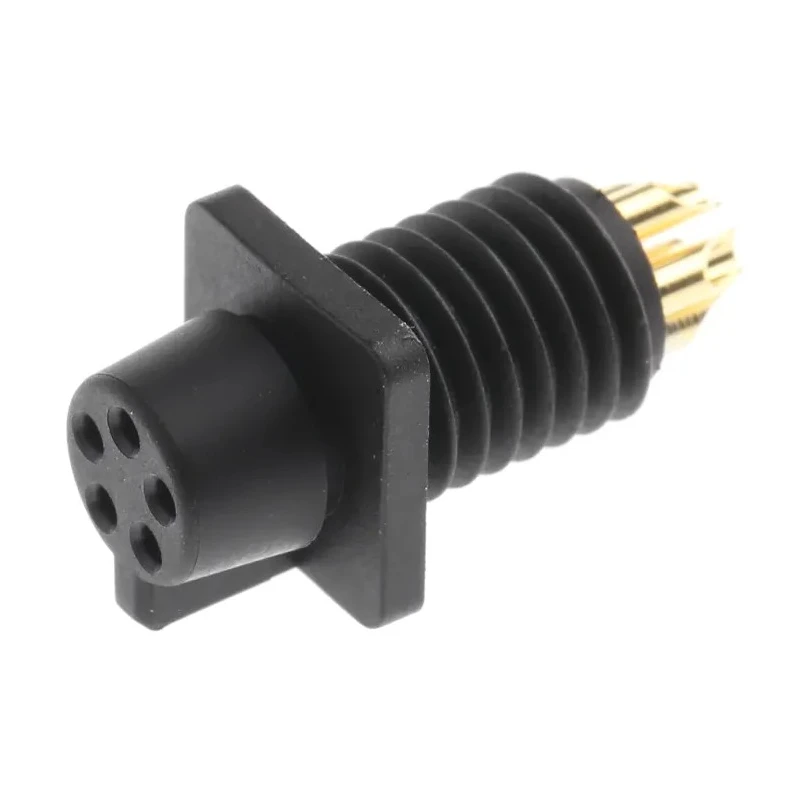

binder Circular Connector, 5 Contacts, Panel Mount, Subminiature Connector, Plug, Female, IP40, 719 Series 09-9792-30-05
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 719 |
| Termination Type | Solder |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Shell Size | 6.4 mm |
| Mating Type | Threaded |
| Connector Size | Subminiature |
| Plug/Socket | Plug |
Key Features
- Designed for panel mount installation with a snap-in locking system for secure connection.
- Subminiature size with 5 gold-plated brass contacts providing reliable electrical performance.
- Rated for 60V operation and 3A current handling capacity.
- Plug with female contacts oriented straight with threaded mating type.
- Housing made of durable polyamide material providing IP40 ingress protection.
- Operating temperature range from -25°C to 70°C suitable for diverse environments.
- Solder termination supports wire up to 0.25mm² ensuring secure and stable connections.
- Compact 6.4 mm shell size suitable for instrumentation and micro electronics applications.
Product Description
binder 09-9792-30-05 is a high-quality industrial circular connector designed for panel mount applications. This subminiature connector features 5 gold-plated brass female contacts enclosed within a durable polyamide housing that offers IP40 protection. It is part of the 719 Series known for compact size and reliability.
The connector supports a voltage rating of 60V and a current rating of 3A, making it suitable for sensitive instrumentation and micro electronic devices. Its straight orientation and threaded mating system ensure secure and precise connections in industrial environments.
With an operating temperature range from -25°C to 70°C, this connector maintains performance in varied conditions. The solder termination accepts up to 0.25mm² wire, facilitating easy and dependable wiring. The 6.4 mm shell size keeps the connector compact for tight spaces.
The snap-in locking system protects connections and simplifies assembly. The plug design with female contacts accommodates a range of panel mount setups, emphasizing versatility and quick installation.
Panel mount with snap-in locking system for robust connection. Subminiature 5-contact configuration with gold plated brass contacts. Voltage rating 60V and current handling of 3A for reliable electrical performance. Straight orientation and threaded mating type for stable connection.
IP40 rated polyamide housing for protection against ingress. Operating temperature from -25°C to 70°C for diverse application environments. Solder termination suitable for 0.25mm² wire cross-section. Compact 6.4 mm shell size fitting instrumentation and electronics.
This binder 719 Series circular connector is ideal for industrial, electronic instrumentation, manufacturing, and laboratory uses where reliable, compact, and secure panel mounted connections are critical. The robust construction and standardized form factor allow it to integrate easily into existing systems requiring subminiature connectors.
Explore more binder industrial connectors and accessories within EnvMart’s electronic components category for a complete range of connection solutions.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 60V and a current handling capacity of 3A.
It features a solder termination type that supports wire up to 0.25mm².
The connector has an IP40 ingress protection rating, which provides a level of protection against solid objects.
The operating temperature range is from -25°C to 70°C, making it suitable for diverse environments.
This connector features 5 gold-plated brass female contacts.
The shell size of this model is 6.4 mm, making it compact for instrumentation and microelectronics applications.
It is designed for panel mount installation with a snap-in locking system for secure connection.
The housing is made of durable polyamide material, while the contacts are made of brass with gold plating.
The contacts are oriented straight and utilize a threaded mating type for stable connections.
It is suitable for industrial, electronic instrumentation, manufacturing, and laboratory applications requiring reliable panel-mounted connections.
The binder 09-9792-30-05 is manufactured in Germany.
