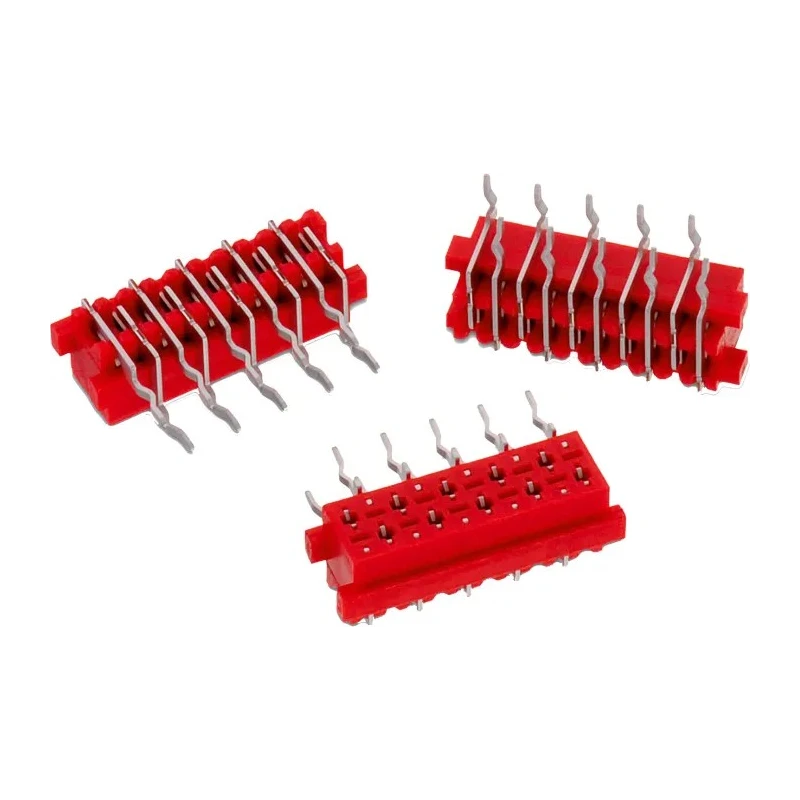

Wurth Elektronik WR-MM Series Right Angle Through Hole PCB Header, 24 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 690368182472
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | WR-MM |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS, UL E323964 |
| Contact Plating | Matt Tin over Nickel |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
Key Features
- The connector features a shrouded design ensuring secure mating and protection.
- Constructed with polybutylene terephthalate housing, providing durability and flame resistance.
- Rated for 1.5 A current and 250 V voltage handling capabilities.
- Comprises two rows of female phosphor bronze contacts plated with matt tin over nickel for reliable conductivity.
- Operates effectively within temperatures from -40°C to +105°C.
- Mount type is through hole suitable for PCB assembly.
- Tail pin length measures 2.9 mm to aid soldering reliability.
- Complies with RoHS and UL E323964 standards ensuring quality and safety.
Product Description
Wurth Elektronik 690368182472 WR-MM Series Right Angle Through Hole PCB Header is engineered for precise wire-to-board connection requirements in electronics manufacturing. Featuring a right angle orientation, this connector provides a reliable and compact interface for electronic circuit boards.
The shrouded housing is made of polybutylene terephthalate with UL94 V-0 flammability rating, offering high resistance against heat and mechanical stress. The phosphor bronze female contacts are plated with matt tin over nickel, assuring excellent electrical performance and corrosion resistance.
This connector supports 24 contacts arranged in 2 rows with a standard 2.54 mm pitch, facilitating high-density PCB connections. Rated for 1.5 A current capacity and 250 V voltage, it operates in a temperature range from -40°C to +105°C, making it suitable for a variety of industrial and commercial electronic applications.
The through-hole mount type eases PCB assembly processes while the 2.9 mm tail pin length enhances solder joint stability. Compliance with RoHS and UL standards (cULus approval included) guarantees adherence to international safety and environmental requirements.
The connector features a shrouded design ensuring secure mating and protection. Constructed with polybutylene terephthalate housing, providing durability and flame resistance. Rated for 1.5 A current and 250 V voltage handling capabilities.
Comprises two rows of female phosphor bronze contacts plated with matt tin over nickel for reliable conductivity. Operates effectively within temperatures from -40°C to +105°C. Mount type is through hole suitable for PCB assembly.
Tail pin length measures 2.9 mm to aid soldering reliability. Complies with RoHS and UL E323964 standards ensuring quality and safety. Manufactured in China with cULus approval.
This PCB Header is widely used in electronic manufacturing, including industrial control systems, automotive electronics, communication devices, and computing equipment. Its robust design and certified performance make it an essential component for reliable circuit board connections.
Explore more high-quality PCB connectors and electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1.5 A and a voltage of 250 V.
It features a pitch of 2.54 mm and comprises 24 contacts arranged in 2 rows.
The housing is made from polybutylene terephthalate, and the contacts are phosphor bronze plated with matt tin over nickel.
It operates effectively within a temperature range from -40°C to +105°C.
This connector uses a through hole mount type suitable for PCB assembly.
The tail pin length measures 2.9 mm, which aids in soldering reliability.
It complies with RoHS and UL E323964 standards, ensuring quality and safety.
The connector features a right angle orientation, providing a compact interface for circuit boards.
It utilizes a solder termination type for secure connections.
This model is designed for wire-to-board connections, facilitating effective integration in electronic circuits.
The country of origin for this connector is China.
It is widely used in electronic manufacturing, including industrial control systems, automotive electronics, communication devices, and computing equipment.
