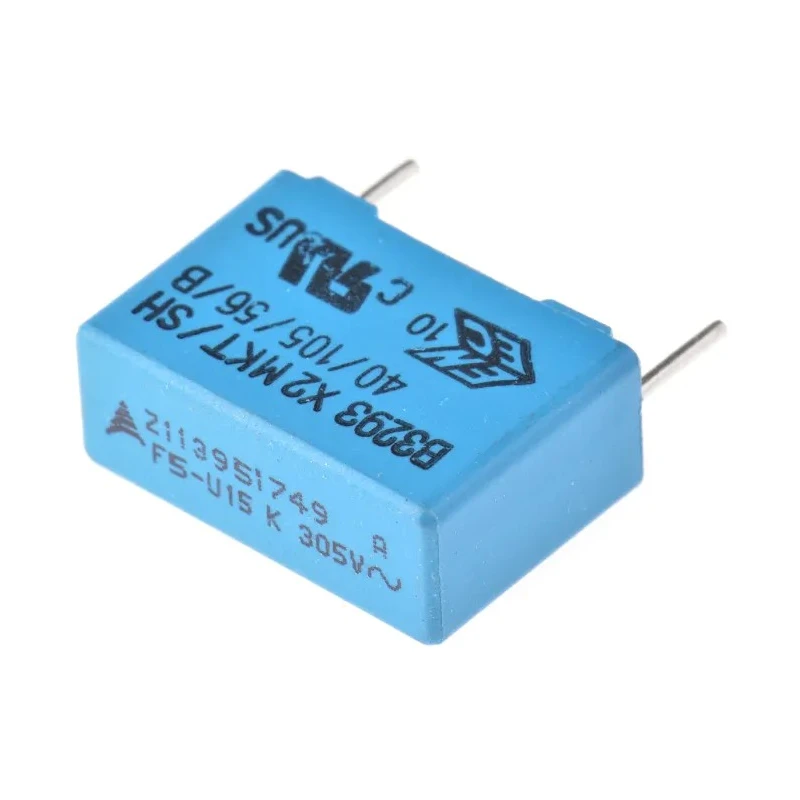

TDK B3293 Film Capacitor 150 nF 305V AC 305V DC Through Hole 2 Pin Pitch 15mm B32932A3154K000

TDK B3293 Film Capacitor B32932A3154K000 is a high-quality metallised polyester film capacitor designed for through-hole mounting in electronic circuits. It provides a capacitance of 150 nF with a rated AC voltage of 305V and DC voltage of 305V, suitable for various industrial and commercial electrical applications.

The capacitor series features an internal series connection and is encased in a flame-retardant plastic case with epoxy resin sealing to ensure safety and durability. Its X2 suppression class rating allows for reliable operation when placed in series with mains supply, offering protection and noise suppression.

Its compact dimensions of 18 mm length, 7 mm width, and 12.5 mm height, combined with a 15 mm lead pitch and 0.8 mm lead diameter, make this capacitor easy to integrate onto standard printed circuit boards (PCBs) using through-hole technology.

Designed to withstand maximum operating temperatures of up to 105°C and certified to automotive quality standard AEC-Q200 Rev D, this capacitor is suitable for use in severe ambient conditions, capacitive power supplies, energy meters, and other demanding electronic systems.

Additional certifications including RoHS compliance and UL approval validate its environmental safety and performance standards. Its high stability capacitance value ensures consistent performance in sensitive electronic circuits.

This capacitor features metallised polyester film construction suitable for high stability applications. It has a lead pitch of 15 mm to fit standard PCB layouts. Designed for high ambient temperature up to 105°C ensuring reliability.

Capacitor body measures 18 mm length x 7 mm width x 12.5 mm height. Flame-retardant plastic case with epoxy resin sealing provides safety in electrical circuits. X2 suppression class rating makes it compliant for connection across the mains supply.

It meets automotive standard AEC-Q200 Rev D for quality and environmental robustness. RoHS and UL approvals underline environmental and safety compliance. Pin diameter is 0.8 mm for secure mechanical and electrical connection.

Used extensively in power supplies, energy meters, and capacitive power applications.

This capacitor is ideal for applications in industrial, electronics manufacturing, power supply systems, HVAC controls, automotive electronics, and energy metering devices. Its reliable performance helps in noise reduction, power factor correction, and transient suppression in these environments.
