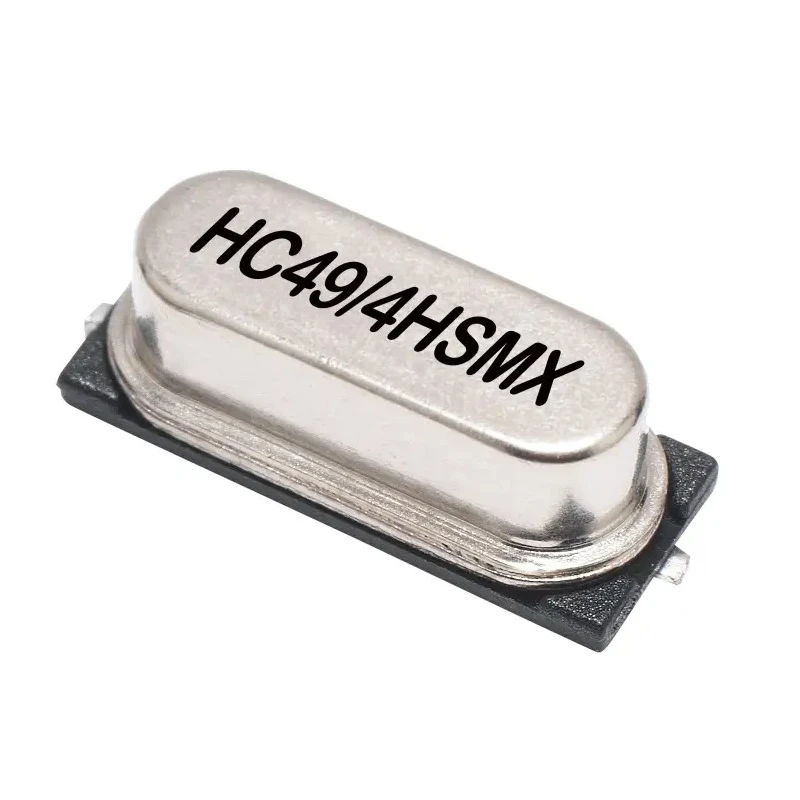

IQD 8 MHz Crystal Unit ±30 ppm SMT 4-Pin 13.4 mm x 4.9 mm LFXTAL029914

IQD LFXTAL029914 is an 8 MHz crystal unit designed for high precision electronic applications requiring stable oscillation frequency. This SMT 4-pin crystal is resistance welded and hermetically sealed with glass to metal seals, ensuring durability and longevity. The plastic former with gull wing mount style makes it ideal for surface mount technology (SMT) PCB assembly.

The frequency tolerance of ±30 ppm measured at 25°C ±2°C allows for consistent frequency accuracy, critical in timing circuits, communication devices, and embedded systems. The unit supports a load capacitance of 16 pF and operates within a broad temperature range from -40°C to 85°C, making it suitable for both industrial and commercial electronic applications.

With a compact form factor of 13.4 mm length and 4.9 mm width, this crystal unit consumes minimal PCB area while maintaining performance. The series resistance of 40 ohms optimizes energy consumption during oscillation. Compliance with RoHS 2011, REACH, and EU standards ensures environmental safety and regulatory conformance.

Standard frequency at 8 MHz for precision timing. Small footprint SMT package with 4 pins. Hermetically sealed glass to metal leads for durability. Wide operating temperature from -40°C to 85°C. Frequency stability within ±30 ppm tolerance.

16 pF load capacitance for circuit compatibility. Series resistance of 40Ω for efficient oscillations. Bulk packaging for industrial scale operations.

This crystal unit is ideal for applications in industrial electronics, telecommunications, computing, consumer electronics, and instrumentation. Its reliable performance under harsh temperature conditions and compact design make it a versatile and dependable component for oscillators and timing circuits.
