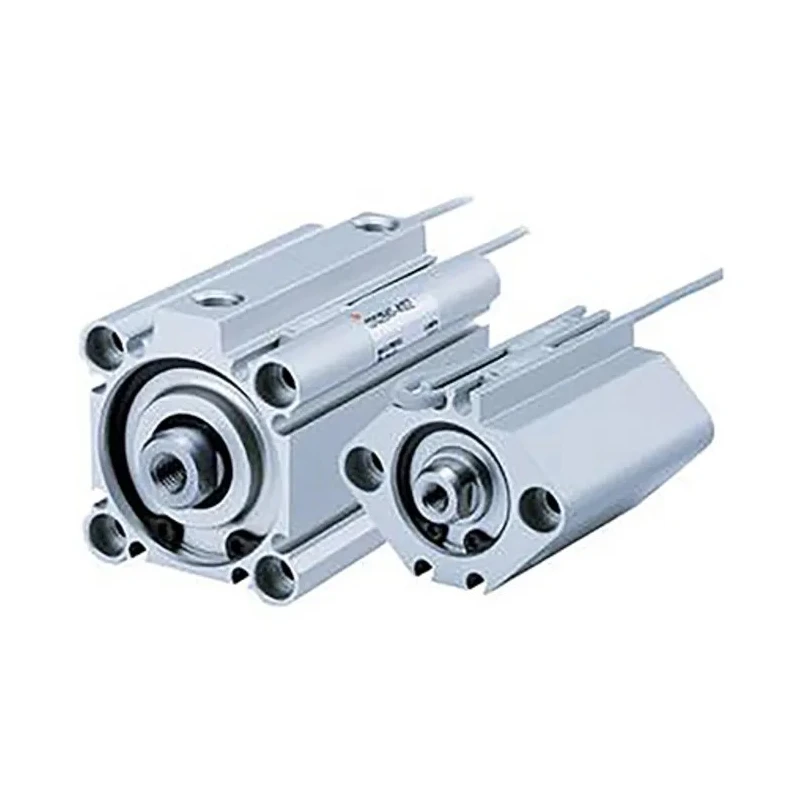

SMC Pneumatic Compact Cylinder 12mm Bore, 10mm Stroke, Double Acting, Aluminium Body CDQ2B12-10DZ

SMC CDQ2B12-10DZ Pneumatic Compact Cylinder offers a robust and efficient pneumatic solution with a 12mm bore diameter and 10mm stroke length. Featuring a high-quality aluminium alloy body, this compact cylinder is designed for reliable double acting operation and single rod non-rotation, making it suitable for precision engineering and automation tasks.

The cylinder's through hole mounting type allows versatile and secure installation in various industrial settings including mechanical, fluid power, and automated manufacturing environments. It supports a maximum operating pressure of 1 MPa and can sustain piston speeds up to 500 mm/s, accommodating dynamic pneumatic control systems.

Operating within a temperature range from -10°C to 60°C, it withstands diverse working conditions including industrial HVAC, laboratory automation, and manufacturing lines. The metric female piston rod thread allows compatibility with common pneumatic fittings and ensures secure mechanical coupling.

SMC's innovative design includes automatic switch mounting grooves on all four surfaces, replacing traditional mounting rails to prevent switch projection and enhance workplace safety. This design feature improves ease of installation and maintenance during operational cycles.

With compact dimensions of 41.5mm length, 27.5mm height, and 33mm width, the cylinder fits into tight spaces without compromising performance. Weighing approximately 506 grams, it balances lightweight design with durability essential for pneumatic and industrial applications.

Compact aluminium alloy body provides durability and lightweight performance. Double acting, single rod, non-rotating design ensures precise control. Through hole mount type for flexible, secure installation options. Supports maximum 1 MPa operating pressure and piston speed of 500 mm/s.

Operating temperature range from -10°C to 60°C for various environments. Metric female piston rod thread standard for industry compatibility. Auto switch mounting grooves enhance safety and ease of operation. Compact dimensions suit space-constrained industrial setups.

This pneumatic compact cylinder is ideal for industrial automation, manufacturing lines, fluid power systems, laboratory automation, and HVAC equipment. It combines robust construction with compact design to meet diverse pneumatic actuation needs at high performance and reliability.
