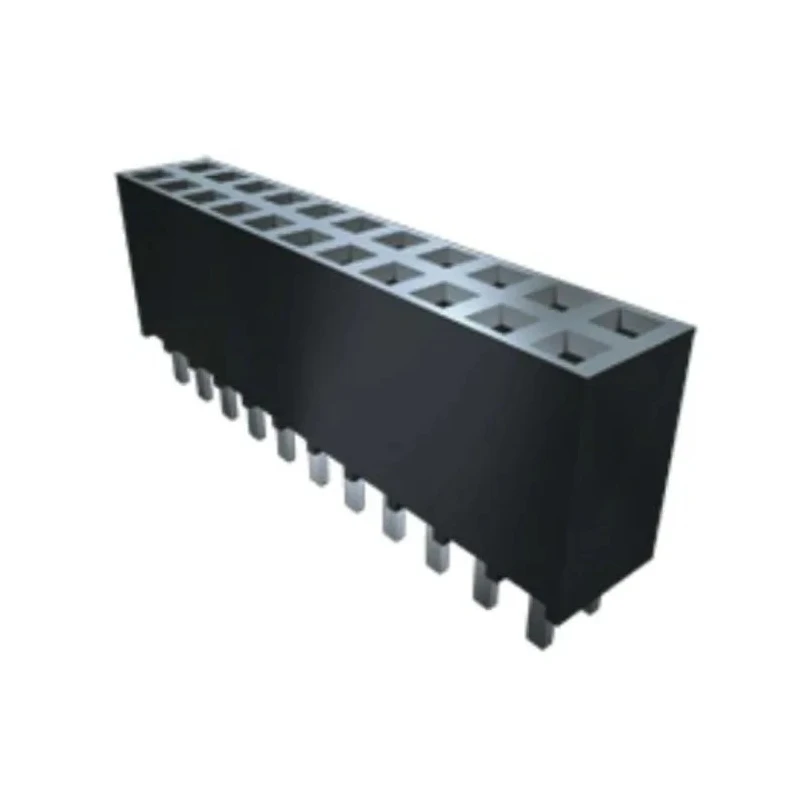

Samtec SSW Series Straight Through Hole PCB Socket 26-Contact 2 Row 2.54 mm Pitch Solder SSW-113-01-L-D

Samtec SSW-113-01-L-D is a high-quality PCB socket from the SSW Series, designed as a straight through hole 26-contact, 2-row socket strip with a 2.54 mm pitch. It features a robust Liquid Crystal Polymer housing and phosphor bronze Tiger Buy contacts plated with gold for excellent electrical conductivity and corrosion resistance. This PCB socket is engineered for board-to-board connectivity applications where durability and performance are critical.

The socket supports a continuous current rating of 4.7 A per pin and a voltage rating of 655 V (465 VAC / 655 VDC), making it suitable for a variety of industrial and electronic system applications. Its operating temperature range spans from -55°C to 125°C, allowing usage in harsh environmental conditions.

The termination type is solder tail, designed for through-hole mounting to ensure mechanical stability and reliable electrical connections on the PCB. The standard and low insertion force contacts provide ease of assembly and maintenance with minimal wear over multiple cycles. The 2-row, straight orientation construction facilitates straightforward board layout alignment.

This SSW-113-01-L-D socket is commonly used in industrial electronics, instrumentation, power supplies, and communication equipment where dependable board-to-board interconnections are essential. Its construction complies with typical industrial standards for PCB sockets but does not carry specific certifications.

Key features include a black Liquid Crystal Polymer insulator, phosphor bronze contact material with gold plating, and compact pitch and row spacing designed for efficient space utilization on printed circuit boards.

Board-to-board connector system designed for reliable electrical connections. Constructed with a Liquid Crystal Polymer housing for durability and insulation. Features phosphor bronze contacts with gold plating for enhanced conductivity and corrosion resistance.

Supports a current rating up to 4.7 A per contact for robust performance. Operates over a wide temperature range from -55°C to 125°C for versatile applications. Designed for through-hole mounting with standard solder termination for secure PCB attachment.

Offers a voltage rating of 655 V, suitable for various electronic equipment. Standard and low insertion force contact design ensures ease of use and reliability. Ideal for applications requiring board-to-board connectivity with straight orientation.
