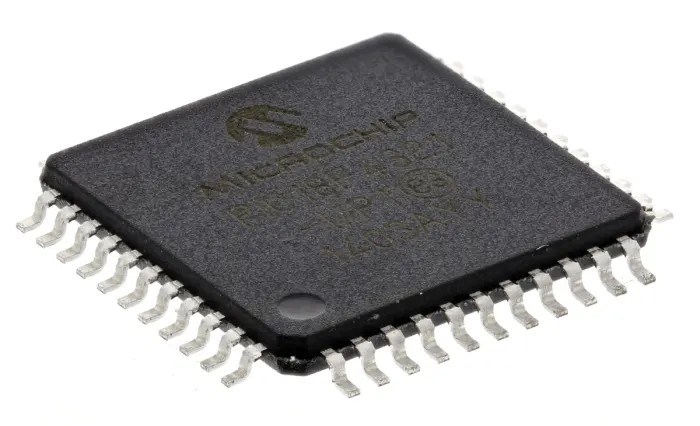

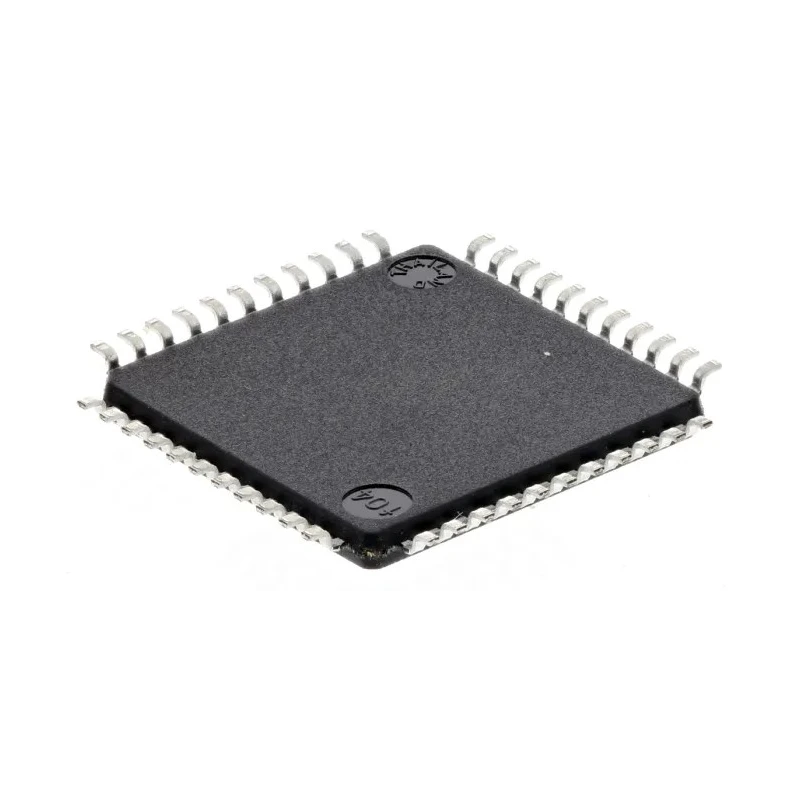

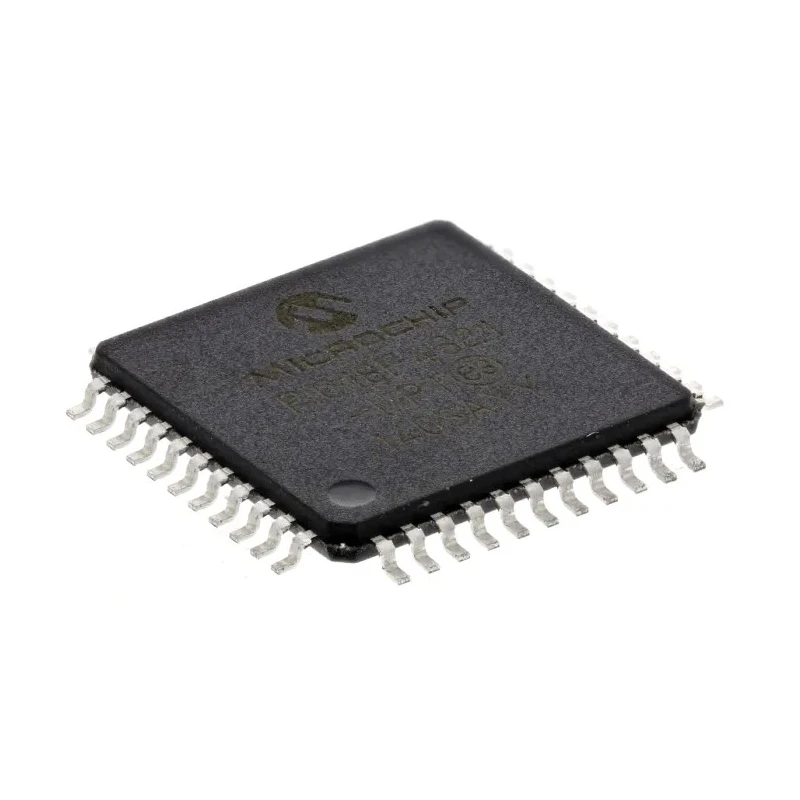

Microchip 8-bit PIC Microcontroller PIC18F4321, 40MHz, 8kB Flash, 44-Pin TQFP

Microchip PIC18F4321 is a high-performance 8-bit microcontroller built on the robust PIC18 architecture, tailored for demanding industrial, laboratory, and embedded system applications. This device features a 40MHz maximum clock speed, ensuring rapid processing for real-time control tasks and advanced embedded functions.

With 8kB of Flash program memory and 512 bytes of RAM, the PIC18F4321 enables efficient storage of program code and data. The microcontroller is housed in a 44-Pin TQFP surface-mount package, making it suitable for integration onto standard PCBs and allowing for compact system design.

Offering 36 programmable I/O pins, this microcontroller supports extensive peripheral interfacing for motors, sensors, displays, and communication modules. It includes 13 10-bit ADC channels, enabling high-resolution analog input measurements essential for process automation, instrumentation, and control systems. Two analogue comparators further expand signal processing capabilities.

Designed with a PIC18 core using a RISC instruction set, the microcontroller delivers up to 77 instructions and provides a 31-level hardware stack, which enhances code structure and robustness. The internal configurable oscillator operates with ±1% accuracy, offering frequency flexibility from 8MHz to 31kHz for precise timing and power management.

Key integrated features include nanoWatt XLP technology for reduced power consumption, making the device ideal for battery-operated equipment and remote sensors. Power-On Reset, Brown-Out Reset, and extended Watchdog Timer contribute to reliable operation in harsh environments.

The PIC18F4321 supports advanced peripherals including an enhanced Capture, Compare, and PWM module, serial port options (Master Synchronous Serial Port with SPI and I2C, Enhanced Universal Synchronous Asynchronous Receiver Transmitter), and multiple timers (one 8-bit, three 16-bit), facilitating industrial automation, laboratory instrumentation, building controls, and commercial embedded solutions.

Operating voltage ranges from 2V to 5.5V, accommodating various industrial and embedded power systems, while the wide operating temperature range (-40°C to 85°C) ensures reliability across manufacturing, construction, and process control environments. Mounted using surface technology, the microcontroller fits seamlessly into automated assembly processes.

Practical applications span industrial automation, motor control, sensor integration, data acquisition, scientific instrumentation, environmental monitoring, and automotive systems. The device is widely used in HVAC controls, water treatment plant controllers, robotics, and commercial electronics.
