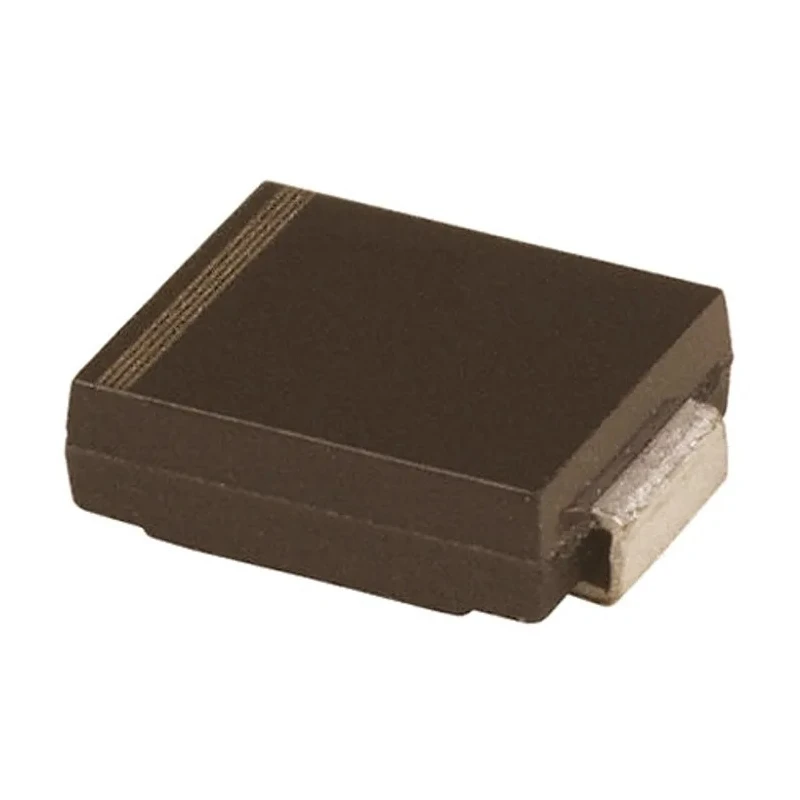

DiodesZetex 1-Element Uni-Directional TVS Diode Surface Mount 1.5 kW 2-Pin SMC SMCJ36A-13-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 2.3mm |
| Length | 7.11mm |
| Model | SMCJ36A-13-F |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | SMCJ |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 58.1V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 40V |
| Maximum Reverse Stand-off Voltage Vwm | 36V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 25.8A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- This diode features a single-element configuration for precise voltage protection.
- Operates with a minimum breakdown voltage of 40 V and maximum reverse stand-off voltage of 36 V.
- Clamping voltage is rated at 58.1 V during transient events.
- Effective temperature operation ranges from -55°C to 150°C for reliability in harsh environments.
- Maximum peak pulse current capacity is 25.8 A, offering robust transient voltage handling.
- Surface mount mount type for automated assembly processes.
- Maximum reverse leakage current is only 5 μA ensuring low power loss during normal operation.
- Non-automotive standard part suited for industrial and electronics component applications.
Product Description
DiodesZetex model SMCJ36A-13-F is a 1-element uni-directional transient voltage suppression (TVS) diode designed to protect sensitive electronic components from voltage spikes and transient surges. Featuring a compact surface mount SMC package and a 2-pin configuration, this device supports peak pulse power dissipation up to 1.5 kW.
It operates reliably at a minimum breakdown voltage of 40 V and provides a maximum reverse stand-off voltage of 36 V, with a typical clamping voltage of 58.1 V to efficiently clamp transient surges. The diode is optimized to handle peak pulse currents up to 25.8 A and maintains low reverse leakage current of 5 μA, ensuring minimal power waste in steady state.
Designed for operation in a wide temperature range from -55°C up to 150°C and conforming to industrial requirements without automotive certification, the SMCJ36A-13-F combines robust electrical performance with a compact footprint: 7.11 mm length, 6.22 mm width, and 2.3 mm height.
This TVS diode is ideal for use in power supplies, switching power applications, telecommunications, and electronic equipment protective circuits to guard against damaging voltage transients.
Single-element uni-directional diode configuration for targeted surge absorption. Surface mount SMC package supports efficient PCB assembly and integration. 1.5 kW peak pulse power dissipation capabilities suitable for demanding transient suppression.
Broad operating temperature range enables reliability in diverse environments. Compact dimensions help save board space in dense electronic designs. Very low leakage current improves overall system power efficiency. Robust maximum peak pulse current protects against high transient peaks.
Non-automotive standard for general industrial and electronic component protection.
This DiodesZetex TVS diode provides effective protection for industrial, telecommunications, and consumer electronics systems. It contributes to increased system longevity and operational reliability by suppressing potentially damaging transient voltages.
Explore the Semiconductor category at EnvMart for more TVS Diode options and related electronic components designed for transient voltage protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a peak pulse power dissipation capability of 1.5 kW, making it suitable for demanding transient suppression applications.
The diode operates effectively within a temperature range of -55°C to 150°C, ensuring reliability in various environments.
The clamping voltage is rated at 58.1 V during transient events, which helps in efficiently clamping voltage surges.
This model has dimensions of 7.11 mm in length, 6.22 mm in width, and 2.3 mm in height, allowing for compact PCB designs.
It operates with a minimum breakdown voltage of 40 V, providing essential protection against voltage spikes.
The SMCJ36A-13-F features a single-element configuration, which is designed for targeted surge absorption.
The maximum reverse stand-off voltage is rated at 36 V, which is critical for its protective function.
It can handle a maximum peak pulse current of 25.8 A, providing robust protection against high transient peaks.
This model uses a surface mount type, which supports efficient automated assembly processes.
The maximum reverse leakage current is only 5 μA, ensuring low power loss during normal operation.
It is designed for use in power supplies, telecommunications, and electronic equipment protective circuits to guard against damaging voltage transients.
The SMCJ36A-13-F is manufactured in India, contributing to its availability in the market.
