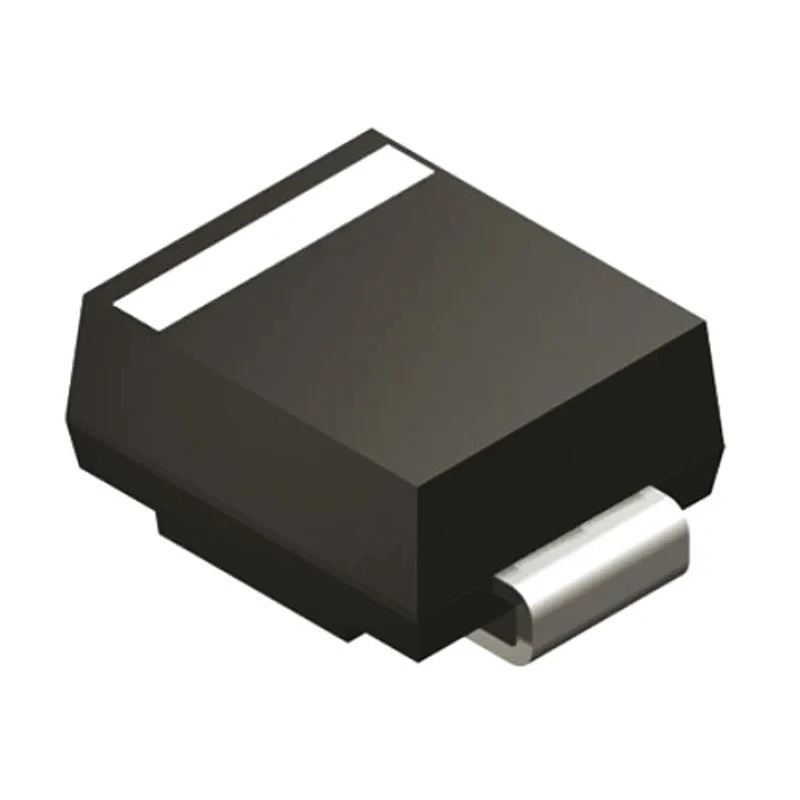

DiodesZetex Bi-Directional 600W 2-Pin Surface Mount TVS Diode DO-214 SMBJ24CA-13-F

DiodesZetex SMBJ24CA-13-F is a 1-element bi-directional transient voltage suppression (TVS) diode rated for 600W peak pulse power dissipation. It features a DO-214 surface mount package with 2 pins, measuring 4.57mm in length, 3.94mm in width, and 2.42mm in height, optimized for PCB integration.

This TVS diode offers a minimum breakdown voltage of 26.7V and a maximum reverse stand-off voltage of 24V, with a clamping voltage of 38.9V. It can handle transient peak pulse currents up to 15.4A, making it highly effective in protecting electronic circuits against voltage surges and spikes caused by lightning, inductive load switching, and electrostatic discharge.

Designed to operate across a wide temperature range from -55°C to 150°C, this diode provides robust and reliable protection in demanding industrial, telecommunications, automotive, and power supply applications. The device has a low maximum reverse leakage current of 5μA, contributing to energy efficiency in standby conditions.

The SMBJ24CA-13-F does not include specific ESD protection or automotive standard certifications but is part of the trusted SMBJ series by DiodesZetex. Its compact surface mount design facilitates automated assembly processes and space-saving in compact electronic designs.

Typical applications include transient voltage protection for power lines, data lines, and sensitive electronic components in industrial machinery, communication infrastructure, and consumer electronics.

The diode has a single element configuration optimized for bi-directional voltage clamping. Minimum breakdown voltage is 26.7V with a maximum reverse standoff voltage of 24V. Clamping voltage is 38.9V, effectively limiting voltage spikes to protect sensitive circuitry.

It supports a maximum peak pulse current of 15.4A during transient events. Operating temperature range spans from -55°C to 150°C for reliable performance in harsh environments. The compact package dimensions are 4.57mm length, 3.94mm width, and 2.42mm height.

The surface mount DO-214 package enables easy PCB assembly for industrial and electronic applications. This diode series is ideal for protecting power supplies, telecommunications, and automotive electronics. No ESD protection or automotive certification is provided with this device.

The maximum reverse leakage current is 5μA, ensuring low standby power consumption. Explore more semiconductor and TVS Diode products with DiodesZetex at EnvMart to find the ideal transient voltage suppression device for your application.
