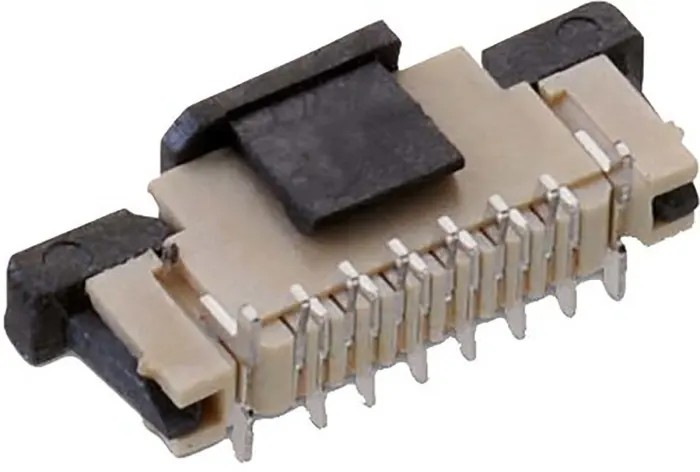

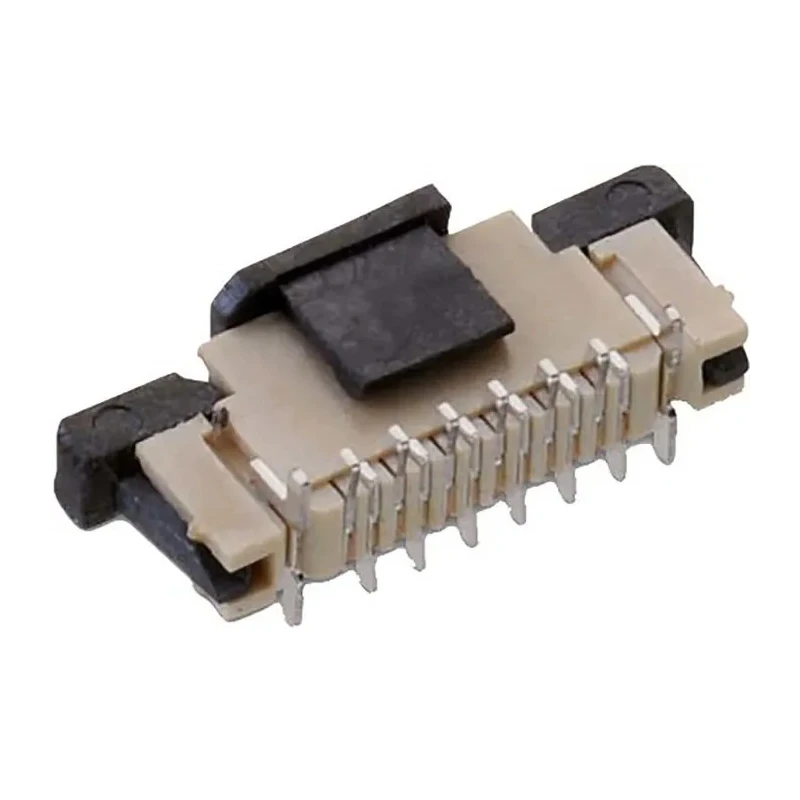

Wurth Elektronik 14 Way Vertical Male FPC Connector, Solder Termination, 0.5 mm Pitch, 50 V, 500 mA, ZIF 687314124422
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | 687 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Connector Gender | Male |
| Insertion Force | ZIF |
Key Features
- Designed with 14 contact pins for robust electrical connections.
- Uses phosphor bronze contacts plated with tin over nickel for durability.
- Supports a current rating of 500 mA and operating voltage of 50 V.
- Surface mount with zero insertion force (ZIF) for easy assembly.
- Constructed from liquid crystal polymer housing for high temperature tolerance.
- Operates reliably between -25°C and 85°C ambient temperatures.
- Features a vertical orientation and locking mechanism for secure attachment.
- Connector is male gender with solder termination type for PCB integration.
Product Description
Wurth Elektronik 687314124422 is a 14 Way Vertical Male FPC Connector designed for precision and reliable electrical connections in flexible printed circuits. This connector features a 0.5 mm pitch and vertical orientation, ideal for high-density SMT applications requiring solder termination.
The connector contacts are made of phosphor bronze with a tin over nickel plating, ensuring excellent conductivity and corrosion resistance. The housing material is liquid crystal polymer, providing robust mechanical strength and stability over wide temperature ranges from -25°C to 85°C, suitable for demanding electronic environments.
It supports a working voltage of 50 V and a current rating of 500 mA, making it suitable for low power electronic signal connections. The zero insertion force (ZIF) design reduces contact wear during assembly and maintenance. Additionally, it includes a locking mechanism that enhances connector security on PCBs.
This product is manufactured in China and belongs to the Wurth Elektronik 687 series of FPC Connectors, known for precision engineering in electronics manufacturing, including industrial, laboratory, and commercial electronic equipment applications.
Reliable 14 contact phosphor bronze pins with tin over nickel plating. ZIF surface mount design for easy, damage-free insertion. Robust liquid crystal polymer housing for durability and heat resistance. Operating temperature range from -25°C to 85°C for versatile use.
Vertical orientation with locking for secure mechanical connection. Rated for 50 V and 500 mA applications in flexible printed circuit systems. Male gender connector with solder termination for PCB assembly.
This connector is ideal for manufacturers and engineers designing compact electronic devices requiring reliable, repeatable connections. Browse our extensive Electronics Components category for more Wurth Elektronik connectors and related products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 500 mA, making it suitable for low power electronic signal connections.
The maximum operating temperature is 85°C, allowing it to function reliably in high-temperature environments.
This connector features a solder termination type for integration with printed circuit boards (PCBs).
It has 14 contact pins designed for robust electrical connections in flexible printed circuits.
The contacts are made of phosphor bronze with a tin over nickel plating, while the housing is constructed from liquid crystal polymer.
It is rated for a maximum operating voltage of 50 V, suitable for various electronic applications.
This connector features a zero insertion force (ZIF) design, which allows for easy and damage-free insertion.
The connector is designed with a vertical orientation, which is ideal for high-density surface mount technology (SMT) applications.
The minimum operating temperature is -25°C, making it suitable for a range of ambient conditions.
It includes a locking mechanism that enhances security on printed circuit boards, ensuring a stable connection.
This connector is manufactured in China, as indicated by its country of origin.
It belongs to the Wurth Elektronik 687 series of FPC connectors, known for precision engineering in electronics manufacturing.
