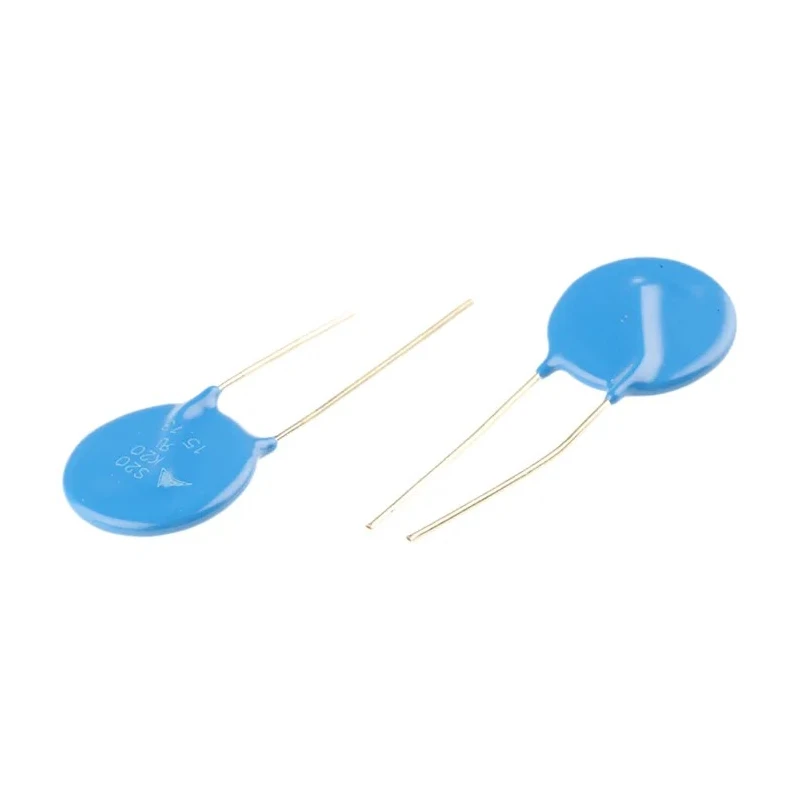

TDK Standard Metal Oxide Varistor 13 nF Capacitance 20A Clamping 65 V B72220S0200K101
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 21.5mm |
| Brand | TDK |
| THICKNESS | 5.1mm |
| Model | B72220S0200K101 |
| Packaging | Bulk |
| Series | Standard |
| Energy Rating | 18J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 13nF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 26V dc |
| Standards/Approvals | VDE, UL, IEC, CSA, CECC |
| Lead Pitch | 10mm |
| Maximum AC Voltage | 20V ac |
| Clamping Voltage VC | 65V |
| Clamping Current | 20A |
| Maximum Surge Current | 2kA |
| Varistor Voltage | 33 V |
Key Features
- Rated for a varistor voltage of 33 V to protect circuits.
- Capacitance of 13 nF ensures effective transient suppression.
- Maximum surge current capability of 2 kA for high energy spikes.
- Operates reliably within temperature range of -40°C to 85°C.
- Epoxy coated ceramic body for enhanced durability.
- Tinned copper wire leads provide reliable electrical connection.
- Complies with VDE, UL, IEC, CSA, and CECC internationally recognized standards.
- Bulk packaging designed for efficient insertion in manufacturing.
Product Description
TDK B72220S0200K101 is a standard metal oxide varistor designed for surge protection in electronic and electrical equipment. It provides effective voltage clamping at 65 V with a varistor voltage of 33 V and is rated for a high clamping current of 20 A, making it suitable for managing transient voltage spikes.
This device features 13 nF capacitance and a maximum surge current capability of 2 kA (8/20 µs waveform), ensuring durability and reliable protection against power surges. Its ceramic body is epoxy coated for enhanced environmental resistance, and it has tinned copper wire leads for robust electrical connection.
The varistor has a diameter of 21.5 mm, thickness of 5.1 mm, and lead pitch of 10 mm, providing a compact and standardized form factor for ease of integration. It operates reliably in a broad temperature range from -40°C to 85°C, suitable for industrial and consumer electronics applications.
The component meets multiple international safety and performance standards such as VDE, UL, IEC, CSA, and CECC, ensuring compliance and quality assurance in high-demand environments.
Rated for a varistor voltage of 33 V to guard sensitive electronics. High capacitance of 13 nF provides effective transient suppression. Maximum surge current rated at 2 kA for heavy-duty applications. Temperature operating range from -40°C to 85°C for versatile use.
Ceramic body with epoxy coating for durability and environmental protection. Tinned copper leads facilitate solid electrical connections. Complies with VDE, UL, IEC, CSA, and CECC standards for safety and performance. Bulk packaging enables efficient manufacturing use.
This metal oxide varistor is well suited for industrial, commercial, and consumer electrical applications requiring reliable surge protection. Its robust construction and standardized dimensions facilitate easy replacement and integration in printed circuit boards and other electronic assemblies.
Explore more high-quality electronic components and Varistors on EnvMart to enhance your project or manufacturing line reliability and efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum surge current capability of this model is 2 kA, which is designed to handle high energy spikes effectively.
This varistor has a capacitance of 13 nF, ensuring effective transient suppression in electrical circuits.
The clamping voltage for this unit is 65 V, providing protection against voltage spikes.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for various environments.
This model has a diameter of 21.5 mm, a thickness of 5.1 mm, and a lead pitch of 10 mm.
It complies with several international standards, including VDE, UL, IEC, CSA, and CECC, ensuring safety and performance.
The varistor is packaged in bulk, which is designed for efficient insertion in manufacturing processes.
The varistor voltage for this unit is rated at 33 V, which helps protect sensitive electronics.
The maximum DC voltage rating for this model is 26 V, ensuring compatibility with various applications.
It features tinned copper wire leads, which provide reliable electrical connections in circuits.
The energy rating for this varistor is 18 J, indicating its capacity to absorb energy from voltage spikes.
This metal oxide varistor is suitable for industrial, commercial, and consumer electrical applications requiring reliable surge protection.
