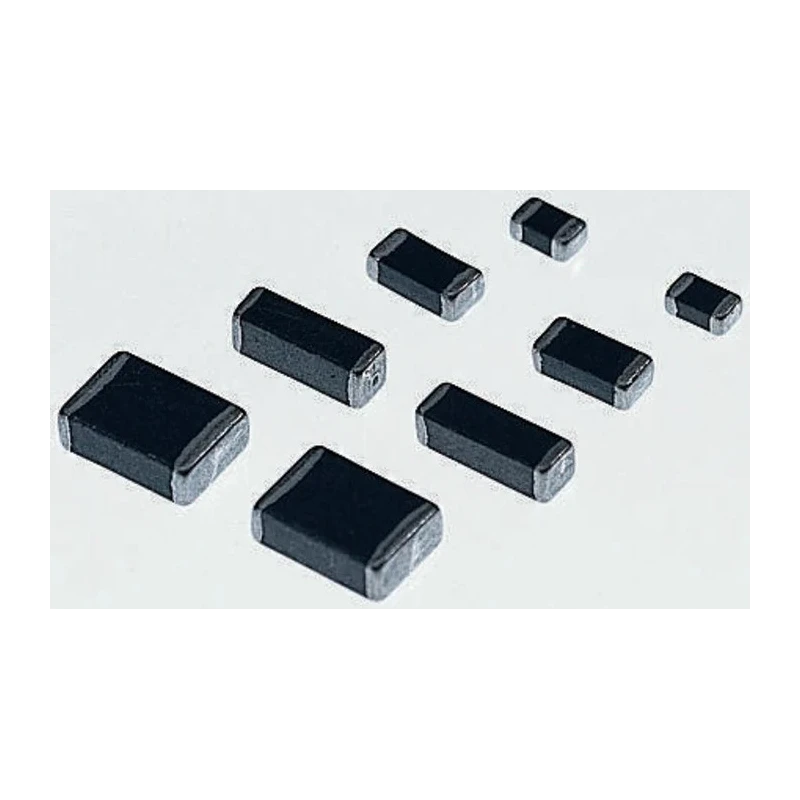

Wurth Elektronik 680nH 1A 0603 Unshielded Multilayer Surface Mount Inductor WE-PMI 74479763168

Wurth Elektronik 74479763168 is a 680nH multilayer surface mount inductor designed for high current and high frequency electronic applications. It features a 0603 package allowing compact footprint on printed circuit boards while offering robust inductance performance with a tolerance of ±20%. The device supports a maximum DC current of 1 ampere, with a maximum DC resistance of 180 milliohms, ensuring low power dissipation during operation.

Constructed with multilayer technology, this inductor delivers reliable inductance stability and a minimum quality factor of 10, suitable for applications requiring efficient energy storage and filtering. It operates reliably over a temperature range from -40°C to 125°C, making it appropriate for demanding industrial, automotive, and commercial environments.

This surface mount inductor is compliant with RoHS regulations and meets the AEC-Q200 automotive standard, guaranteeing quality and environmental compliance in automotive electronics. Its maximum self-resonant frequency of 150MHz supports usage in high switching frequency DC/DC converters and portable electronic devices such as PDAs and digital cameras.

The compact 0603 package with 1.6mm length and 0.8mm height and depth dimensions allows for space-saving PCB designs. Termination style is optimized for surface mount technology (SMT) manufacturing processes, and the product is supplied on tape and reel packaging, facilitating automated assembly and efficient production workflows.

Typical applications include DC/DC converters operating at frequencies above 1MHz, portable consumer electronics, and other high-frequency power management circuits. This product is manufactured in China, maintaining stringent quality controls.

Package size 0603 for compact PCB mounting. Inductance tolerance of ±20% ensures reliable performance. Maximum DC resistance of 180 milliohms minimizes power loss. Operating temperature range from -40°C to 125°C. Maximum self-resonant frequency of 150MHz suitable for high frequency applications.

Inductor constructed with multilayer technology for improved performance. Minimum quality factor of 10 for efficient operation. Compliance with RoHS and AEC-Q200 automotive standards. Surface mount termination style optimized for automated assembly.

Supplied on tape and reel packaging for production efficiency. Explore the range of Wurth Elektronik Surface Mount Inductors on EnvMart for advanced electronics manufacturing solutions.
