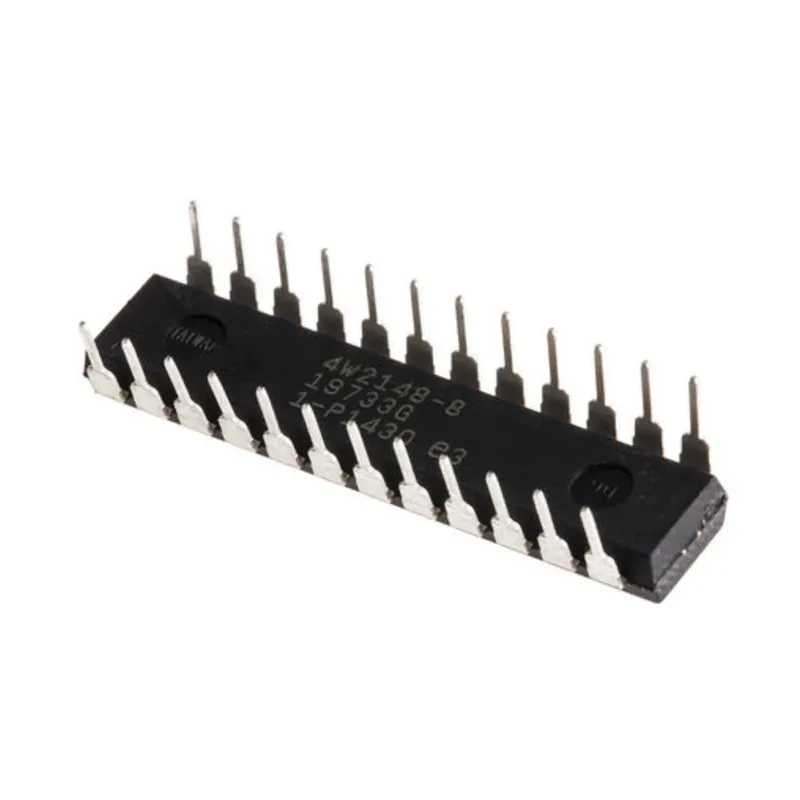

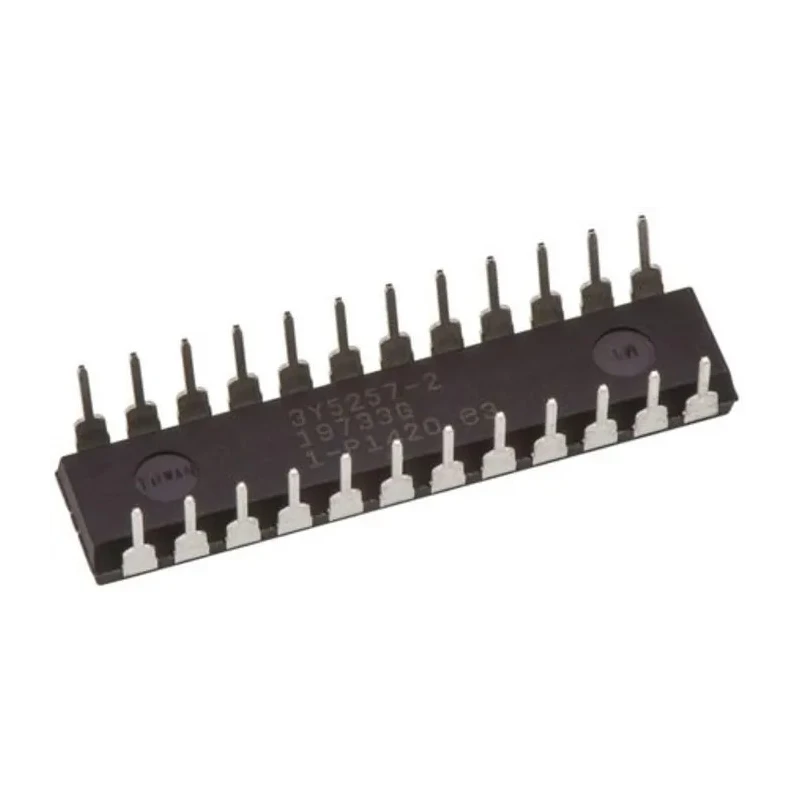

Microchip Simple Programmable Logic Device 350 Gates, 10 Macro Cells, 10 I/O, 50 MHz, PDIP Through Hole ATF22V10CQZ-20PU

Microchip ATF22V10CQZ-20PU is a simple programmable logic device designed for flexible digital logic implementations. Featuring 350 gates and 10 macro cells, this device provides 10 user I/O pins for custom configurations. It operates at a maximum internal frequency of 50 MHz, enabling rapid signal processing in embedded systems.

This SPLD is housed in a PDIP package with 24 pins, designed for through-hole mounting, making it ideal for prototyping and applications that require easy replacement or modification. The device supports both in-system programmability and re-programmability, offering developers the ability to update logic designs without removing the component.

The operating voltage range spans from 4.5 V minimum to 5 V maximum, thereby ensuring stable operation in common digital circuit voltages. Operating temperature ranges from -40°C to 85°C permit use in industrial and commercial environments with varying thermal conditions.

With a maximum propagation delay of 20 ns, this programmable logic device can support time-sensitive logic functions. Its compact physical dimensions, including a length of 32.13 mm and a height of 4.95 mm, help minimize PCB space usage.

This product complies with RoHS environmental standards, confirming its manufacturing with environmentally safe materials. Originating from Thailand, the device adheres to high-quality manufacturing standards.

This device supports in-system programmability and re-programmability for flexible application tuning. It uses a PDIP package with through-hole mounting, suitable for prototyping and through-hole PCB designs. Operating voltage ranges from 4.5 V minimum to 5 V maximum, ensuring reliable performance.

Designed to operate between -40°C to 85°C, suitable for demanding industrial environments. Maximum propagation delay time is 20 ns for fast logic transitions. Compact dimensions with a length of 32.13 mm and height of 4.95 mm enable space-efficient designs.

RoHS compliant, ensuring environmental safety and regulatory adherence.

Microchip programmable logic devices are widely used in industrial automation, embedded system design, digital signal processing, and various electronic applications requiring configurable logic. Environmentally compliant, reliable, and high-performance, this SPLD model is suitable for engineers and professionals aiming to implement customizable logic circuits with ease.
