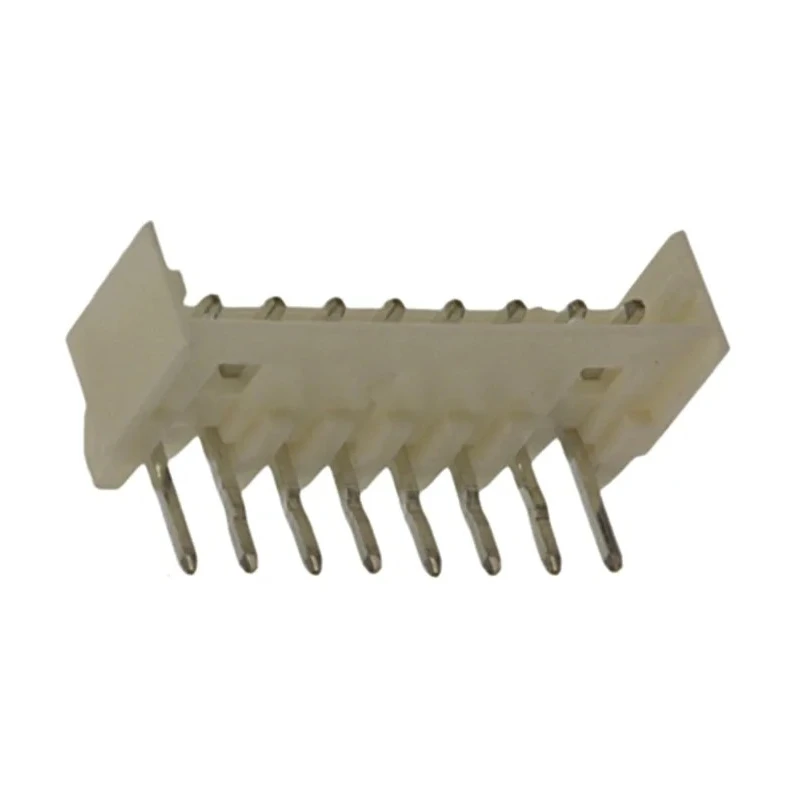

Molex Micro-Latch Series Right Angle Through Hole PCB Header 8 Contact 2 mm Pitch Shrouded 53254-0870
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Micro-Latch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Operates at a current of 2A for reliable power handling.
- Constructed with nylon housing and brass contacts plated with tin for durability.
- Right angle orientation and 1 row configuration support flexible board mounting options.
- Mounts through hole with solder termination type ensuring strong mechanical and electrical connection.
- Wide operating temperature range from -40°C to 105°C for varied industrial environments.
- Compatible with Molex Micro-Latch system providing friction lock for secure mating.
- Contact tail pins length of 3.5mm for stable board insertion.
- Manufactured in Malaysia adhering to quality standards.
Product Description
Molex 53254-0870 is a Micro-Latch Series Right Angle Through Hole PCB Header designed for electronic component interconnection. Featuring 8 contacts arranged in a single row with a 2 mm pitch, this header is perfect for reliable wire-to-board connections.
The housing is made from durable nylon material, and the contacts are brass plated with tin, ensuring excellent conductivity and corrosion resistance. The right angle orientation enables versatile mounting configurations in compact PCB layouts.
With a rated current of 2A and voltage rating of 125V, it supports moderate power applications. The shrouded design protects the connection and allows a friction-based locking mechanism for secure mating with compatible Molex Micro-Latch system connectors.
Durable nylon housing material for strength and insulation. Brass contacts with tin plating ensure conductivity and longevity. Right angle orientation for flexible PCB mounting options. Solder termination type provides secure electrical connectivity.
Wide operating temperature range from -40°C up to 105°C. Shrouded with a three-sided enclosure for protection. Single row with a pitch of 2 mm spacing between pins. Contact tail pin length of 3.5 mm for reliable PCB insertion.
Compatible with Molex Micro-Latch 51065 Series housings via friction lock. Manufactured in Malaysia to ensure quality standards.
This PCB header is suitable for industrial, electrical, and electronic manufacturing applications where reliable, secure, and compact connections are essential. It is widely used in telecommunications, computing equipment, control systems, and embedded electronics.
Explore the Electronics Components category on EnvMart for more high-quality PCB connectors and headers from trusted global brands.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 2A and a voltage rating of 125V, suitable for moderate power applications.
It features a 2 mm pitch and has 8 contacts arranged in a single row configuration.
The housing is made from nylon, while the contacts are brass plated with tin, providing good conductivity and resistance to corrosion.
This unit has a right angle orientation, allowing for flexible mounting options on PCBs.
It operates effectively within a wide temperature range from -40°C to 105°C, accommodating various industrial environments.
The contact tail pins are 3.5 mm in length, ensuring stable insertion into the PCB.
It utilizes a solder termination type, which ensures a secure electrical connection.
Yes, it is compatible with Molex Micro-Latch 51065 Series housings via a friction lock mechanism.
This model is manufactured in Malaysia, adhering to quality standards.
It is suitable for industrial, electrical, and electronic manufacturing applications, commonly used in telecommunications, computing equipment, and control systems.
It is designed for wire-to-board connections, making it ideal for secure interconnections in electronic devices.
The shrouded design provides protection for the connection and facilitates secure mating with compatible connectors, enhancing reliability.
