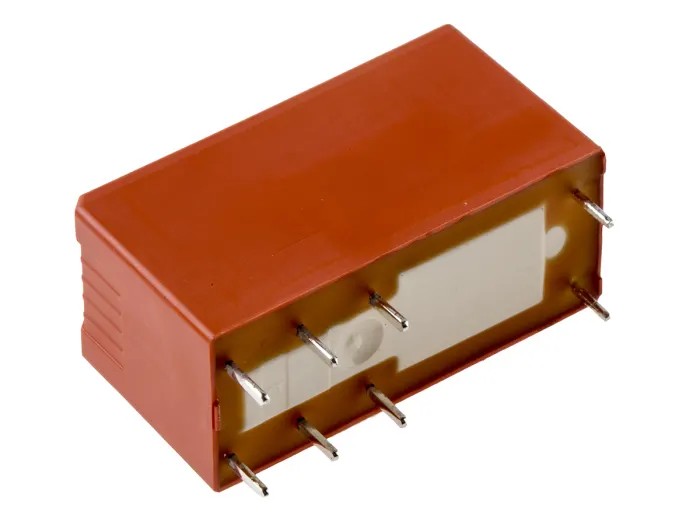

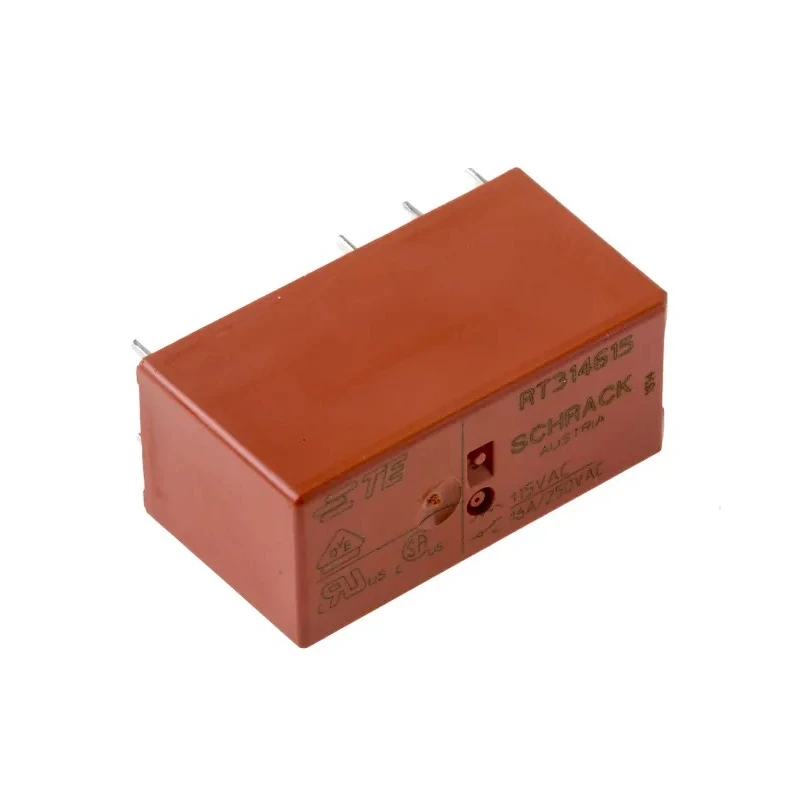

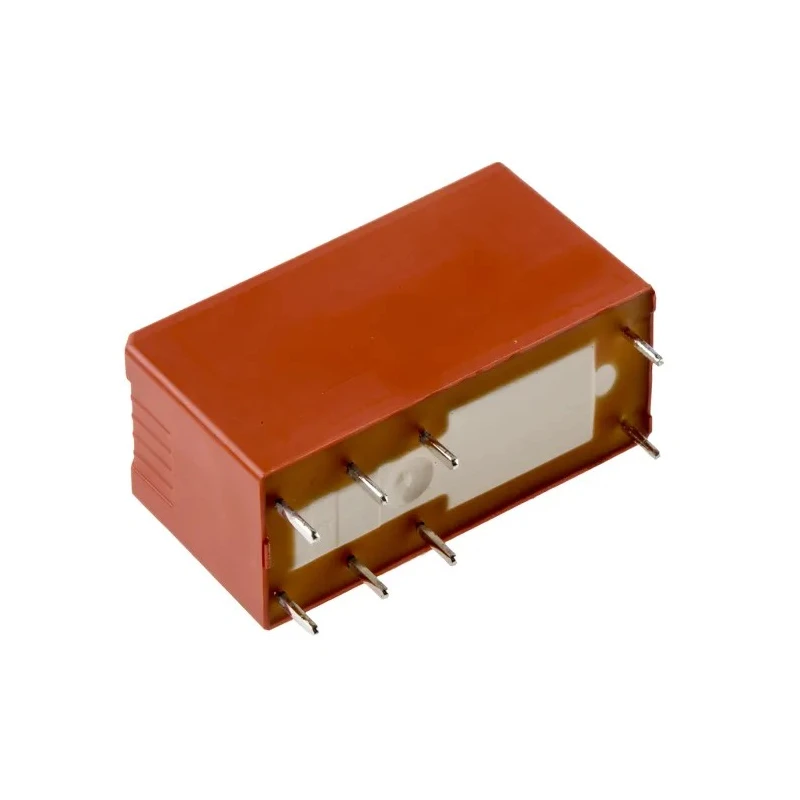

TE Connectivity RT314615 PCB Power Relay, 115V AC Coil, 16A Switching Current, SPDT Contact Configuration
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314615 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 8.1kΩ |
| Coil Voltage | 115V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- The product features a 115V AC coil voltage suitable for industrial control circuits.
- It supports a switching current of up to 16 amperes for robust electrical load handling.
- Compact dimensions with 29mm length, 15.7mm height, and 12.7mm width allow easy PCB integration.
- Constructed with silver nickel alloy contacts for durability and corrosion resistance.
- Operating temperature range from -40°C to 70°C suits harsh environmental conditions.
- Coil resistance is 8.1 kΩ ensuring efficient coil power consumption at 250mW.
- Mounting type is PCB with solder terminals for secure and stable connection.
- Meets IEC 60335-1, RoHS, and VDE standards ensuring safety and regulatory compliance.
Product Description
TE Connectivity RT314615 PCB Power Relay features a 115V AC coil and supports a 16A switching current with SPDT contact configuration. This relay is designed for PCB mounting with solder terminals and measures 29mm in length, 15.7mm in height, and 12.7mm in width, making it compact for integration into printed circuit boards.
The relay coil has a resistance of 8.1 kΩ and consumes 250mW of power. It operates reliably within a temperature range of -40°C to 70°C, ensuring performance stability in diverse environments. The contact material is silver nickel alloy, providing excellent conductivity and wear resistance under electrical load.
This RT1 series relay complies with IEC 60335-1 standards and is RoHS and VDE certified, ensuring product safety and environmental responsibility. Applications span automation systems, interface controls, heating regulation, security lighting, and various domestic electrical appliances requiring dependable power switching.
The mounting design offers solder terminal type connections for easy installation and secure circuitry integration. Its switching AC voltage rating of up to 400V AC and switching power of 4 kVA make it suitable for a broad range of electrical control applications.
115V AC coil voltage for industrial control circuits. 16A switching current capacity. Compact PCB mount design with solder terminals. Silver nickel alloy contacts for durability. Operating temperature from -40°C to 70°C.
Coil resistance of 8.1 kΩ, coil power 250mW. IEC 60335-1, RoHS, and VDE certified for safety. Switching voltage up to 400V AC, switching power 4kVA. Suitable for automation, heating, security lighting, and domestic uses.
Overall, the TE Connectivity RT314615 power relay is a high-quality, reliable component essential for electrical control and signal conditioning in industrial and domestic applications.
Explore more Power Relays and electrical components to enhance your control systems on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 115V AC, making it suitable for industrial control circuits.
This model supports a maximum switching current of 16 amperes.
The relay measures 29mm in length, 15.7mm in height, and 12.7mm in width, allowing for compact PCB integration.
The contact configuration of the RT314615 is SPDT (Single Pole Double Throw).
It operates within a temperature range of -40°C to 70°C, suitable for harsh environmental conditions.
The relay features solder terminals for secure and stable connections on printed circuit boards.
The contacts are constructed from silver nickel alloy, which offers durability and corrosion resistance.
This relay meets IEC 60335-1, RoHS, and VDE standards, ensuring safety and regulatory compliance.
The coil resistance is 8.1 kΩ, which ensures efficient power consumption at 250mW.
The maximum switching voltage for the RT314615 is 400V AC, making it suitable for various electrical control applications.
It is suitable for automation systems, interface controls, heating regulation, security lighting, and various domestic electrical appliances.
The coil power consumption is 250mW, which is efficient for its operational requirements.
