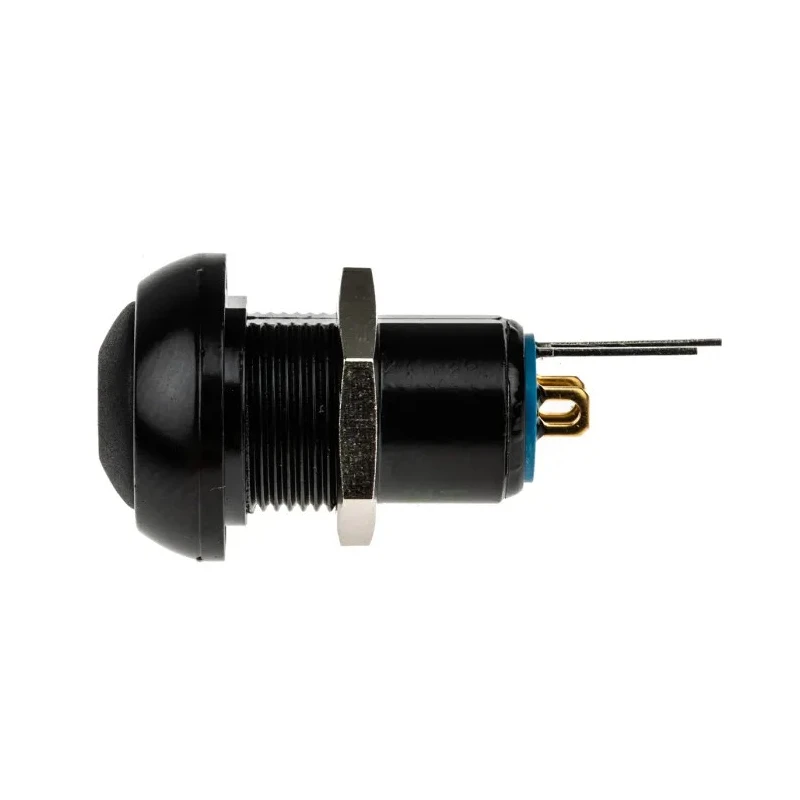

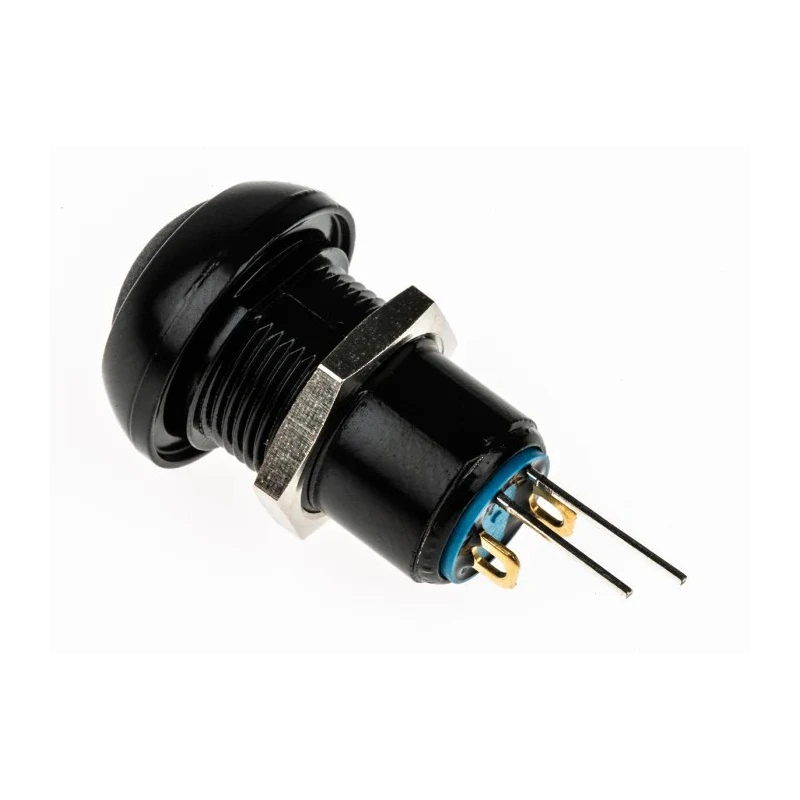

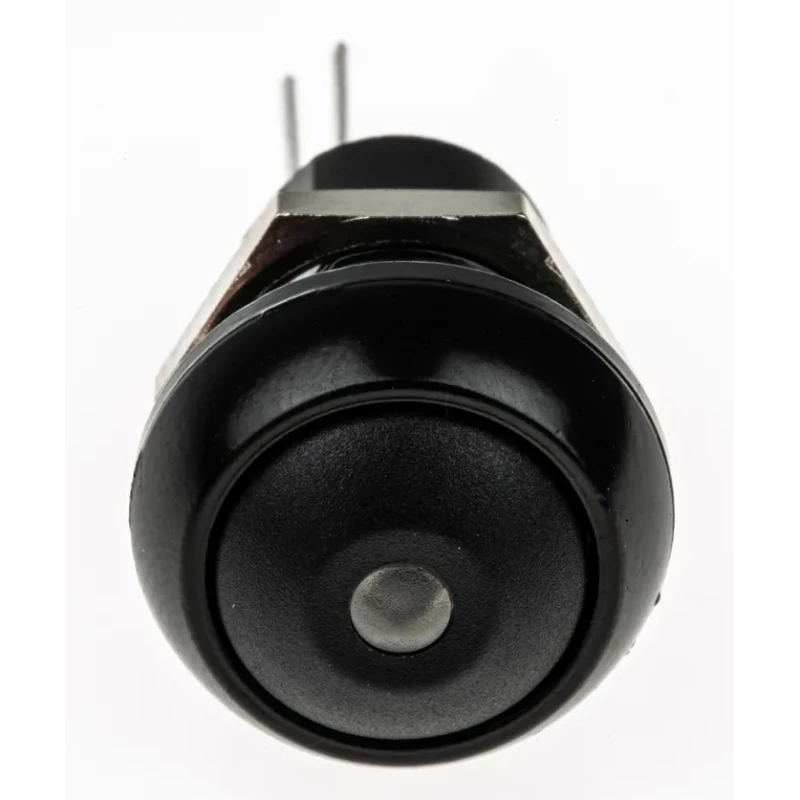

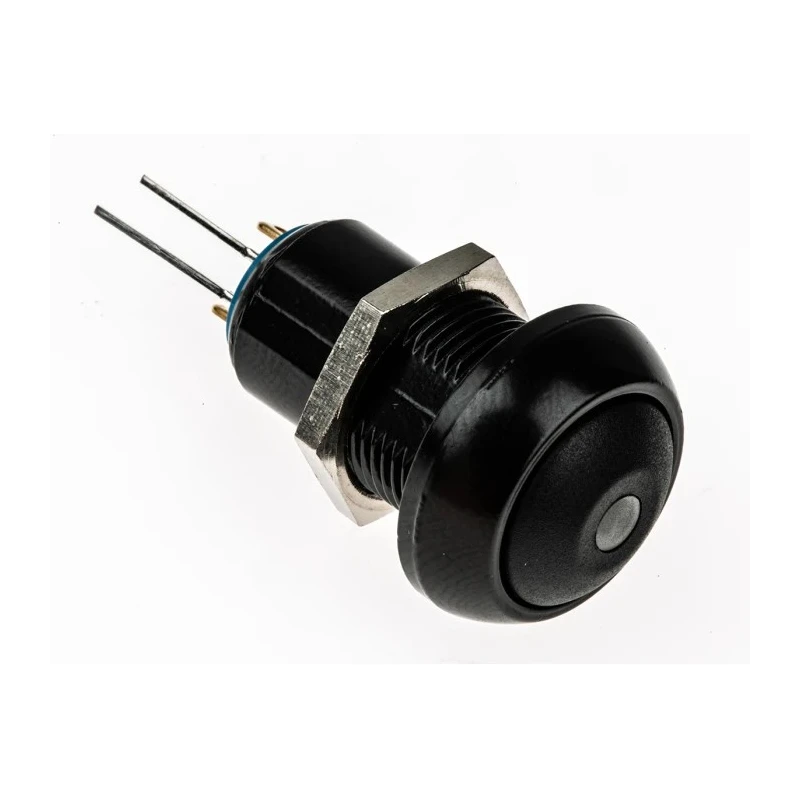

APEM IP Series Illuminated Miniature Push Button Switch, Latching, Panel Mount, 13.6 mm Cutout, SPST, Red LED IPR1SAD2LOS
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 16mm |
| Length | 17.5mm |
| Model | IPR1SAD2LOS |
| IP Rating | IP67 |
| Width | 17.5mm |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | Off-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Switch Operation | Latching |
| Actuator Colour | Black |
| Contact DC Voltage | 48V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- Features a single pole single throw (SPST) contact configuration for simple on/off control.
- Red LED illumination ensures clear operational status indication.
- Designed for panel mounting with a 13.6 mm cutout size for easy installation.
- Epoxy sealed terminals provide excellent flux ingress protection during soldering.
- Supports contact voltage ratings of 48 V dc and 250 V ac for versatile applications.
- IP67 ingress protection rating ensures dust tightness and water immersion resistance.
- Operates reliably in temperatures ranging from -40°C to 85°C.
- Compact dimensions of 17.5 mm width and length, and 16 mm height enable space-saving designs.
Product Description
The APEM IPR1SAD2LOS miniature push button switch is an illuminated, latching type switch intended for panel mounting applications where reliable on/off control is critical. With a 13.6 mm panel cutout, it fits compact industrial and automation control panels seamlessly.
The black actuator with plunger style offers tactile feedback and durability. The inclusion of a red LED illumination enhances visibility of operational status, crucial for control systems and user interfaces in industrial and electrical environments.
Rated at 48 V dc and capable of switching up to 5 A current, this single pole single throw (SPST) switch suits varied electrical controls. Its epoxy sealed terminals minimize flux ingress during soldering, enhancing reliability and longevity in manufacturing and repair setups.
IP67 ingress protection rating certifies its resistance against dust and water immersion, making it suitable for challenging environments such as industrial automation, laboratory equipment, and HVAC control panels.
Temperature tolerance ranging from -40°C to 85°C extends its usability across harsh climatic conditions. The product is RoHS compliant, reflecting adherence to electronic equipment environmental standards.
Single pole single throw (SPST) latching switch for straightforward control. Panel mount design with precise 13.6 mm cutout dimensions. Red LED illumination for clear visual feedback and operational status. Epoxy sealed terminals prevent manufacturing defects due to solder flux.
Robust IP67 rating for dust and water resistance in industrial settings. Operational temperature range from -40°C to 85°C. Compact size with dimensions: 17.5 mm width, 17.5 mm length, and 16 mm height. Rated for contact voltages up to 48 V dc and 250 V ac, with a 5 A contact current.
Compliance with RoHS ensures safety and environmental standards.
This APEM switch series is ideal for use in industrial controls, electrical switchboards, automation systems, and any application requiring a durable, IP-rated illuminated push button switch with latching operation.
Explore our wide range of professional-grade Push Button Switches at EnvMart for reliable electrical components and industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This switch features a single pole single throw (SPST) contact configuration, allowing for straightforward on/off control.
The required panel cutout size for this model is 13.6 mm, ensuring a proper fit for panel mounting applications.
It supports contact voltage ratings of 48 V DC and 250 V AC, making it versatile for various electrical applications.
This switch has an IP67 ingress protection rating, which certifies its resistance against dust and water immersion.
The operational temperature range is from -40°C to 85°C, allowing it to function reliably in harsh environments.
It features epoxy sealed terminals designed to minimize flux ingress during soldering, enhancing reliability in manufacturing.
The dimensions of this model are 17.5 mm in width and length, and 16 mm in height, making it compact for installation.
The LED illumination for this switch is red, providing clear visual feedback for operational status.
This switch is rated for a maximum contact current of 5 A, suitable for various electrical controls.
Yes, it is RoHS compliant, which indicates adherence to environmental standards for electronic equipment.
This model operates as a latching switch, meaning it maintains its position until toggled again.
This switch is manufactured in France, reflecting its origin in industrial-grade components.
