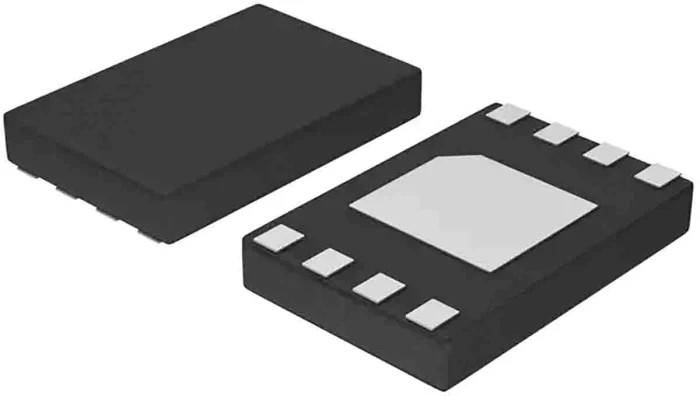

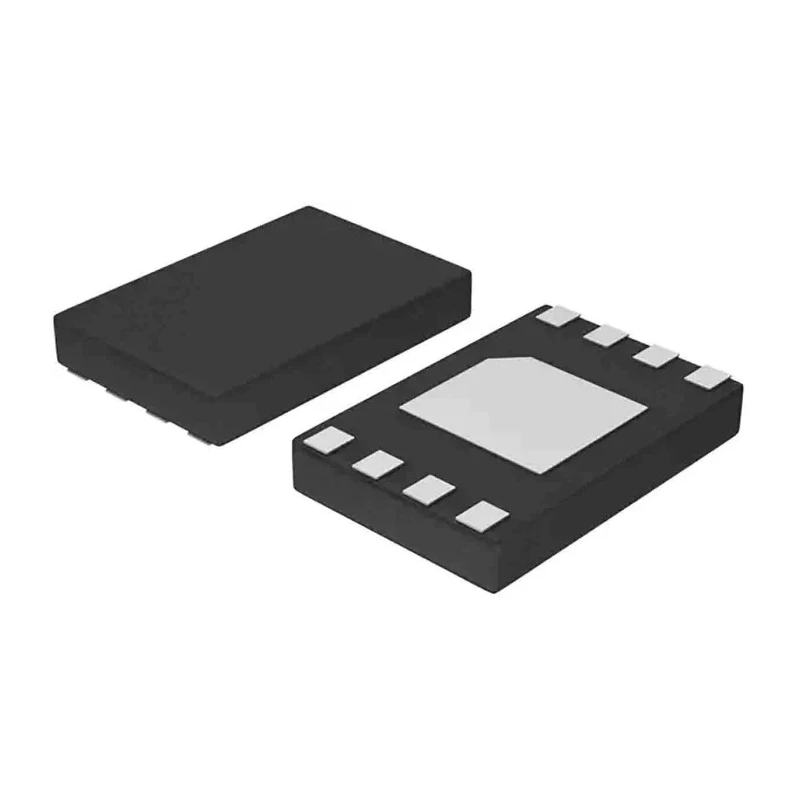

onsemi 512 kB EEPROM, 400 ns 8-Pin UDFN Serial-I2C CAT24C512HU5IGT3
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Length | 2mm |
| Model | CAT24C512HU5IGT3 |
| Width | 3mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | UDFN |
| Minimum Operating Temperature | -40°C |
| Memory size | 512kB |
| Interface Type | Serial-I2C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Supply Current | 2.5mA |
| Maximum Clock Frequency | 1MHz |
| Organisation | 6k x 8 Bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 400ns |
| Number of Words | 65536 |
Key Features
- Memory size of 512 kB organized as 65,536 words of 8 bits each.
- Supports Standard, Fast, and Fast-plus I2C protocols up to 1 MHz.
- Low power CMOS technology with 2.5 mA supply current.
- Hardware write protection ensures complete memory security.
- Rated for up to 1,000,000 program and erase cycles.
- Data retention guaranteed for 100 years.
- Operates over a temperature range of -40°C to 85°C.
- Complies with automotive standard AEC-Q100.
Product Description
onsemi CAT24C512HU5IGT3 is a 512 kB EEPROM memory device featuring a 400 ns maximum random access time and packaged in an 8-pin UDFN surface mount package measuring 2 mm by 3 mm. The memory is organized as 65,536 words of 8 bits each and communicates via a Serial-I2C interface supporting multiple bus speeds including standard (100 kHz), fast (400 kHz), and fast-plus (1 MHz) modes. It operates within a supply voltage range of 1.8 V to 5.5 V and consumes a supply current of 2.5 mA, implementing low power CMOS technology for energy efficient operation.
The device features hardware write protection for the entire memory content, ensuring data integrity and security. It is rated for up to 1,000,000 program and erase cycles, providing longevity in demanding environments. Data retention is guaranteed for 100 years, making it suitable for long-term applications.
Designed to operate across a wide temperature range from -40°C to 85°C, the CAT24C512HU5IGT3 complies with the automotive standard AEC-Q100, making it ideal for automotive and industrial applications requiring high reliability and performance. Its compact 8-pin UDFN package allows for easy integration on surface mount boards where space constraints exist.
Memory size of 512 kB organized as 65,536 words of 8 bits each. Supports multiple I2C bus speeds including standard, fast, and fast-plus protocols. Hardware write protection and low power CMOS technology enhance robustness and efficiency.
Rated for 1,000,000 program/erase cycles with 100-year data retention reliability. Operates from -40°C to 85°C complying with automotive AEC-Q100 standard. Compact 8-pin UDFN package of 2 mm x 3 mm dimensions for surface mount applications.
Supply voltage range from 1.8 V to 5.5 V with 2.5 mA supply current.
This EEPROM memory is widely used in industrial, automotive, and electronic equipment applications requiring non-volatile storage with fast access and high reliability. It is suitable for embedded systems, control units, and other data retention necessities.
Explore more semiconductor and memory chip products at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a memory size of 512 kB, organized as 65,536 words of 8 bits each.
The maximum clock frequency supported is 1 MHz, accommodating various I2C bus speeds.
It operates within a supply voltage range of 1.8 V to 5.5 V.
The maximum random access time is 400 ns.
It operates over a temperature range of -40°C to 85°C.
It is rated for up to 1,000,000 program and erase cycles.
It uses a Serial-I2C interface, supporting standard, fast, and fast-plus modes.
It is packaged in an 8-pin UDFN format with dimensions of 2 mm by 3 mm.
Yes, it features hardware write protection for complete memory security.
It complies with the automotive standard AEC-Q100.
The typical supply current is 2.5 mA, utilizing low power CMOS technology.
It is suitable for automotive, industrial, and electronic equipment applications requiring non-volatile storage.
