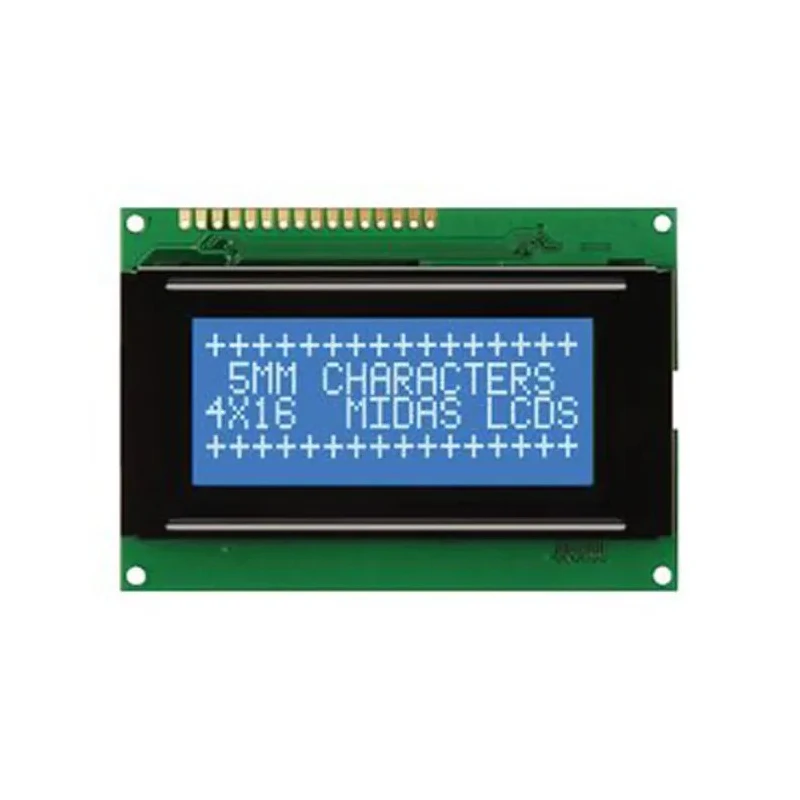

Midas Alphanumeric LED LCD Monochrome Display Blue on White 4 x 16 Characters MC41605A6W-BNMLW-V2

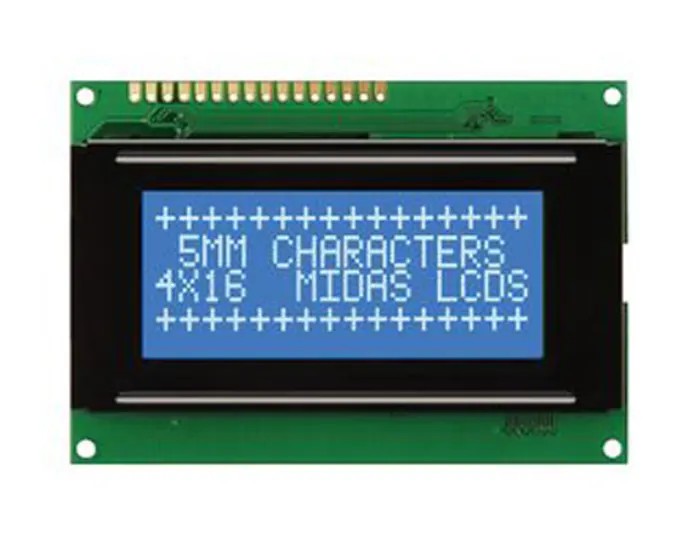

The Midas MC41605A6W-BNMLW-V2 is a high-quality alphanumeric LED LCD monochrome display, designed for industrial and electronic applications requiring clear digital readouts. This blue on white backlit 4 x 16 character display provides excellent visibility and mechanical reliability using chip-on-board (COB) technology.

This LCD display module features a character matrix of 4 rows and 16 columns, with each character measuring 4.8 mm in height and 3 mm in width. The viewing area is compact at 62 x 25 mm, allowing installation in various equipment where space is limited. The device has external dimensions of 87 mm width, 60 mm height, and a depth of 14 mm, adaptable to a range of electronic designs.

The display utilizes an 8-bit parallel interface, compatible with standard LCD controllers such as HD44780, ensuring straightforward integration into diverse embedded systems. It operates over a wide temperature range from -20°C to 70°C, making it suitable for industrial, laboratory, and manufacturing environments with temperature variations.

The LED backlight illumination color is blue, offering excellent contrast on a white background for improved readability in different lighting conditions. Its chip-on-board construction enhances durability and reliability for long-term use. The product is RoHS compliant, reflecting adherence to environmental and safety standards.

This display module is ideal for use in embedded control panels, measurement instruments, automation systems, and any application requiring clear alphanumeric information presentation. The Midas MC41605A6W-BNMLW-V2 provides robust performance to meet demanding electronic component needs.

This LCD module has a character matrix of 4 rows and 16 columns. The display features LED backlighting with a blue illumination color. The viewing area measures 62 x 25 mm to provide sharp character visibility. The module supports an 8-bit parallel interface for easy integration.

Operating temperature range extends from -20°C to 70°C for varied environments. The character height is 4.8 mm with width of 3 mm, ensuring clear readability. External dimensions are 87 mm width, 60 mm height, and 14 mm depth.

The display uses chip-on-board (COB) construction for durability and performance. RoHS compliant and manufactured in China to high standards. Explore additional Midas LCD Monochrome Display modules for diverse applications at EnvMart.
