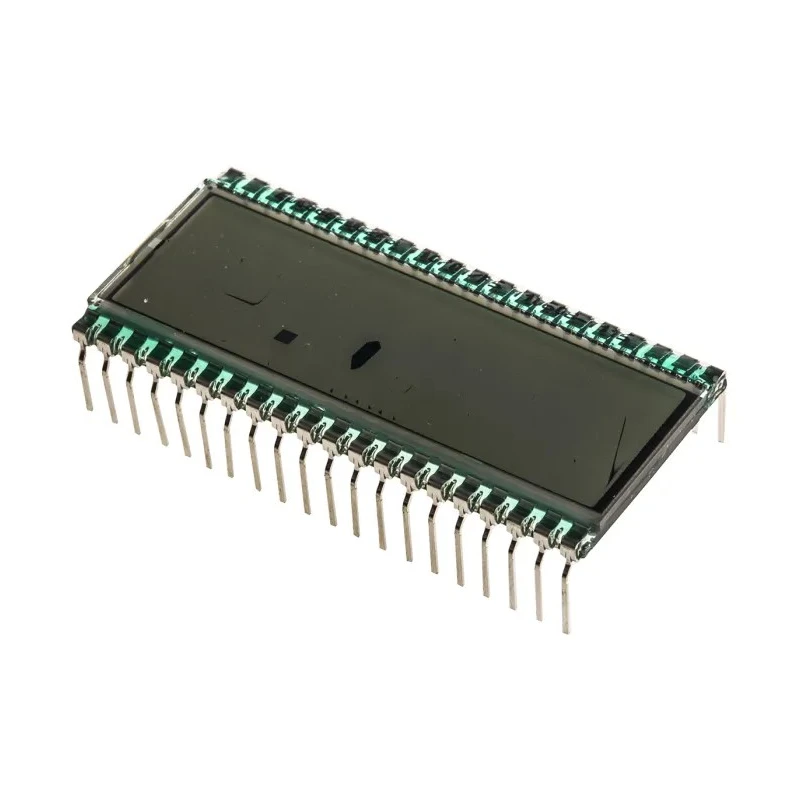

RS PRO PHT Series LCD Monochrome Display, 7 Segment, Black on Grey, LED Backlight, 1 x 3-1/2, 185-8535
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | RS PRO |
| Model | 185-8535 |
| Series | PHT |
| Character height | 8.9mm |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -30°C |
| External Width | 50.8mm |
| External Depth | 2.9mm |
| External Height | 22.8mm |
| Character Width | 5mm |
| Illumination Colour | Black |
| Viewing Area Dimensions | 45 x 12 mm |
| Backlight Type | LED |
| Character Matrix | 1 x 3-1/2 |
| RS PRO PHT 7 Segment LED LCD Monochrome Display, Black on Grey, 1 x 3-1/2Brand | RS PRO |
Key Features
- Direct-drive 7-segment LCD format delivers clear numeric information.
- Reflective and transflective modes allow sunlight readability and backlighting.
- Extremely low power consumption ideal for portable, battery-powered devices.
- Black segments on grey background provide high contrast and wide viewing angles.
- Standard DIL package with rigid pins simplifies integration into assemblies.
- LED backlight ensures visibility in low-light or no-light conditions.
- Wide operating temperature range from -30°C to 80°C increases reliability.
- Viewing area of 45 x 12 mm with 8.9 mm character height enhances readability.
Product Description
The RS PRO PHT Series LCD Monochrome Display, model 185-8535, is a high-performance display module designed for electronic measurement and instrumentation applications that require clear, reliable numeric data presentation.
This 7-segment display features black illuminated segments on a grey background, ensuring excellent contrast in a variety of ambient lighting conditions. The product incorporates both reflective and transflective capabilities: the reflective mode allows for sunlight readability, while transflective mode permits backlighting via the integrated LED for operation in low-light environments.
Its extremely low power consumption makes it suitable for battery-powered and portable instruments such as handheld multimeters, panel meters, and industrial equipment. The standard 7-segment format supports inter-digit decimal points and colons, facilitating precise numeric readouts and easy interpretation.
The module comes as a flat glass plate with rigid pins in a dual-in-line (DIL) package, promoting straightforward installation and robust electrical connection. The 45 x 12 mm viewing area and 8.9 mm character height ensure easy readability. This display operates reliably in conditions from -30°C to 80°C, making it adaptable to a wide range of environments in laboratories, field measurement, and control panels.
Among its notable technical specifications are the LED backlight for enhanced viewing, a character matrix of 1 x 3-1/2, and bezel inclusion for added protection and aesthetics.
The RS PRO 185-8535 display is widely utilized in industrial measurement systems, laboratory testing, commercial instrumentation, and portable diagnostic devices, wherever robust display solutions are required.
For further exploration of similar products and related technology, browse the LCD Monochrome Display category on EnvMart for advanced electronic display solutions from RS PRO and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of the RS PRO PHT Series LCD Monochrome Display is 8.9 mm.
This model can operate at a maximum temperature of 80°C.
It features an LED backlight, which enhances visibility in low-light conditions.
The viewing area dimensions are 45 x 12 mm.
The minimum operating temperature is -30°C.
The character matrix configuration is 1 x 3-1/2.
The external dimensions are 50.8 mm in width, 2.9 mm in depth, and 22.8 mm in height.
This model is a 7-segment LCD monochrome display.
The reflective mode allows for sunlight readability, enhancing visibility in bright conditions.
This display is suitable for electronic measurement and instrumentation applications, such as handheld multimeters and industrial equipment.
The segments of this display are black on a grey background, providing high contrast.
The standard DIL package with rigid pins simplifies integration into assemblies, promoting straightforward installation.
