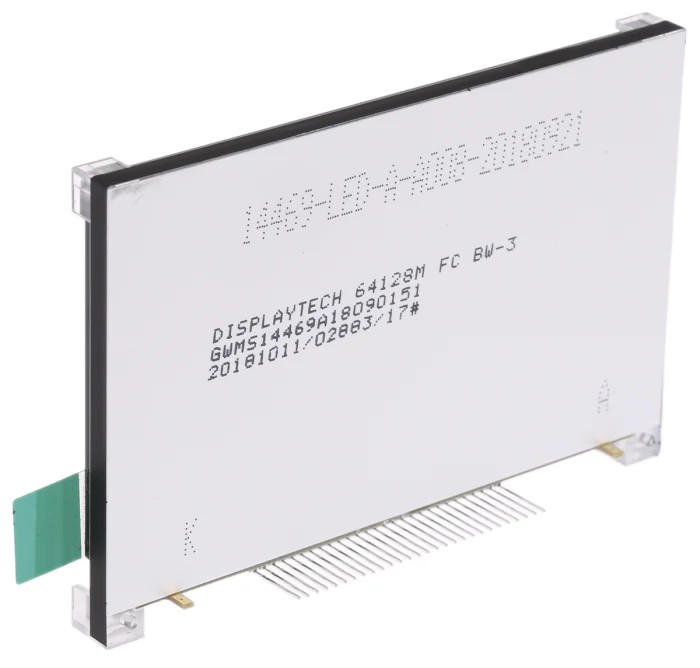

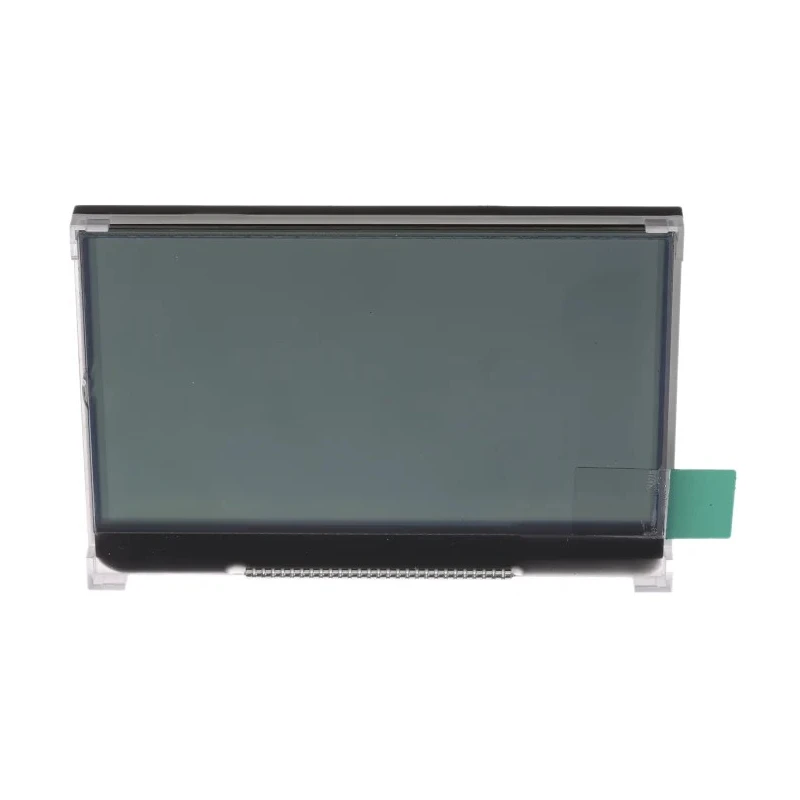

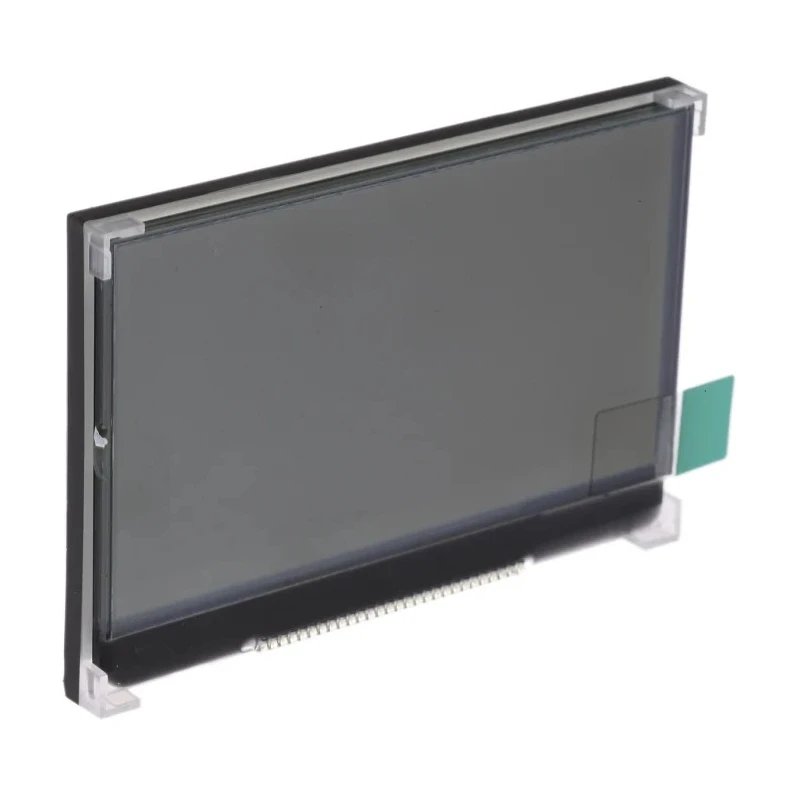

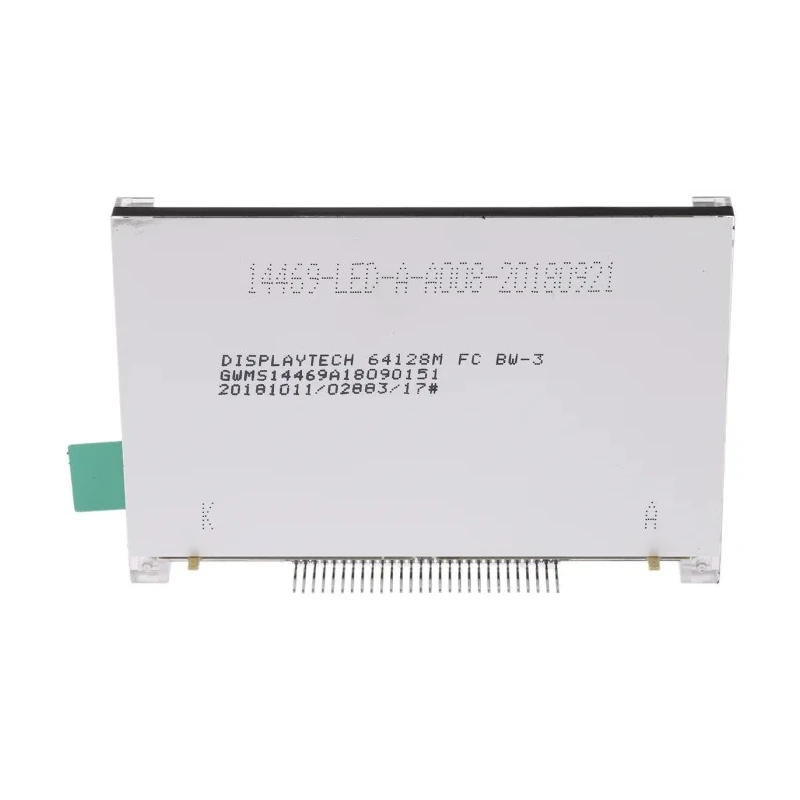

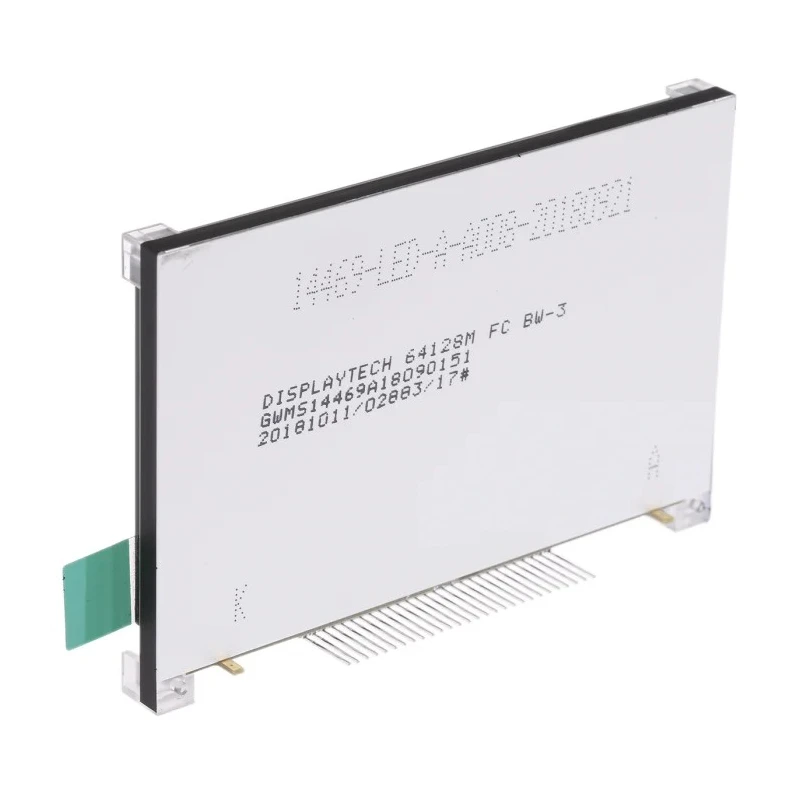

Displaytech 64128M FC BW-3 Graphic LED LCD Monochrome Display, 128×64 Pixel, White on Black, LED Backlight

The Displaytech 64128M FC BW-3 is a high-performance graphic LED LCD Monochrome Display optimized for industrial, laboratory, and commercial applications. Featuring a crisp 128×64 pixel FSTN matrix with white illumination on a black background, it delivers sharp, readable data and graphics for embedded systems, instrumentation, and control panels.

This display utilizes transflective display mode and is equipped with a robust ST7565R-G controller and LCD driver for enhanced durability and operational stability. The LED backlight ensures efficient energy usage while providing clear visibility even in dim or varied lighting conditions.

With a generous viewing area of 70 × 43 mm, the module offers easy integration into compact electronics, test devices, and process controllers. Its slim external dimensions (77.4 mm width, 52.4 mm height, and 6.5 mm depth) make it suitable for space-constrained environments. The product supports a wide operating temperature range from -30°C up to 80°C, facilitating both indoor and outdoor deployments.

Key advantages include RoHS compliance, a 1/65 duty cycle, and a viewing angle positioned at 6/12 O'clock, which maximizes operator visibility. The bezel is included for efficient mounting, and background illumination uses bright white LEDs for optimal data presentation.

Applications for this display span across industrial automation panels, scientific instruments, HVAC controls, medical electronics (non-diagnostic), mobile equipment interfaces, and programmable logic controllers (PLCs). It is also ideal for manufacturing displays, portable testers, and high-reliability embedded systems.

128×64 graphic pixel matrix for precise data and graphical output. White on black background with transflective FSTN film for high contrast. LED backlight enhances visibility and lowers power consumption. Wide viewing area, compact module design, and RoHS compliant materials.

Reliable controller and LCD driver suited to demanding industrial environments. Mounting bezel ensures robust installation in panels and enclosures.

This Displaytech LCD module provides a balanced solution for engineers seeking high clarity and durability in their display requirements. Explore Displaytech's full range of monochrome graphic LCD displays in the Electronics & Electricals category on EnvMart for advanced engineering and system integration.
