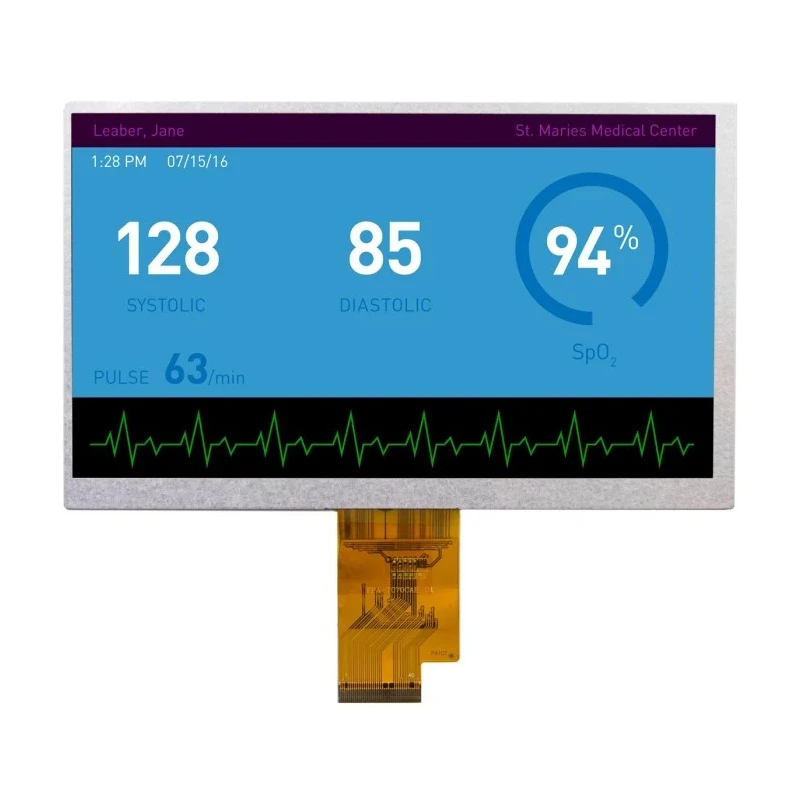

Displaytech 7 inch TFT LCD Colour Display 1024 x 600 Pixel LVDS Interface DT070BTFT

Free Delivery in India | Lowest Global Shipping Charges

Displaytech 7 inch TFT LCD Colour Display 1024 x 600 Pixel LVDS Interface DT070BTFT

Name: Displaytech 7 inch TFT LCD Colour Display 1024 x 600 Pixel LVDS Interface DT070BTFT
Brand: Displaytech
SKU: 204415
Price: 96.72 USD
Availability: InStock



Category LCD Colour Displays Brand Displaytech Condition New

Specifications

Country of Origin	China
Display Type	TFT, LCD
Brand	Displaytech
Current	45mA
Height	100mm
Model	DT070BTFT
Depth	85.92mm
Width	164.9mm
Maximum Operating Temperature	70°C
Brightness	250cd/m²
Minimum Operating Temperature	-20°C
Interface Type	LVDS
Screen Resolution	1024 x 600 pixel
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2.6V
Viewing Area Dimensions	154 x 86 mm
Backlight Type	LCD
Diagonal Display Size	7in
Contrast Ratio	800:1
Contrast Ratio800	1
800	1
Display source driver	Fitipower EK79007
Display gate driver	Fitipower EK73217A

Key Features

The display features TFT LCD with LED backlighting for superior brightness.
It supports a viewing area of 154 x 86 mm for clear graphics presentation.
Operates within a voltage range from 2.6V to 3.6V supply voltage.
Designed for temperatures from -20°C up to 70°C for versatile environmental applications.
Compact dimensions of 164.9mm width, 100mm height, and 85.92mm depth.
Integrated Fitipower EK79007 display source driver and EK73217A gate driver.
Non-touch display module suitable for high-speed graphics and video uses.
Manufactured in China with reliable build quality.

Product Description

The Displaytech DT070BTFT is a 7 inch TFT LCD Colour Display module designed for industrial and electronic applications requiring detailed and vivid graphical interfaces. It features a 1024 x 600 pixel resolution with a high brightness LED backlight and a robust contrast ratio of 800:1, ensuring sharp and vibrant images.

This display utilizes a LVDS interface with two driver ICs (Fitipower EK79007 source driver and EK73217A gate driver) that allow flexible supply voltages and precise pin control features, appropriate for high-speed graphic and video data processing.

With a viewing area dimension of 154 x 86 mm paired with compact physical dimensions (164.9 mm width, 100 mm height, 85.92 mm depth), this module is suitable for embedded systems, control panels, instrumentation, and other industrial environment usages.

The operating temperature range from -20°C to 70°C makes it reliable in various environmental conditions. This module is also offered without a touchscreen, ensuring suitability where resistive or capacitive touch features are not required.

Its TFT LCD technology with LED backlighting enhances color accuracy and viewing angle, making it an excellent choice for electronic displays, laboratory instruments, industrial automation, and other commercial or manufacturing control systems.

The Displaytech DT070BTFT enables high clarity interface screens for industrial, manufacturing, and electronics applications. Bright 250 cd/m² LED backlighting ensures visibility under diverse lighting conditions. Compact form factor allows integration into various electronic housings and assemblies.

Flexible voltage allowance supports multiple power configurations efficiently. Durable build suited for commercial and industrial deployments.

This TFT LCD display module offers a trusted solution for engineers and system integrators looking for high-resolution, reliable display components. Explore more options in LCD Colour Displays category for related display modules and enhance your electronic projects with Displaytech quality.

Looking to purchase in bulk?
