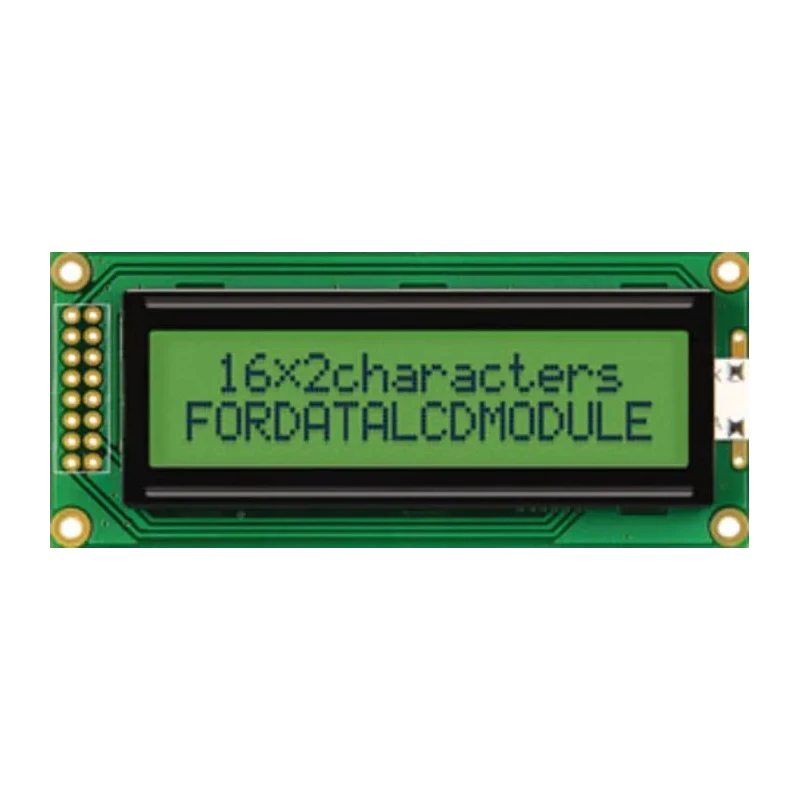

Fordata LCD Graphic Display 2 x 16 Characters Yellow Green Illumination FC1602B01-RNNYBW-66SE
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD |
| Brand | Fordata |
| Model | FC1602B01-RNNYBW-66SE |
| Series | FC |
| Character height | 5.8mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 85mm |
| External Depth | 9.5mm |
| External Height | 36mm |
| Standards/Approvals | RoHS |
| Character Width | 3mm |
| Illumination Colour | Yellow, Green |
| Viewing Area Dimensions | 63 x 16 mm |
| Character Matrix | 2 x 16 |
Key Features
- This display features a character matrix of 2 by 16 in a compact 63 x 16 mm viewing area.
- Constructed with external dimensions of 85 mm width, 36 mm height, and 9.5 mm depth for easy integration.
- Designed with a built-in SPLC780D or equivalent controller supporting 4-bit or 8-bit MPU interface.
- Operates reliably within a temperature range of -20°C to 70°C, suitable for harsh environments.
- Character height and width measure 5.8 mm and 3 mm respectively, ensuring clear readability.
- Utilizes a 1/16 duty cycle and requires a +5.0V power supply, adaptable for various industrial electronics.
- Complies with RoHS standards, assuring environmentally safe manufacturing.
- Illumination colors are yellow and green, enhancing visibility under different lighting conditions.
Product Description
Fordata FC1602B01-RNNYBW-66SE is a high-quality LCD Graphic Display designed for electronic and industrial applications requiring clear alphanumeric display capability.
The display presents a 2 x 16 character matrix with a compact viewing area measuring 63 x 16 mm. Its external dimensions are 85 mm in width, 36 mm in height, and 9.5 mm in depth, making it suitable for embedded system implementations.
Featuring yellow and green illumination, the display enhances readability and provides effective contrast. It incorporates a built-in controller (SPLC780D or equivalent) that supports both 4-bit and 8-bit microprocessor unit (MPU) interfaces, thus allowing flexible integration into various electronic systems.
Designed to operate in ambient temperatures ranging from -20°C to 70°C, this display module is robust for demanding industrial environments. The character dimensions are carefully crafted with a height of 5.8 mm and width of 3 mm, ensuring legibility even in compact arrangements.
This module operates on a +5.0V power supply with a 1/16 duty cycle, supporting efficient power management in embedded designs. It complies with RoHS directives, ensuring environmentally responsible construction and usage.
This LCD Graphic Display features a 2 x 16 character matrix arranged in 5x8 dots with cursor support. The illumination colors - yellow and green - provide excellent visibility and user interface indication. The built-in SPLC780D or equivalent controller simplifies design integration with both 4-bit and 8-bit MPU interfaces.
The module supports multiple backlight drive pin options for flexible hardware configurations. It is manufactured with compliance to RoHS standards and originates from China.
Ideal for applications in electronic component manufacturing, instrumentation, embedded systems, and display modules for industrial measurement equipment. Fordata offers a reliable, user-friendly LCD solution backed by quality control and international standards compliance.
Explore further in LCD Monochrome Displays for complementary products and accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of this model are 85 mm in width, 36 mm in height, and 9.5 mm in depth.
It features a character matrix of 2 x 16, allowing for the display of 32 characters in total.
This display operates reliably within a temperature range of -20°C to 70°C.
It requires a +5.0V power supply for operation.
The viewing area dimensions are 63 mm in width and 16 mm in height.
It incorporates a built-in SPLC780D or equivalent controller that supports both 4-bit and 8-bit MPU interfaces.
The character height is 5.8 mm and the character width is 3 mm.
The display features yellow and green illumination colors, enhancing visibility under various lighting conditions.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing.
It is ideal for applications in electronic component manufacturing, instrumentation, embedded systems, and industrial measurement equipment.
The display operates with a 1/16 duty cycle, which supports efficient power management.
This model supports a 2 x 16 character display arranged in 5x8 dots with cursor support.
