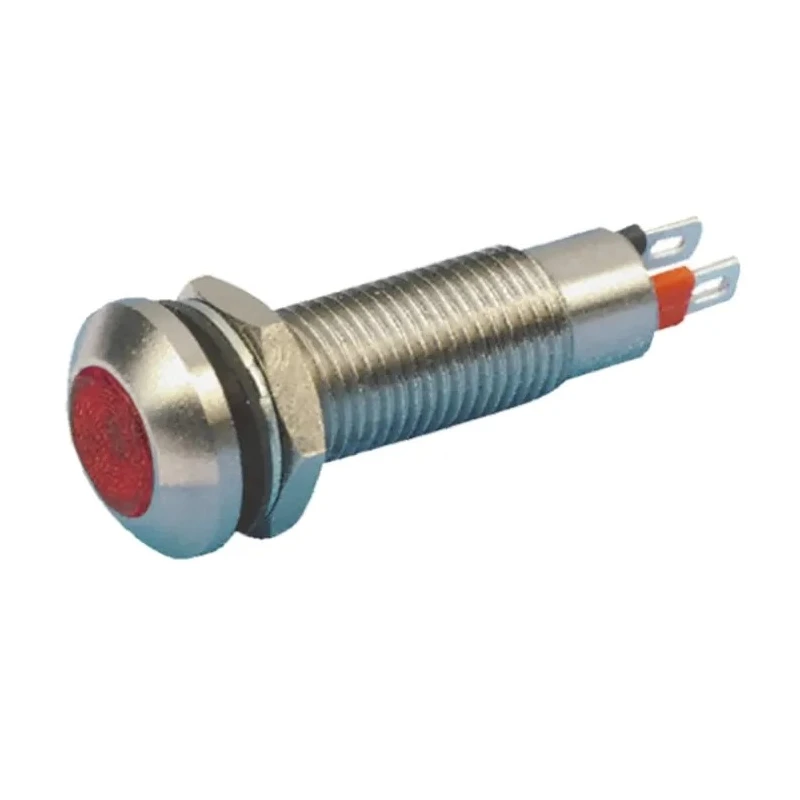

Marl Panel Mount LED Indicator 524 Series, Red LED, 8.1 mm Mount Hole, Diffused Lens, IP67, 28V DC 524-501-22
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Marl |
| Length | 36.9mm |
| IP Rating | IP67 |
| Series | 524 |
| Maximum forward current | 20mA |
| Viewing angle | Wide |
| Sub Type | Panel Mount LED Indicator |
| Terminal type | Solder Tab |
| Lens Colour | Red |
| Standards/Approvals | CE, UKCA, RoHS |
| LED Colour | Red |
| Lens Finish | Diffused |
| Maximum Supply Voltage | 28V dc |
| Minimum Supply Voltage | 24V |
| Mount Hole Size | 8.1 mm |
| Multicolour/Single Colour | Single Colour |
Key Features
- Features an 8.1 mm mount hole for panel installation.
- Equipped with a red diffused polycarbonate lens for wide viewing angle.
- Operates with a maximum supply voltage of 28V DC and minimum supply voltage of 24V.
- Rated IP67 for ingress protection against dust and water immersion.
- Stainless steel low profile housing provides durability and resistance to shock and vibration.
- Uses 0.11 inch (2.8x0.5mm) solder tab terminals for secure electrical connection.
- Comes fully internally potted for environmental protection.
- Supplied with sealing washer, fixing nut, and lock washer for easy mounting.
Product Description
Marl 524-501-22 Panel Mount LED Indicator is an industrial grade red indicator light designed for panel mounting applications. It features a robust stainless steel housing with a low profile of 12.7 mm, making it suitable for operation in harsh industrial and commercial environments. The indicator has a mount hole size of 8.1 mm and a length of 36.9 mm, facilitating easy installation.
Equipped with a red diffused polycarbonate lens, it ensures excellent visibility with a wide viewing angle, optimized for sunlight viewability. The LED operates at a maximum forward current of 20 mA and supports a supply voltage range from 24V minimum to 28V DC maximum. The product achieves an IP67 ingress protection rating, making it dust tight and capable of withstanding water immersion, enhancing its durability in demanding conditions.
The indicator is fully internally potted and built to resist shock and vibrations, ensuring long-term reliable operation. Electrical connection is made via 0.11 inch (2.8 x 0.5 mm) solder tab terminals. For secure and sealed installation, the unit is supplied with a sealing washer, fixing nut, and lock washer.
This panel mount LED indicator is ideal for use in industrial, manufacturing, electronic equipment, control panels, and instrumentation assemblies where reliable status indication is needed.
8.1 mm mount hole for secure panel installation. Red diffused polycarbonate lens for wide-angle visibility. Robust 12.7 mm low profile stainless steel housing. Ingress protection IP67 rating for dust and water resistance.
Operates on 24V to 28V DC with max forward current 20 mA. Shock and vibration resistant design with internal potting. Solder tab terminals (0.11 inch) for electrical connection. Includes sealing washer, fixing nut, and lock washer for mounting.
Country of origin: United Kingdom. Standards and approvals include CE, UKCA, and RoHS compliance. The 524 series is recognized for quality and consistent performance in demanding environments.
Explore more panel mount LED indicators and electronic components in our comprehensive EnvMart catalog for industrial, laboratory, and commercial applications.
Explore more products in our Panel Mount Indicators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 28V DC.
It has an IP67 rating, which means it is dust tight and can withstand water immersion.
The mount hole size for this indicator is 8.1 mm.
It uses 0.11 inch (2.8 x 0.5 mm) solder tab terminals for secure electrical connections.
The length of this model is 36.9 mm.
The minimum supply voltage required for this unit is 24V DC.
It is equipped with a red diffused polycarbonate lens for a wide viewing angle.
This model is compliant with CE, UKCA, and RoHS standards.
The maximum forward current is 20 mA.
It features a robust stainless steel housing designed for durability and resistance to shock and vibration.
It comes with a sealing washer, fixing nut, and lock washer for easy mounting.
It is suitable for use in industrial, manufacturing, electronic equipment, control panels, and instrumentation assemblies.
