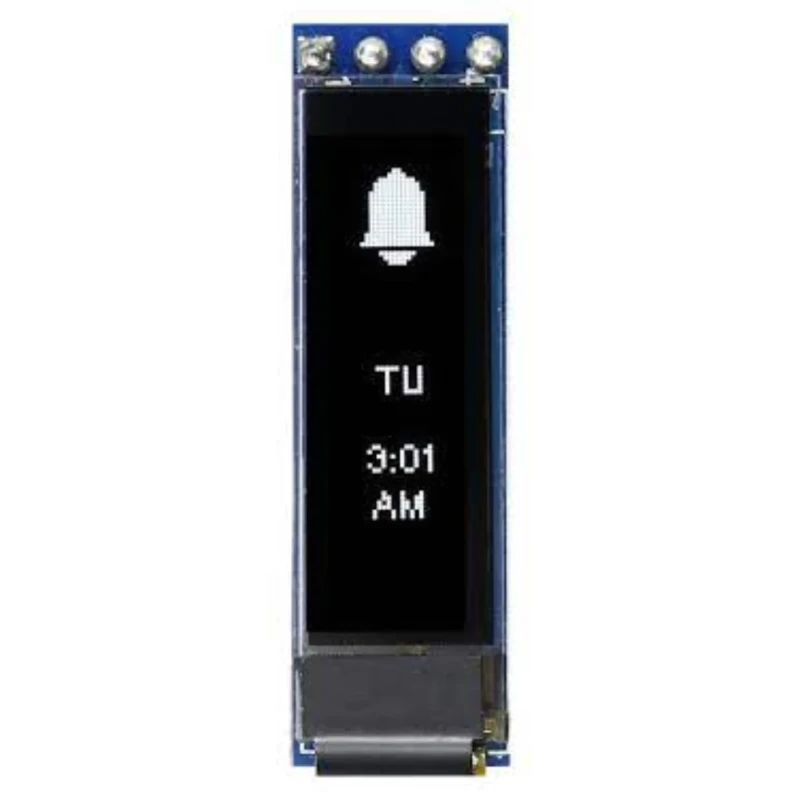

Midas 0.84 in Passive Matrix White OLED Display 96 x 16 Pixel COB I2C MDOB096016AV-WI

The Midas MDOB096016AV-WI is a 0.84-inch passive matrix white OLED display module featuring a 96 x 16 pixel resolution. This compact display employs a chip-on-board (COB) design with the SSD1306BZ controller, providing sharp white-on-black graphics in a small form factor.

With a diagonal size of 0.84 inches and a viewing area measuring 21.1 mm by 3.5 mm, the display fits applications demanding clear text and graphics in tight spaces. It operates efficiently at a low forward current of 26mA and forward voltage of 3.2V dc, suitable for battery-powered or low-power electronic systems.

This OLED display is designed for durability with an operating temperature range from -40°C to +80°C, enabling use in harsh industrial and outdoor environments. Its high contrast ratio of 2000:1 ensures excellent readability under varied lighting conditions.

The external dimensions - 10 mm width, 2.45 mm height, and 2.45 mm depth - make this display ideal for embedded system integration, instrumentation panels, and portable electronics. Compliance with RoHS standards guarantees environmental safety in manufacturing and disposal.

Key technical features include its passive matrix architecture, I2C interface for simple communication, and robust chip-on-board mounting. This display module is widely used in electronics projects, handheld devices, industrial automation displays, and user interface panels.

Features a passive matrix OLED screen with a resolution of 96 x 16 pixels. Has a diagonal display size of 0.84 inches and viewing area dimensions of 21.1 x 3.5 mm. Controlled by the SSD1306BZ driver with driver mounting in chip-on-board (COB) format.

Operates within a temperature range from -40°C to +80°C, suitable for varied environments. Offers a high contrast ratio of 2000:1 for sharp display clarity. Low forward current of 26mA and forward voltage of 3.2V dc for energy-efficient operation.

Compact external dimensions of approximately 10mm width, 2.45mm height, and 2.45mm depth. Complies with RoHS standards ensuring environmental safety. Ideal for industrial, electronic, and embedded system display applications requiring high visibility.
