Kitronik Kitronik VIEW Graphics128 OLED Display 128x64 for BBC Micro bit 3V SSD1306 I2C Interface 56115

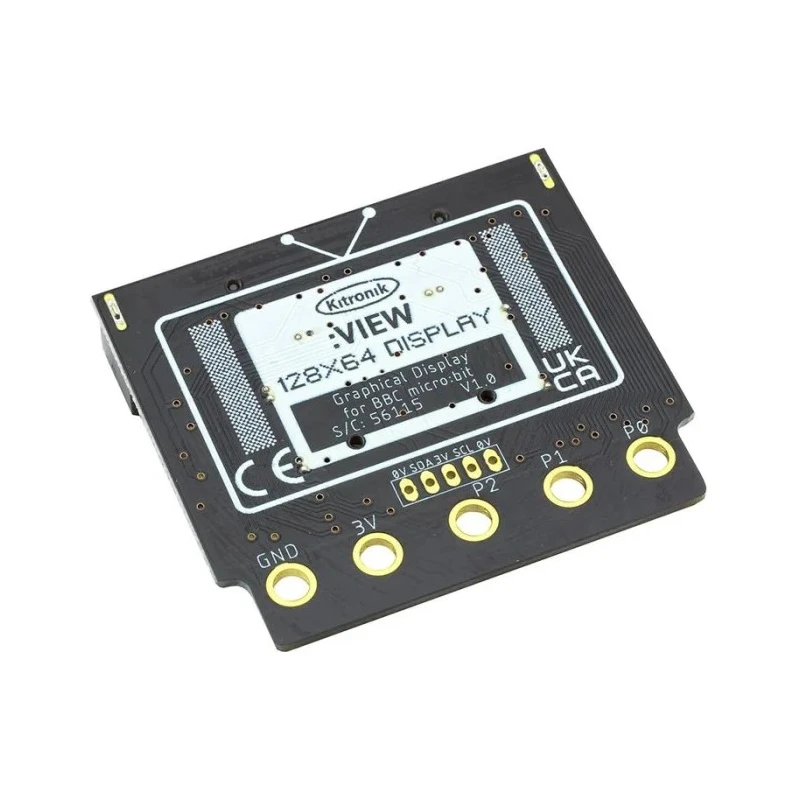

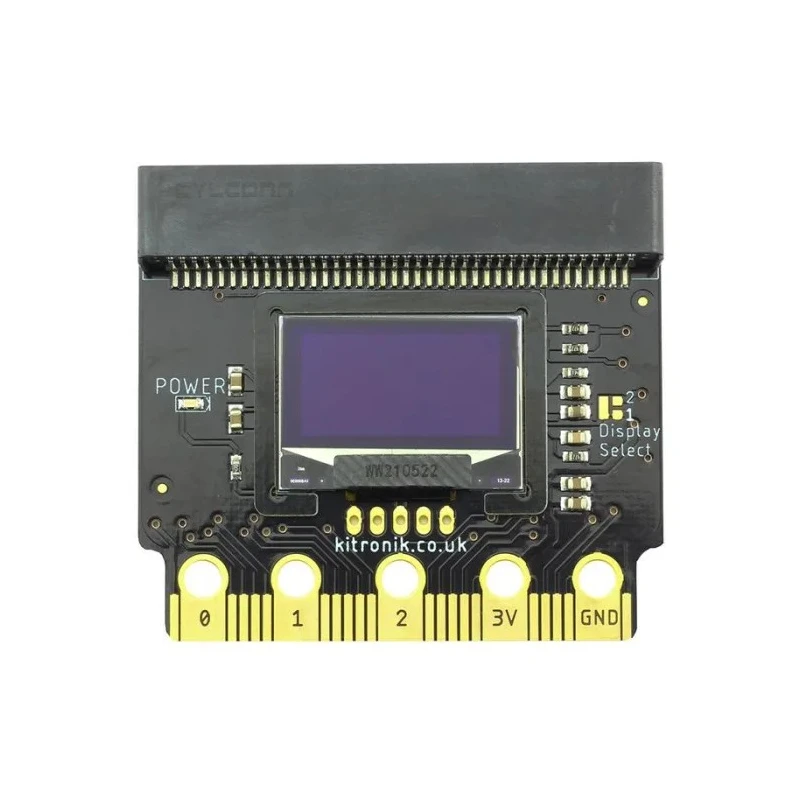

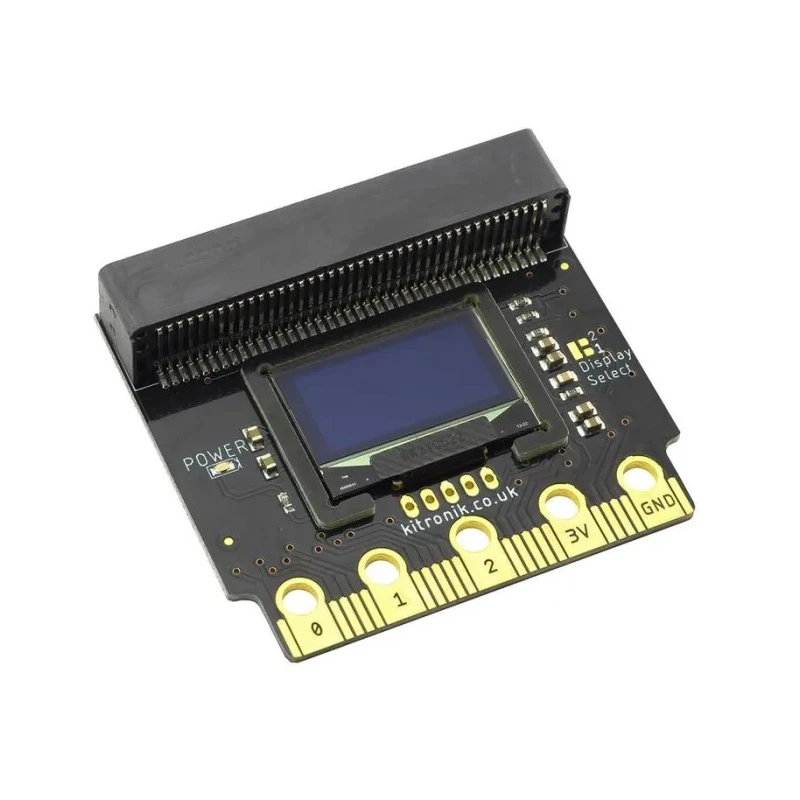

Kitronik 56115 Kitronik VIEW Graphics128 OLED Display 128x64 for BBC Micro bit is a monochrome OLED display designed specifically for the BBC Micro bit educational microcontroller board. It offers a 128 by 64 pixel resolution, driven by the SSD1306 chipset using an I2C interface, providing clear and crisp graphics for educational and development projects.

The unique edge connector on the display board allows the BBC Micro bit to slot in directly without any soldering, screws, or fixings, enabling rapid and tool-free installation. Additionally, the board features a micro: bit style I/O connector, allowing further stacking or chaining with other micro: bit accessories, increasing expandability and versatility in STEM education and prototyping.

This display module is powered by a 3V supply via the edge connector or the micro: bit itself, minimizing additional power requirements. Breakout pads for I2C communication, 3V power, and ground are provided on a standard 2.54 mm pitch, enabling straightforward interfacing with additional I2C devices or sensors using jumper wires or pin headers.

Kitronik supports this product with custom coding blocks for Microsoft's MakeCode visual programming environment and MicroPython, empowering users to easily program graphical displays with intuitive code. The module includes a power indicator LED for status monitoring.

This makes the product ideal for educational, STEM development, and maker projects involving the BBC Micro bit platform.

The Kitronik 56115 VIEW Graphics128 OLED display complies with several standards and regulations including EU Regulation 2023/2006/EC, FDA CFR 21, Halal and Kosher requirements, and REACH regulations, assuring safety and quality. It is manufactured in the United Kingdom.

The display provides a convenient 128x64 pixel monochrome OLED interface for the BBC Micro bit. Direct edge connector slot-in design allows tool-free installation. Integrated micro: bit style I/O connector supports accessory chaining.

Custom MakeCode blocks and MicroPython support enable easy programming. Power indicator LED for operational status monitoring. Breakout pads expose I2C interface and power lines with standard pin pitch. Explore more Kitronik products and other OLED Displays within the Electronics Components category on EnvMart for all your STEM and development needs.
