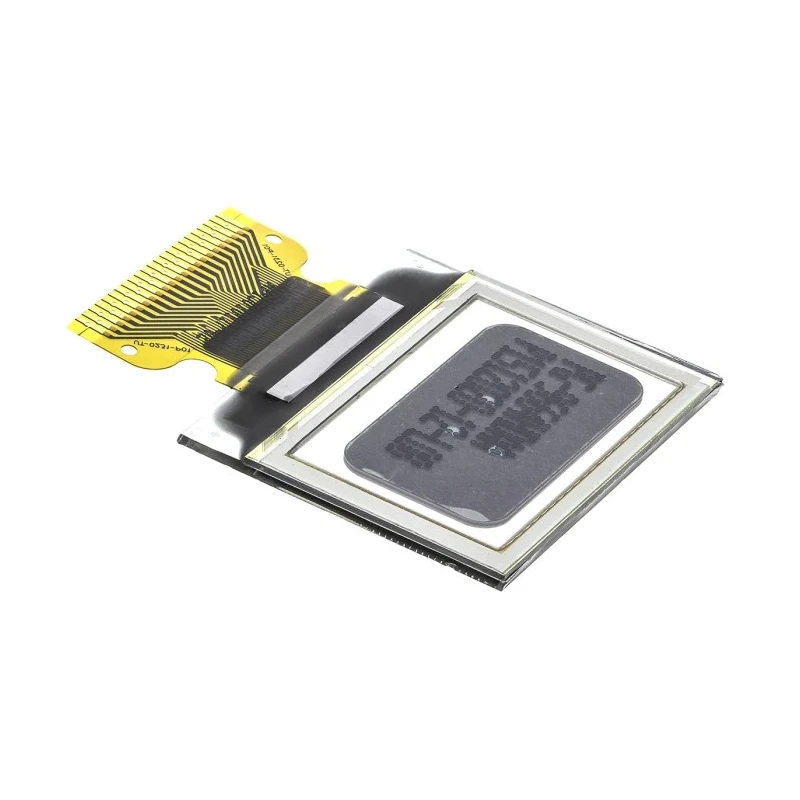

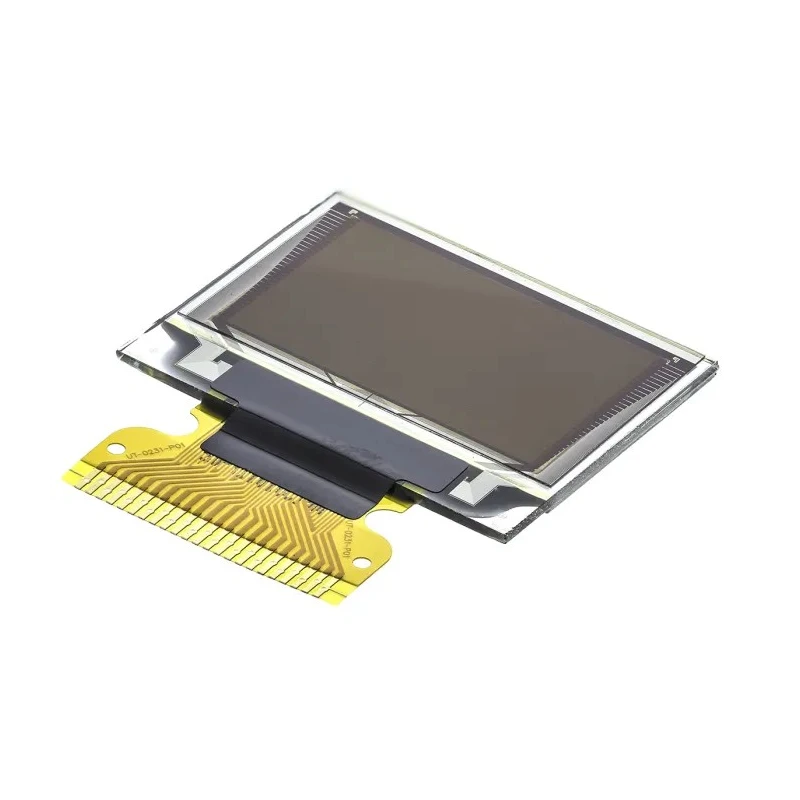

Univision 1.09 in Passive Matrix OLED Display 96 x 64 Pixel SPI Interface DD-9664FC-2A
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Univision |
| Model | DD-9664FC-2A |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| External Width | 25.7mm |
| External Depth | 1.5mm |
| External Height | 22.2mm |
| Interface Type | SPI |
| Screen Resolution | 96 x 64 pixel |
| Forward Voltage | 3.5V |
| Forward Current | 25mA |
| Viewing Area Dimensions | 22.14 x 15.42 mm |
| Diagonal Display Size | 1.09in |
| Contrast Ratio | 1:1000 |
| Matrix Type | Passive |
| Driver Mounting | Matrix |
Key Features
- The display measures 1.09 inches diagonally, ideal for compact electronic devices.
- The viewing area dimensions are 22.14 x 15.42 mm for precise display integration.
- Operates effectively between -30°C to 70°C, suitable for diverse environments.
- Interface type is SPI, facilitating simple communication with microcontrollers.
- Forward voltage is 3.5V with a forward current of 25mA ensuring low power consumption.
- The display has external dimensions of 25.7 mm width, 22.2 mm height, and 1.5 mm depth.
- Designed for matrix driver mounting to simplify circuit assembly.
Product Description
Univision DD-9664FC-2A is a 1.09 inch passive matrix OLED display designed to deliver high clarity and resolution for various electronic applications. It offers a screen resolution of 96 x 64 pixels with a high contrast ratio of 1:1000, providing sharp and vivid image quality. The display’s compact viewing area of 22.14 x 15.42 mm makes it a reliable choice for compact devices.
This OLED display uses a SPI interface, which supports efficient communication with microcontrollers and digital circuits. The passive matrix design simplifies the driving circuitry while maintaining good contrast and visibility in varying ambient light conditions.
Engineering measures have ensured that the display operates reliably within a temperature range of -30°C to 70°C, making it suitable for industrial, laboratory, commercial, and embedded system environments.
The display features an external size of 25.7 mm in width, 22.2 mm in height, and a depth of only 1.5 mm, contributing to slim and lightweight product designs. Its forward voltage specification of 3.5V and a forward current rating of 25 mA reflect its low power requirements, beneficial in battery-operated and portable instrumentation.
Designed with matrix driver mounting, this OLED Display supports straightforward integration into electronics assemblies. Manufactured in Taiwan, Province Of China, the component meets quality standards without specific certifications.
The display is ideal for use in industrial automation panels, handheld devices, instrumentation displays, and other electronic equipment requiring clear visual output. Its passive matrix technology offers a balance between cost and performance for monochrome display needs.
The compact form factor and low power consumption make it valuable in portable and embedded systems. Explore more displays and modules from our extensive catalog to fit your application needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display features a screen resolution of 96 x 64 pixels, providing clear and vivid image quality.
It operates effectively between -30°C to 70°C, making it suitable for various environments.
The external dimensions are 25.7 mm in width, 22.2 mm in height, and 1.5 mm in depth.
The forward voltage is 3.5V with a forward current of 25mA, ensuring low power consumption.
The viewing area dimensions are 22.14 mm by 15.42 mm, allowing for precise integration into electronic devices.
This model utilizes passive matrix technology, which simplifies the driving circuitry while maintaining good contrast and visibility.
The display has a contrast ratio of 1:1000, which contributes to sharp and vivid image quality in various lighting conditions.
It is designed for matrix driver mounting, simplifying circuit assembly during integration.
The display is manufactured in Taiwan, Province Of China.
It is suitable for use in industrial automation panels, handheld devices, and instrumentation displays, among other electronic equipment.
The diagonal display size is 1.09 inches, making it ideal for compact electronic devices.
