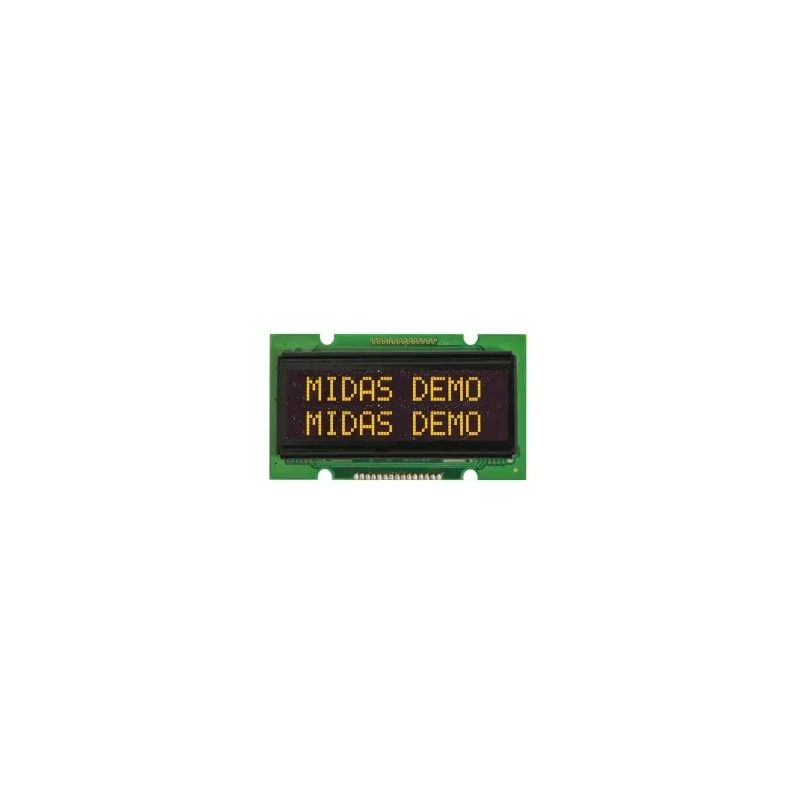

Midas Passive Matrix Yellow OLED Display COB Parallel Interface 46 x 14.5 mm Viewing Area MCOB21205AV-EYP

Midas MCOB21205AV-EYP passive matrix yellow OLED display COB is a chip-on-board character format OLED designed for high brightness and contrast in display module applications. It features a 46 x 14.5 mm viewing area and uses passive matrix technology with a parallel interface and COB (chip-on-board) driver mounting to provide a compact and efficient solution.

This OLED display offers exceptional readability with a 2000:1 contrast ratio and a yellow display color. It operates reliably over a wide temperature range from -40°C minimum to 80°C maximum. The device draws a forward current of 32 mA at a forward voltage of 5V DC, making it energy-efficient compared to traditional LCD modules.

External dimensions measure 55.7 mm in width, 32 mm depth, and 11 mm height, aligning with common LCD character display sizes for easy replacement. The display supports a wide viewing angle up to 175°, ensuring visibility from multiple angles and various industrial or commercial applications.

Ideal for use in industrial electronics, instrumentation, control panels, and embedded systems where a specific color display is required on a black background, the Midas COB OLED offers a 5x8 dot matrix character format with character heights around 5.5 mm. It supports multiple character font sets, including English, Japanese, Western European, and Cyrillic, making it versatile for global use.

The display features a 46 x 14.5 mm viewing area with passive matrix technology. Uses a parallel interface with COB driver mounting for compact design and integration. High contrast ratio of 2000:1 ensures sharp and clear display output.

Wide operating temperature range from -40°C to 80°C for reliability. Low power draw with 32 mA forward current at 5V DC forward voltage. Compact external dimensions of 55.7 mm width, 32 mm depth, and 11 mm height. Wide viewing angle up to 175° allows for flexible display positioning.

Character display uses a 5x8 dot matrix with character height about 5.5 mm. Suitable as a drop-in replacement for standard LCD character modules. Ideal for industrial, laboratory, embedded control, and instrumentation displays requiring colored OLED output.

Midas OLED displays provide a modern upgrade path from LCD modules with enhanced brightness, contrast, and energy efficiency. This model is particularly suited for applications that demand a yellow display color with high legibility in ambient light and diverse viewing angles.
