Midas 0.96 in Passive Matrix White OLED Display 128 x 64 Pixel COB SPI MDOB128064V1V-WI

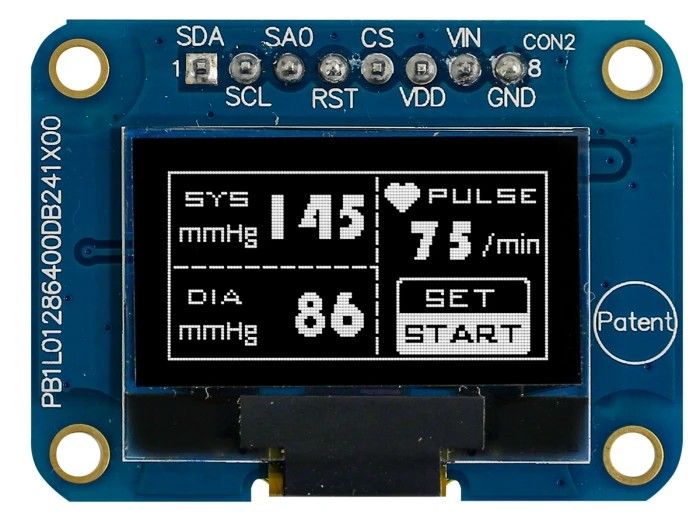

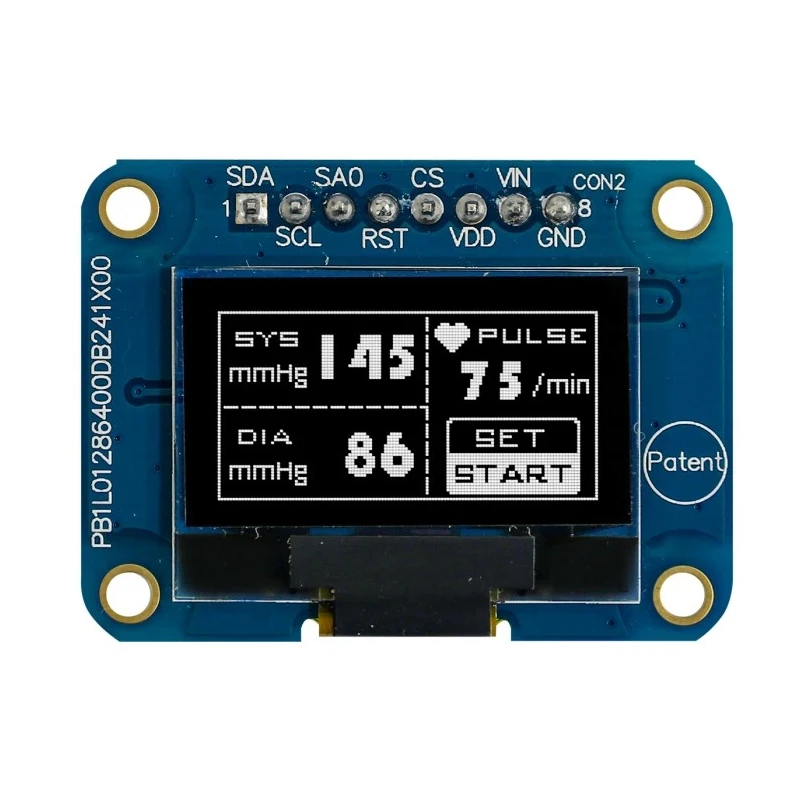

Midas MDOB128064V1V-WI is a 0.96 inch passive matrix OLED display module featuring a white-on-black color scheme and a resolution of 128 x 64 pixels. Designed with a COB (Chip on Board) driver mounting and SPI interface type, this OLED display is suitable for compact and efficient display applications in the electronics industry.

The display offers robust operating capability, functioning reliably within temperatures from -40°C up to 80°C. It supports a logic voltage of 3.3V DC and forward current of 20mA, ensuring low power consumption and efficiency.

With an external width of 38mm and a depth and height of 2.37mm, the display module allows for flexible installation in space-constrained environments. The viewing area dimensions are 21.74 mm by 10.86 mm, delivering clear image rendering with a high contrast ratio of 2000:1, which enhances the visibility of graphical content even in varied lighting conditions.

This display is RoHS compliant and originates from Taiwan, Province Of China, assuring quality standards compliance.

Typical applications include portable electronics, instrumentation displays, wearable devices, and other embedded system interfaces requiring clear, high-contrast visual output with minimal power usage.

The display features a 0.96 inch diagonal size with a 128 x 64 pixel resolution. It utilizes passive matrix technology providing a white display color on a black background. COB driver mounting with SPI interface enables compact integration and communication.

Operating temperature range spans from -40°C to +80°C ensuring reliability in diverse environments. The display has a high contrast ratio of 2000:1 enhancing visual clarity and definition. Forward current is designed at 20mA with a forward voltage of 3.3V DC.

Compact external dimensions of 38mm width and 2.37mm height and depth ensure easy mounting. The viewing area measures 21.74 x 10.86 mm for clear display visibility. Browse more high-quality OLED Displays and related electronic components at EnvMart for reliable and efficient solutions for your projects and production.
