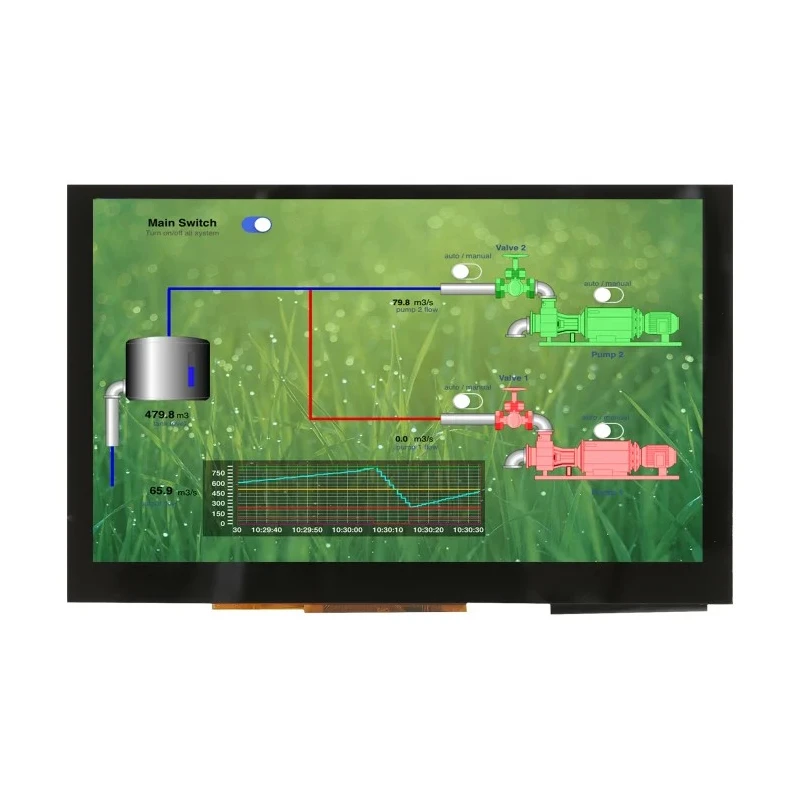

Midas 5 inch 800 x 480 Pixel TFT LCD Colour Display Touch Screen Capacitive USB Touch HDMI Interface MDT0500D2SSC-HDMI
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 800x480 |
| Display Type | TFT |
| Brand | Midas |
| Orientation | Landscape |
| Interface | HDMI (display), USB (touch) |
| Current | 680mA |
| Model | MDT0500D2SSC-HDMI |
| Maximum Operating Temperature | 70°C |
| Size (Inches) | 5.0" inches |
| Brightness | 400cd/m² |
| Display Technology | TN |
| Minimum Operating Temperature | -20°C |
| Interfaces | HDMI outputs |
| Operating Temperature (°C) | -20°C to +70°C |
| Interface Type | HDMI |
| Screen Resolution | 800 x 480 pixel |
| Standards/Approvals | RoHS |
| Touch Screen Type | Capacitive |
| Maximum Supply Voltage | 5.1V |
| Minimum Supply Voltage | 4.9V |
| Viewing Area Dimensions | 108 x 64.8 mm |
| Backlight Type | LED |
| 500 | 1 |
| Diagonal Display Size | 5in |
| Contrast Ratio | 500:1 |
| Module Dimensions (mm) | 120.7 x 75.8 x 23.2 mm |
| Aspect Ratio | 16:9 |
| Touch | Capacitive |
| 16 | 9 |
| Active Area (mm) | 108.0 x 64.8 mm |
| Brightness (cd/m2) | 400 |
| Contrast Ratio 500 | 1 |
| Aspect Ratio 16 | 9 |
| RS PRO TFT LCD Display Touch Screen, 5 in, 800 x 480 pixelsBrand | RS PRO |
Key Features
- The display features a TFT LCD panel with LED backlighting for enhanced brightness and clarity.
- It includes a capacitive touch screen interface compatible with Linux and Windows OS via USB plug and play.
- The module supports HDMI input for display connectivity and USB for touch interface communication.
- Operating temperature ranges from -20°C to 70°C, making it robust for various environments.
- The touch screen module is optimized for devices like Raspberry Pi and OKDO ROCK single board computers.
- Brightness level is rated at 400 cd/m² delivering clear visibility even in bright settings.
- This product is RoHS compliant, ensuring environmental safety standards.
- The module dimensions are compact at 120.7 x 75.8 x 23.2 mm, facilitating easy integration.
Product Description
The Midas MDT0500D2SSC-HDMI is a 5 inch TFT LCD colour display touch screen with a resolution of 800 x 480 pixels, designed for enhanced electronic and industrial applications. It offers a capacitive touch panel that is plug and play compatible via USB on Linux and Windows operating systems, ensuring versatile ease of use.
This display module is equipped with LED backlight technology delivering a brightness of 400 cd/m² and a contrast ratio of 500:1, providing sharp and vivid images. The active viewing area of 108 x 64.8 mm with a 16:9 aspect ratio makes it optimal for user interfaces requiring detailed visualization.
Its HDMI input allows for straightforward connection to a variety of single board computers such as Raspberry Pi and OKDO ROCK, making it suitable for embedded systems and display projects. The capacitive touch functionality supports intuitive multi-touch operation and accurate input.
The device is rated to operate reliably in temperatures between -20°C and 70°C, making it suitable for both laboratory and industrial environments. The modular size of 120.7 x 75.8 x 23.2 mm facilitates compact system designs.
This product meets RoHS standards, ensuring compliance with environmental and safety regulations. The combination of precise display and touch capabilities makes it ideal for automation systems, electronics development, laboratory instrumentation, and various commercial display applications.
The Midas MDT0500D2SSC-HDMI is compatible with Raspberry Pi, OKDO ROCK and other HDMI-enabled SBCs. Capacitive touch interface supports plug and play via USB as an HID device. LED backlight brightens the screen to 400 cd/m² with a high contrast ratio for clear visuals.
Built with a 5 inch TFT LCD panel and 800 x 480 pixel resolution for sharp image quality. The module is designed for landscape orientation with HDMI and USB inputs. Operating temperature range of -20°C to 70°C ensures consistent performance in industrial environments.
Compact module dimensions (120.7 x 75.8 x 23.2 mm) allow easy integration into custom assemblies. RoHS certified for environmental safety compliance. Explore more industrial display and electronic component options in the LCD Colour Displays category at EnvMart.
