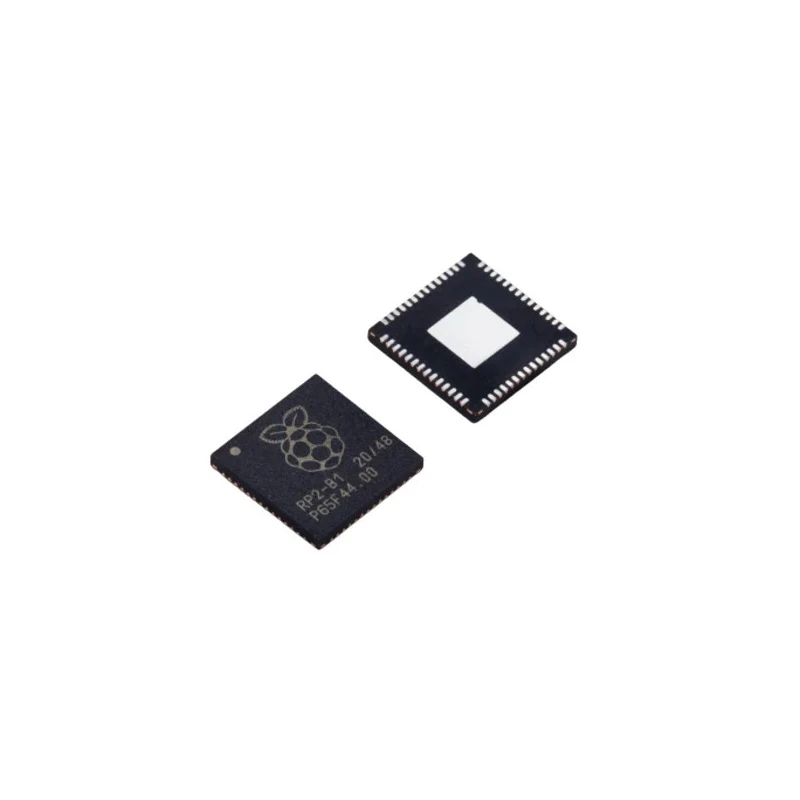

Raspberry Pi 32 Bit ARM Cortex M0+ Microcontroller 133 MHz 16MB FLASH 56-Pin QFN RP2040

Raspberry Pi RP2040 is a debut microcontroller featuring a 32-bit ARM Cortex M0+ core, running at 133 MHz, and equipped with 16MB FLASH memory in a 56-pin QFN package. It supports advanced embedded applications with 256kB on-chip SRAM divided into six banks and 30 programmable I/O pins including analog inputs. Designed for high performance and low power consumption, it offers multiple low-power modes suitable for battery-powered devices.

The chip incorporates a DMA controller and fully connected AHB crossbar for efficient data handling. It possesses 4 timers, an interpolator, and integer divider peripherals to optimize processing tasks. On-chip programmable LDO regulates core voltage, and dual PLLs generate USB and core clocks, supporting complex timing needs. Its operating voltage ranges between 1.8V to 3.3V, with an extended temperature range of -20°C to 85°C, suiting industrial and commercial applications.

Manufactured on a 40nm process, the RP2040 delivers low dynamic power consumption and leakage, making it an excellent choice for embedded systems, IoT devices, and low power applications. The surface mount QFN package with 56 pins facilitates easy PCB integration. This microcontroller is ideal for developers seeking a balance of power and efficiency in constrained boards.

Key features include a RISC instruction set architecture, automotive standard non-compliance, and 4 ADCs with 12-bit resolution available on analog inputs. The product originates from Taiwan, Province of China.

The RP2040 is suited for industrial control, embedded computing, consumer electronics, and prototyping tasks. Developers can leverage Raspberry Pi’s extensive ecosystem for design and collaboration. This microcontroller embodies Raspberry Pi’s commitment to cost-effective, accessible technology innovation.

Features a 32-bit ARM Cortex M0+ core for efficient processing. Includes 16MB of flash program memory for embedded applications. Operates at maximum clock frequency of 133 MHz. Contains 256kB SRAM organized in six independent banks.

Supports 30 programmable GPIO pins, 4 with analog input capability. Integrates 4 timers and 2 on-chip PLLs for frequency generation. Has a surface mount QFN package with 56 pins. Designed with low power consumption and multiple low-power modes.

Operating temperature range from -20°C to 85°C for industrial use. Includes DMA controller, interpolator, and integer divider peripherals. Explore more Raspberry Pi Microcontrollers and semiconductor products on EnvMart for innovative electronics development needs.
