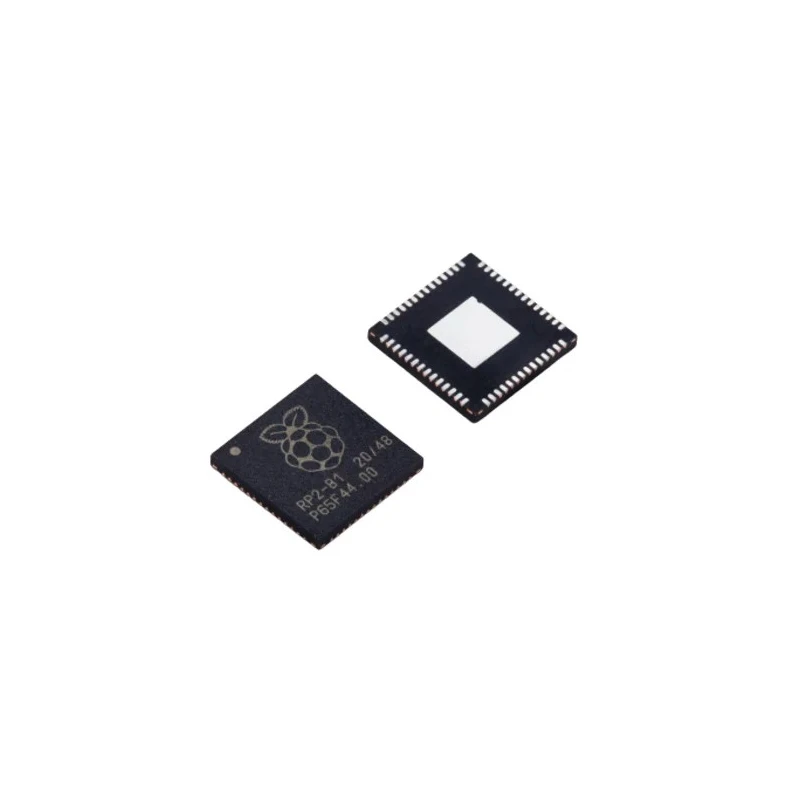

Raspberry Pi 32 bit ARM Cortex M0+ Microcontroller 133 MHz 16MB FLASH 56-Pin QFN RP2040

Free Delivery in India | Lowest Global Shipping Charges

Raspberry Pi 32 bit ARM Cortex M0+ Microcontroller 133 MHz 16MB FLASH 56-Pin QFN RP2040

Name: Raspberry Pi 32 bit ARM Cortex M0+ Microcontroller 133 MHz 16MB FLASH 56-Pin QFN RP2040
Brand: Raspberry Pi
SKU: 290759
Price: 1.44 USD
Availability: InStock



Category Microcontroller Brand Raspberry Pi Condition New

Specifications

Country of Origin	Taiwan
Brand	Raspberry Pi
Height	900μm
Length	7.75mm
Model	RP2040
Width	7.75mm
Mount Type	Surface
Series	ARM
Maximum Operating Temperature	85°C
Package Type	QFN
Minimum Operating Temperature	-20°C
Interfaces	USB and core clocks
Ram size	256kB
Pin Count	56
Maximum Supply Voltage	3.3V
Minimum Supply Voltage	1.8V
Device Core	ARM Cortex M0+
Program Memory Size	16MB
Maximum Clock Frequency	133MHz
Number of Programmable I/Os	30
Number of Timers	4
Instruction Set Architecture	RISC
ADCs	4 x 12 Bit
Program Memory Type	FLASH

Key Features

Manufactured using a modern 40nm process for high performance and low power consumption.
Features 30 programmable GPIO pins with 4 usable as analogue inputs.
Includes 4 programmable timers and a DMA controller for efficient data management.
Compact 56-Pin QFN surface-mount package with dimensions 7.75mm x 7.75mm x 900μm.
Operates with a maximum supply voltage of 3.3V and minimum of 1.8V for flexible power requirements.
Designed for robust performance across temperatures from -20°C to 85°C.
Includes on-chip programmable LDO, 2 PLLs for USB and core clocks, interpolator and integer divider peripherals.
Ideal for embedded applications in electronics, robotics, and industrial control systems.

Product Description

The Raspberry Pi RP2040 is a high-performance 32 bit ARM Cortex M0+ microcontroller designed for developers and engineers requiring efficient processing and low power consumption. Operating at 133 MHz, the RP2040 integrates 16MB of FLASH memory and 256kB on-chip SRAM arranged in six independent banks. Manufactured on a state-of-the-art 40nm process, it provides enhanced power efficiency and supports multiple low power modes to extend battery life for portable applications.

This microcontroller comes in a compact 56-Pin QFN surface mount package measuring 7.75mm in length and width and 900μm in height, making it suitable for dense PCB layouts. It requires a supply voltage ranging between 1.8V minimum to 3.3V maximum to ensure flexible power operation.

Key features include 30 programmable GPIO pins, with 4 capable of analog input via 12-bit ADCs, and 4 dedicated timers. The integrated DMA controller and fully connected AHB crossbar enable efficient data throughput. On-chip peripherals include interpolator and integer divider for signal processing and 2 PLLs to generate USB and core clock signals.

The RP2040 is optimized to operate reliably within temperature ranges from -20°C to 85°C, making it suitable for industrial and embedded system applications. Its architecture uses the RISC instruction set for streamlined code execution.

Common use cases for the RP2040 encompass embedded computing, robotics controls, IoT devices, and custom electronic applications requiring a balance of computational power and low energy use.

Manufactured with a modern 40nm process node for efficient power and performance. On-chip SRAM split into six independent banks totaling 264kB. Includes versatile programmable I/Os and analog inputs. Low power design with multiple operating modes support battery-powered devices.

Supplied in a QFN 56-pin package for surface-mount PCB integration. Explore more Raspberry Pi Microcontrollers and components on EnvMart for your electronics projects and industrial applications.
