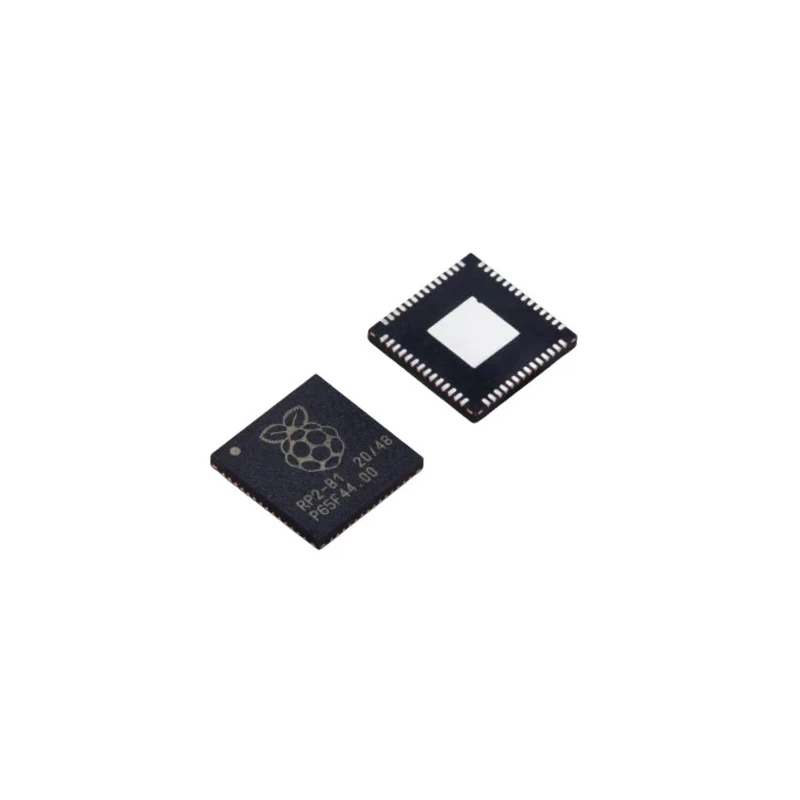

Raspberry Pi 32 bit ARM Cortex M0+ Microcontroller 133 MHz, 16MB FLASH, 56-Pin QFN RP2040

Raspberry Pi RP2040 microcontroller features a 32 bit ARM Cortex M0+ processor running at up to 133 MHz, embedded in a low-profile 56-pin QFN surface mount package. It offers 16MB of flash memory and 256 kB of SRAM organized in six independent banks to deliver high performance with low power consumption.

Manufactured on a 40 nm process technology, it supports ultra-low dynamic power usage and leakage, along with flexible power modes suitable for battery-powered industrial and embedded applications.

The RP2040 includes a DMA controller and a fully connected AHB crossbar to optimize data throughput, an interpolator and integer divider peripheral for advanced signal processing, and an on-chip programmable Low-Dropout (LDO) regulator to generate the core voltage.

Additional features include 30 GPIO pins of which 4 can act as analog inputs via 12-bit ADCs. The chip supports USB and core clock generation via two independent on-chip PLLs, enhancing connectivity capabilities.

Its operating voltage ranges from 1.8 V minimum to 3.3 V maximum, and it functions reliably across an industrial temperature range of -20°C to 85°C, making it ideal for industrial, laboratory, and embedded system deployments.

32 bit ARM Cortex M0+ core running at 133 MHz. 16MB flash memory and 256kB SRAM memory for application storage. Surface mount QFN package with 56 pins for compact PCB footprint. 30 programmable GPIO pins and 4 analogue inputs through ADC channels.

Low-power 40 nm manufacturing process for energy efficiency. Power supply operates from 1.8V to 3.3V. Integrated DMA controller and AHB crossbar architecture. On-chip programmable LDO for core voltage management. Dual PLLs to support USB and core clock generation.

Wide operating temperature range (-20°C to 85°C) suitable for industrial environments.

This microcontroller is suited for applications in embedded industrial control, communications, sensor interfacing, and any project demanding a balance of performance and low power. It is widely adopted in prototyping and production environments leveraging Raspberry Pi’s ecosystem.
