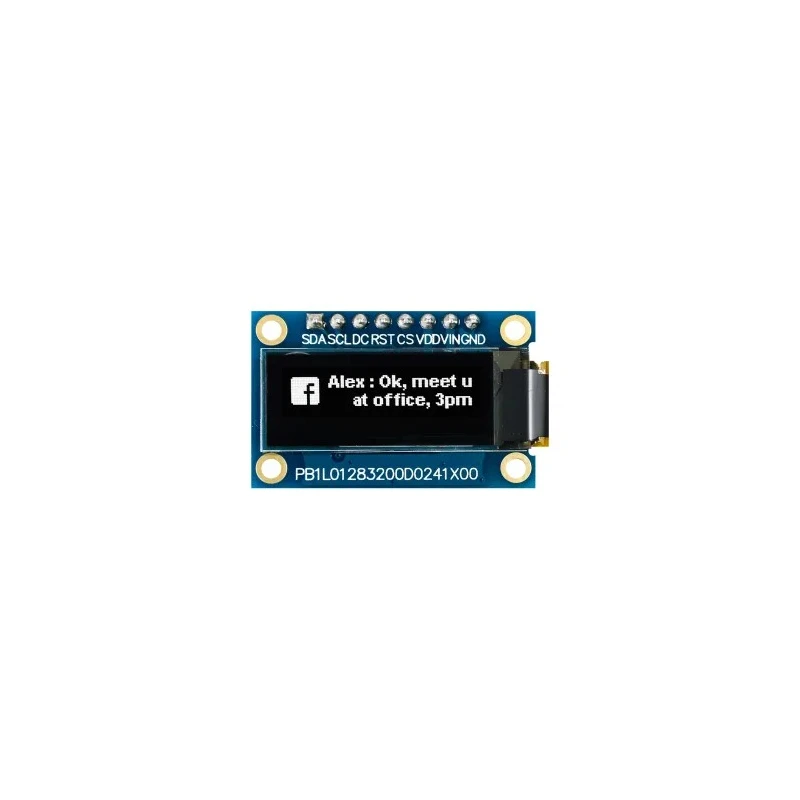

Midas 0.91 in Passive Matrix White OLED Display 128 x 32 Pixel COB SPI MDOB128032EV-WS

The Midas MDOB128032EV-WS is a high-quality 0.91 inch passive matrix white OLED display module with a 128 x 32 pixel resolution. It employs a chip-on-board (COB) mounting and SPI interface, making it suitable for a variety of embedded and industrial applications.

This display features a viewing area of 22.384 by 5.584 mm with a notable contrast ratio of 2000:1, delivering excellent clarity and sharpness for graphical content. The white text on black background design enhances legibility across different lighting environments.

Powered by the SSD1306BZ controller, it facilitates efficient graphic handling suitable for industrial, consumer electronics, and electronic component applications. The forward voltage rating is 3.3V DC at a 20mA forward current, ensuring energy-efficient operation.

The device supports a wide operating temperature range from -40°C to 80°C, which allows it to perform reliably in harsh environmental conditions. Its compact dimensions (32.5 mm width and 2.41 mm height and depth) enable seamless integration into space-constrained designs.

The module conforms to RoHS certifications, ensuring compliance with environmental and safety regulations. This OLED display is ideal for use in electronic instrumentation, industrial controls, portable devices, and display development projects.

The display size is 0.91 inches with a viewing area of 22.384 x 5.584 mm. 128 x 32 pixel resolution with passive matrix technology. Contrast ratio of 2000:1 for enhanced visibility. COB mounting type with SPI interface for robust integration.

Operating temperature ranges from -40°C to 80°C providing industrial-grade reliability. Forward voltage of 3.3V DC and forward current of 20mA ensures energy efficiency. White display color suitable for clear text and graphics representation.

Compact external dimensions of 32.5 mm width and 2.41 mm height and depth. RoHS certified for environmental compliance.

Explore the range of OLED Display modules by Midas for reliable and efficient display solutions in your next project or industrial application. Browse more products to find compatible and advanced OLED and other display modules at EnvMart.
