| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.4mm |
| Length | 0.85mm |
| Model | ESD9L5.0ST5G |
| Width | 0.65mm |
| Mount Type | Surface |
| Series | ESD9L |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-923 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.8V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 0.15W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 1A |
| Maximum Reverse Leakage Current | 1μA |

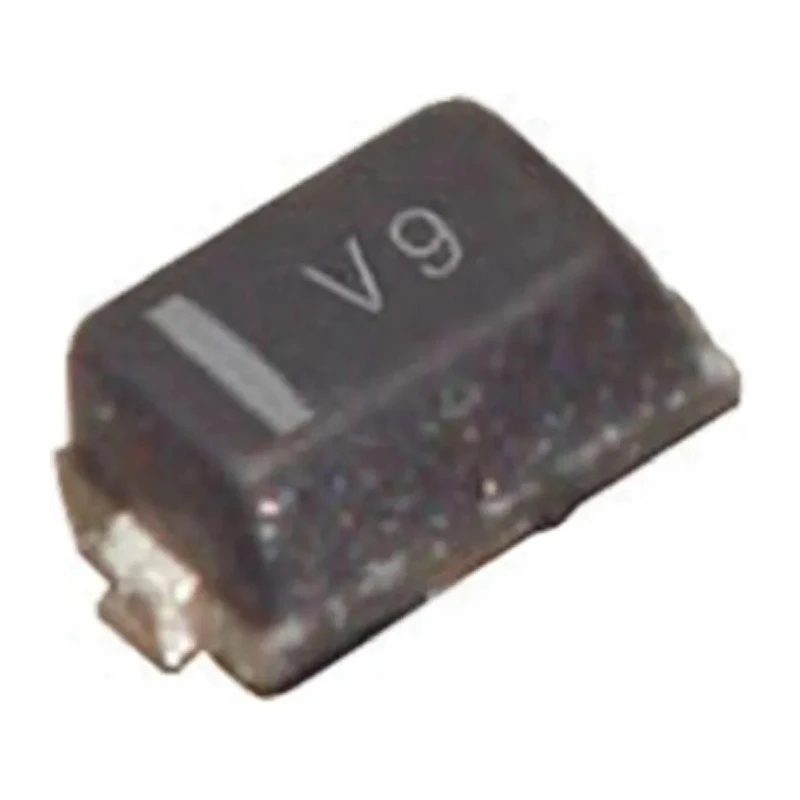

onsemi ESD9L5.0ST5G is a high-performance 1-element uni-directional Transient Voltage Suppression (TVS) diode designed to protect sensitive electronics from voltage spikes and electrostatic discharge (ESD) events. With a power dissipation rating of 0.15 W and compact 2-pin SOD-923 surface mount package, this TVS diode is ideal for space-constrained applications.
The diode features a minimum breakdown voltage of 5.4 V and a maximum reverse standoff voltage of 5 V, ensuring effective suppression of transient surges while allowing normal operation voltage. Clamping voltage is maintained at 9.8 V to prevent damage to downstream circuitry during voltage spikes.
Its compact dimensions of 0.85 mm length, 0.65 mm width, and 0.4 mm height enable use in miniaturized electronic devices. The device can withstand a peak pulse current of 1 A and operates reliably over a wide temperature range from -55°C to 150°C, making it suitable for harsh industrial, automotive, and consumer electronics environments.
This TVS diode complies with the AEC-Q101 automotive qualification standards, making it appropriate for use in automotive electronic systems requiring robust ESD protection. The low maximum reverse leakage current of 1 μA optimizes power consumption during normal operation.
Package is surface mount type, allowing ease of automated PCB assembly and improved production throughput. The product is backed by onsemi’s reputation for quality and performance in discrete semiconductor components.
Single diode configuration for uni-directional transient voltage suppression. Minimum breakdown voltage of 5.4 V ensures reliable surge protection. Compact surface mount SOD-923 package. Peak pulse power dissipation of 0.15 W and maximum peak pulse current of 1 A.
Clamping voltage of 9.8 V during transient events. Wide operating temperature range: -55°C to 150°C. Automotive standard AEC-Q101 compliant for vehicle electronics. Low maximum reverse leakage current of 1 μA for energy efficiency.
This TVS diode is ideal for industrial machinery, consumer electronics, automotive systems, and any sensitive equipment requiring reliable voltage transient suppression. Browse other semiconductor components and TVS Diodes at EnvMart for complementary parts and solutions.
