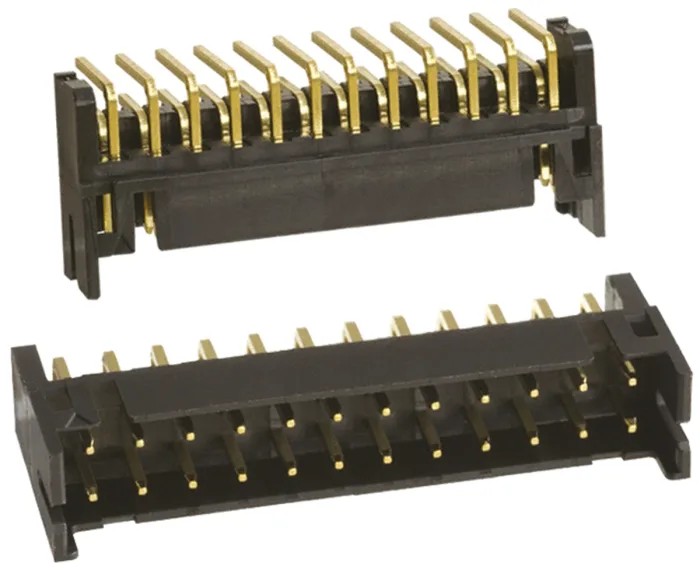

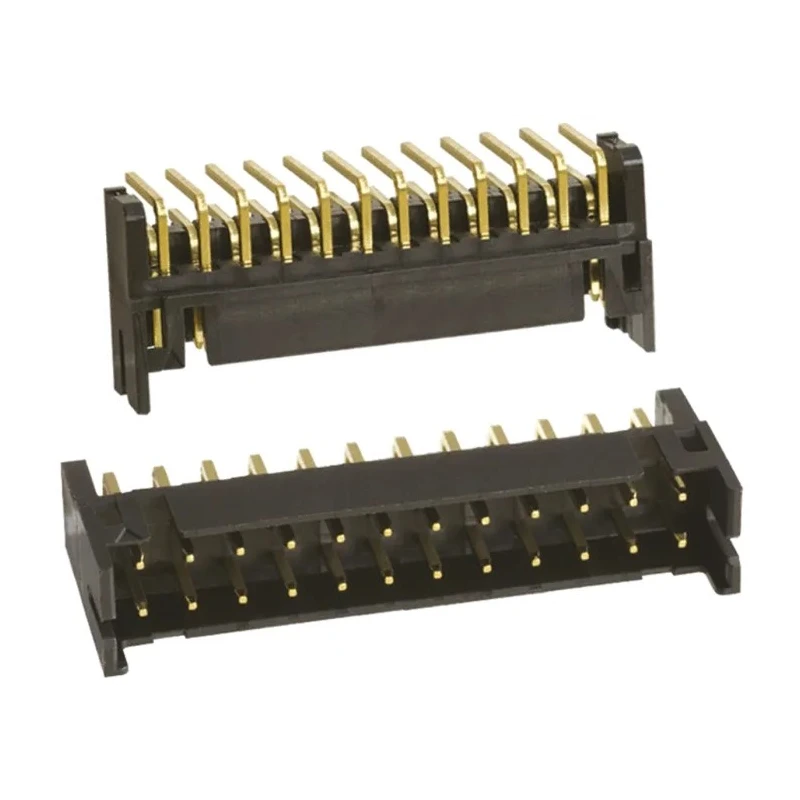

Hirose DF11 Series Right Angle Through Hole PCB Header 24 Contacts 2 mm Pitch 2 Row Shrouded DF11
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Compact double row design with 2.00 mm pitch.
- Right angle orientation suitable for space saving PCB layouts.
- Shrouded housing with guide ribs to prevent incorrect insertion.
- Gold-plated copper alloy contacts ensuring reliable connectivity.
- Through hole mount type for sturdy PCB attachment.
- Operates between -30°C and 85°C temperature range.
- Supports up to 250V voltage and 2A current rating.
- Robust polyamide housing material for durability.
Product Description
Hirose DF11 Series Right Angle Through Hole PCB Header DF11, featuring 24 contacts at 2 mm pitch with 2 rows in a shrouded design, is engineered for compactness and reliable electrical performance.
This PCB header has a compact double row configuration with a depth of less than 5 mm, enabling a high-density installation in limited PCB spaces. The right angle orientation provides optimal routing options on PCBs for space-constrained applications.
The header's polyamide housing is shrouded with guide ribs, preventing mismating and twisting during connection, and includes a locking mechanism to secure the header to its mating connector housing firmly. It uses copper alloy contacts plated with gold, delivering excellent conductivity and corrosion resistance.
Designed for through hole mounting, the header offers high retention strength on PCBs and resistance to solder peeling thanks to metal fittings on SMT variants. It supports a voltage rating up to 250V and a current rating of 2A, operating reliably across temperatures from -30°C to 85°C.
These connectors cater to multiple electronic applications including digital cameras, LCD displays, video recorders, car navigation systems, access control units, and measurement devices. Its compatibility with DF11 series connector housings and sockets makes it versatile for both board-to-board and wire-to-board connections.
Compact double row design with 2.00 mm pitch. Right angle orientation for space-saving PCB layout. Shrouded housing with guide ribs and locking mechanism. Gold-plated copper alloy contacts ensure durability and conductivity.
Through hole mount type for secure PCB fixation. Operating temperature range from -30°C to 85°C. Voltage rating up to 250V and current rating 2A. Robust polyamide housing material. Suitable for board-to-board and wire-to-board applications.
Metal fittings prevent solder peeling and enhance retention.
For reliable and compact PCB connections, Hirose DF11 Series headers are ideal components to consider. Explore more PCB Headers and Hirose products at EnvMart for additional options and technical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a voltage rating of up to 250V and a current rating of 2A.
The DF11 model operates reliably within a temperature range of -30°C to 85°C.
The contacts in this header are designed with a pitch size of 2 mm.
This header features a total of 24 contacts.
It utilizes a through hole mounting type for secure attachment to PCBs.
The housing is made of robust polyamide, and the contacts are composed of gold-plated copper alloy.
The header has a right angle orientation, suitable for space-saving PCB layouts.
The shrouded housing includes guide ribs that help prevent incorrect insertion and twisting during connection.
It is suitable for various electronic applications, including digital cameras, LCD displays, and car navigation systems.
This model supports both board-to-board and wire-to-board connections.
The country of origin for this PCB header is Japan.
Metal fittings are included in the design to prevent solder peeling and enhance retention strength on PCBs.
