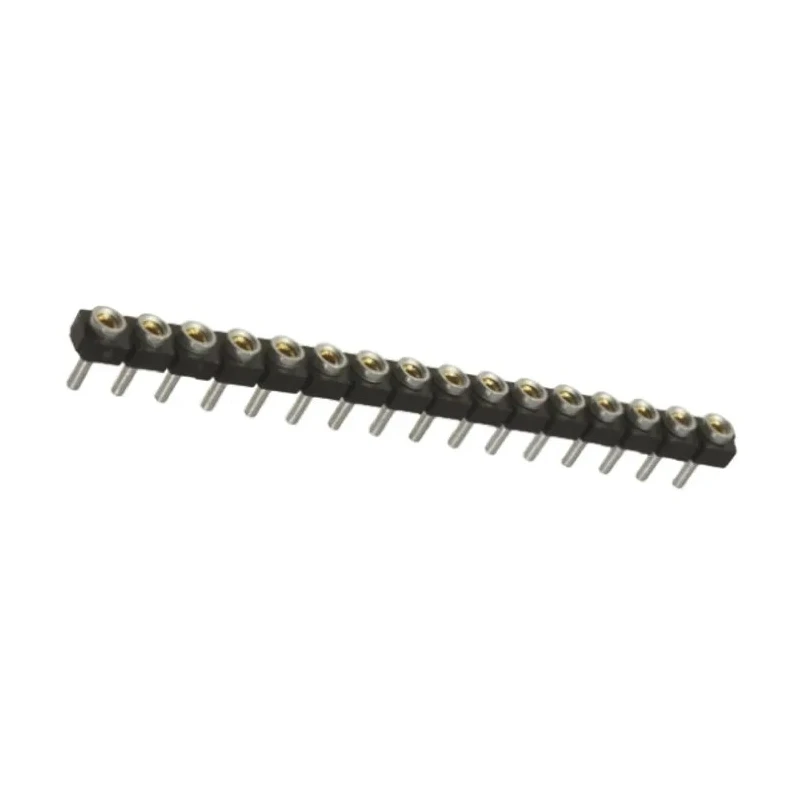

Samtec Board-to-Board Through Hole PCB Socket 16-Contact 1 Row 2.54 mm Pitch Solder SL-116-T-10

Samtec SL-116-T-10 is a precision engineered board-to-board through hole PCB socket designed to provide reliable electrical connections with a low profile form factor. Featuring a single row of 16 contacts spaced at 2.54 mm pitch, this PCB socket is suitable for a wide range of industrial, commercial, and manufacturing PCB applications where robust mechanical and electrical performance is required.

The socket housing is manufactured from black glass filled polyester, offering excellent mechanical strength and thermal stability. The female contacts are made of phosphor bronze alloy plated with 0.76 μm thick gold, ensuring durable corrosion resistance and superior conductivity. The termination type is solder, compatible with standard PCB assembly processes.

Operating over a broad temperature range from -55°C to 125°C, the SL-116-T-10 socket is built to perform reliably under demanding environmental conditions. It supports a nominal current of 12 amperes, making it well suited for medium power signal and power interconnections.

This product complies with RoHS directives, affirming its compliance with environmental regulations on hazardous substances. The SL series socket strips mate effectively with Samtec’s BBL, BBS, and TS series header terminal strips, providing flexibility in design choices for stacking or board-to-board connection solutions.

Designed for facile implementation into PCBs with its through hole mount and straight orientation, this socket strip supports efficient assembly and improved production efficiency.

Constructed using black glass filled polyester body and gold-plated phosphor bronze contacts. Single row 16-contact configuration spaced at 2.54 mm pitch. Rated current of 12A suitable for medium power applications. Operating temperature range from -55°C to 125°C.

Termination by solder with through hole mounting style. Compatible with Samtec BBL, BBS, and TS header terminal strips. Complies with RoHS environmental standards. Low profile design enables efficient PCB stack-ups.

Ideal for use in industrial electronics, manufacturing, telecommunications, and other sectors requiring reliable board-to-board interconnect solutions. This Samtec SL-116-T-10 socket provides a durable, high-quality interface facilitating streamlined PCB assembly and robust performance in demanding environments.
