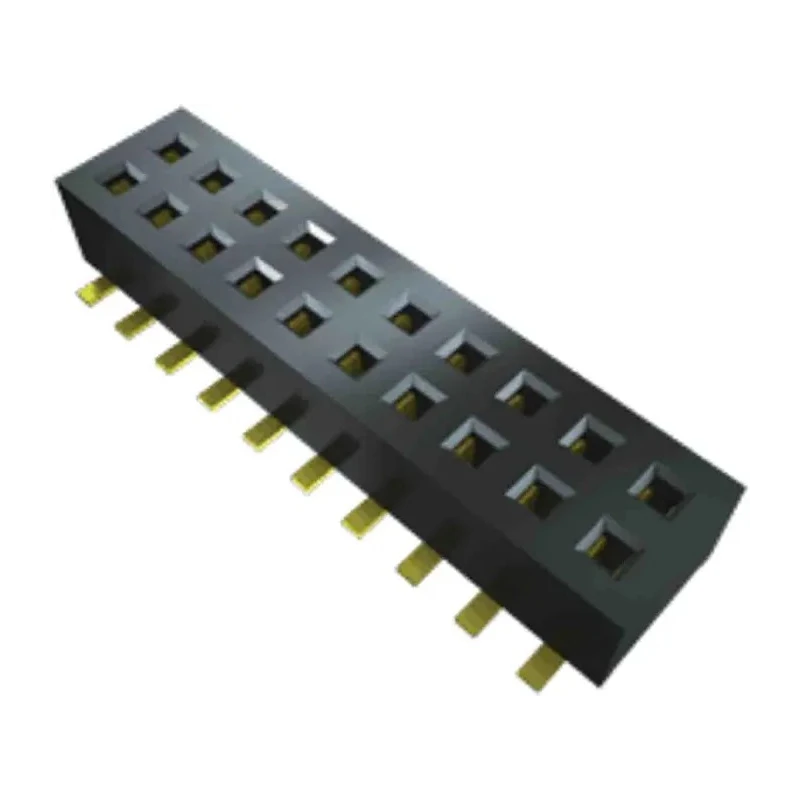

Samtec CLP Series Straight Surface PCB Socket, 20-Contact, 2 Row, 1.27 mm Pitch, Solder Termination CLP-110-02-G-D-BE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.4A |
| Model | CLP-110-02-G-D-BE |
| Mount Type | Surface |
| Housing Material | Black Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | CLP |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Tin |
| Number of Contacts | 20 |
Key Features
- Features a straight orientation for easy surface mounting.
- Constructed with black liquid crystal polymer housing for durability.
- Contact material is phosphor bronze with gold over tin plating for reliable conductivity.
- Supports a current rating of 3.4A per pin for efficient electrical performance.
- Operates reliably from -55°C to +125°C temperature range.
- Uses solder termination type ensuring solid connections to the PCB.
- Series CLP rugged dual wipe socket strip design ensures durability.
- Compatible with industrial, electronic assembly, and PCB manufacturing applications.
Product Description
The Samtec CLP-110-02-G-D-BE is a high-quality straight surface PCB socket designed as part of the CLP series, featuring a 1.27 mm pitch and 20 contact points arranged in 2 rows.
The housing is made from black liquid crystal polymer, offering excellent mechanical strength and thermal resistance, suitable for operating temperatures from -55°C to 125°C. Contacts are made from phosphor bronze and plated with gold over tin to ensure superior electrical conductivity and corrosion resistance.
This PCB Socket supports a current rating of 3.4 amperes per pin, making it suitable for various industrial electronic uses including telecommunications, computing, and manufacturing equipment assembly.
The solder termination type enables secure and durable mounting on surface-mount technology (SMT) PCBs. Its straight orientation simplifies installation and aligns with standard PCB layouts.
The CLP series socket's rugged design with Tiger Claw dual wipe contact system enhances long-term reliability under repeated connection cycles, ideal for industrial and laboratory environments that require durable connectors.
Features a straight orientation for easy surface mounting. Constructed with black liquid crystal polymer housing for durability. Contact material is phosphor bronze with gold over tin plating for reliable conductivity. Supports a current rating of 3.4A per pin for efficient electrical performance.
Operates reliably from -55°C to +125°C temperature range. Uses solder termination type ensuring solid connections to the PCB. Series CLP rugged dual wipe socket strip design ensures durability. Compatible with industrial, electronic assembly, and PCB manufacturing applications.
This product is ideal for electronics manufacturing, industrial control systems, and other professional electronic component assemblies requiring high-performance PCB interconnect solutions. The Samtec CLP-110-02-G-D-BE is RoHS compliant ensuring environmental safety.
Explore more electronic components like connectors and sockets in our Electronics & Electricals category for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3.4A per pin, ensuring efficient electrical performance.
It operates reliably within a temperature range of -55°C to +125°C.
The housing is made from black liquid crystal polymer, while the contacts are made from phosphor bronze with gold over tin plating.
It uses a solder termination type, ensuring solid connections to the PCB.
This PCB socket features 20 contacts arranged in 2 rows.
The contact pitch for this model is 1.27 mm.
This model has a straight orientation for easy surface mounting.
Yes, this product is RoHS compliant, ensuring it meets environmental safety standards.
It is compatible with industrial, electronic assembly, and PCB manufacturing applications.
The sub-type classification for this socket is Board-to-Board.
The country of origin for this model is India.
It features a rugged dual wipe socket strip design, enhancing durability and reliability under repeated connection cycles.
