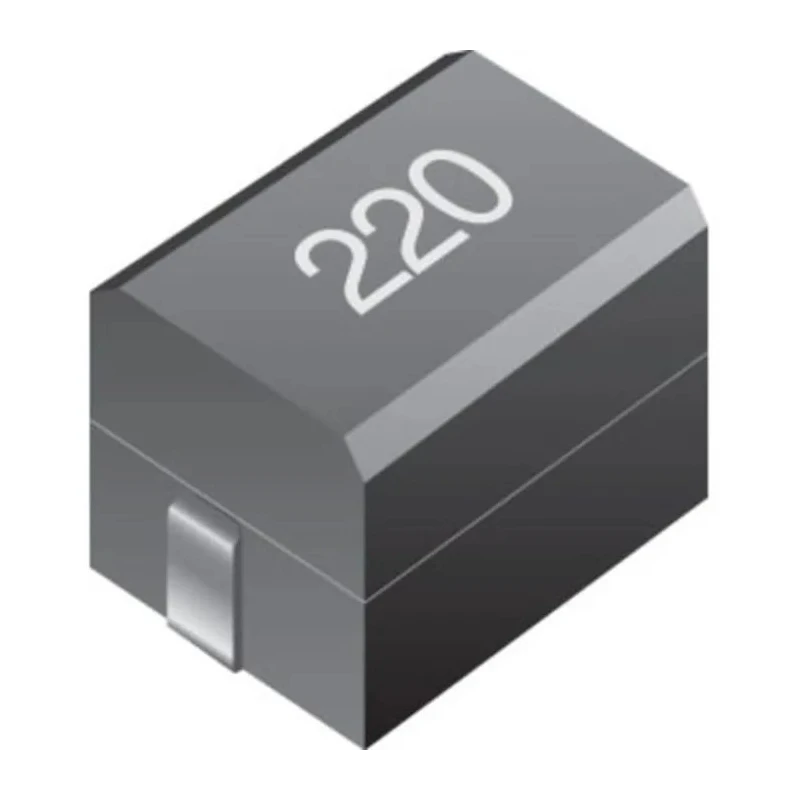

Bourns 1812 Multilayer Surface Mount Inductor with Ferrite Core 3.3 μH ±10% 1.5 A IDC Q:10 CC453232A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bourns |
| Height | 3.2mm |
| Length | 4.5mm |
| Model | CC453232A |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | CC453232A |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 3.3μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 1.5A |
| Maximum DC Resistance | 210mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 35MHz |
| Minimum Quality Factor | 10 |
| Inductor Construction | Ferrite Core |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 1812 package size suitable for surface mounting.
- Ferrite core construction for efficient inductance and stability.
- Maximum DC resistance of 210 milliohms ensures low power loss.
- Rated for operation between -40°C and 150°C.
- Compliance with AEC-Q200 automotive standard and RoHS.
- Packaging format is tape and reel for automated placement.
- Typical self-resonant frequency of 35 MHz supports high-frequency applications.
- Minimum quality factor of 10 for reliable performance.
Product Description
Bourns CC453232A is a high-performance multilayer surface mount inductor in an 1812 package, designed with a ferrite core that provides a nominal inductance of 3.3 μH with a tolerance of ±10%. This component is constructed to support a maximum DC current of 1.5 A, making it suitable for demanding electronic applications requiring efficient noise suppression and energy storage.
The inductor features a durable epoxy resin enclosure and stannum termination, contributing to its resistance to mechanical shock and pressure. It operates reliably across a temperature range of -40°C to 150°C, accommodating automotive and industrial environments, compliant with the AEC-Q200 standard.
Designed for automated assembly, the part comes in tape and reel packaging, ensuring compatibility with modern pick-and-place machinery. Its maximum DC resistance is rated at 210 milliohms, minimizing power losses in circuits. The self-resonant frequency of 35 MHz allows use in high-frequency switching power supplies and filtering applications.
The device meets RoHS environmental directives and is suitable for a wide range of electronics, automotive systems, power management, and manufacturing applications where stable inductance and quality factor are critical.
Compact 1812 surface mount package. Ferrite core construction for high inductance stability. Max DC current 1.5 A with low resistance. Wide operating temperature from -40°C to 150°C. Complies with AEC-Q200 and RoHS standards.
High self-resonant frequency supports high-speed circuits. Quality factor of at least 10 ensuring efficiency. Tape and reel packaging designed for automated assembly.
This Bourns CC453232A Surface Mount Inductor is an ideal choice for engineers seeking a reliable, high-quality passive component for electronic circuit design and production. For more advanced electronic components, explore the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns CC453232A inductor has a nominal inductance of 3.3 μH with a tolerance of ±10%.
This model is rated for a maximum DC current of 1.5 A.
The maximum DC resistance for this inductor is rated at 210 milliohms, which helps minimize power loss.
It can operate reliably within a temperature range of -40°C to 150°C.
The typical self-resonant frequency of the CC453232A is 35 MHz, supporting high-frequency applications.
This inductor comes in a compact 1812 package size, suitable for surface mounting.
The inductor features a ferrite core construction and a durable epoxy resin enclosure.
Yes, it complies with the AEC-Q200 automotive standard, making it suitable for automotive applications.
The CC453232A is packaged in tape and reel format, which is designed for automated assembly.
The minimum quality factor for this inductor is 10, ensuring reliable performance.
Yes, it meets RoHS environmental directives, indicating compliance with restrictions on hazardous substances.
The termination style for this model is solder, suitable for surface mounting applications.
