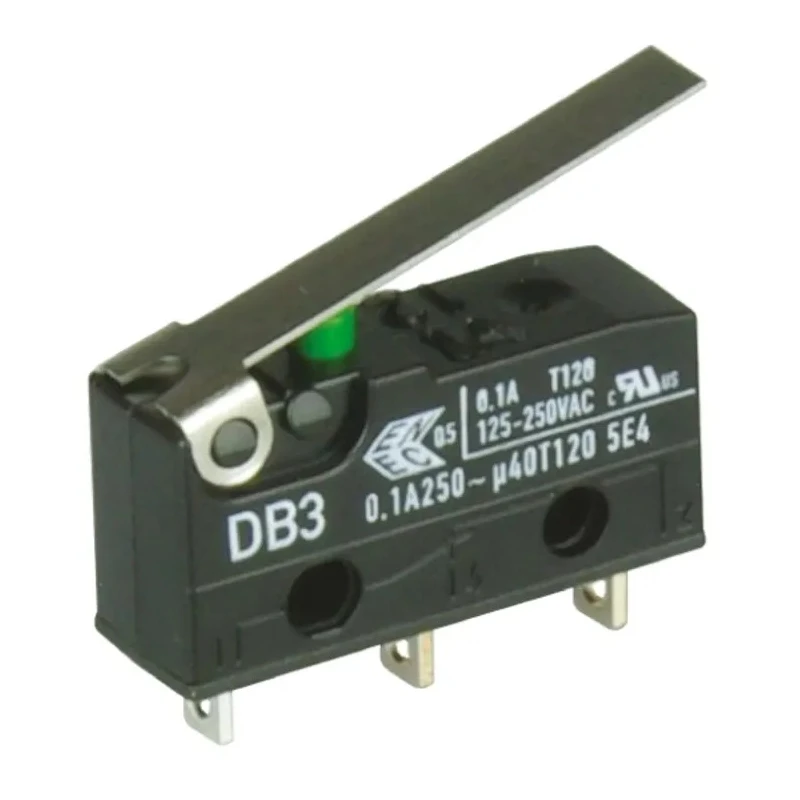

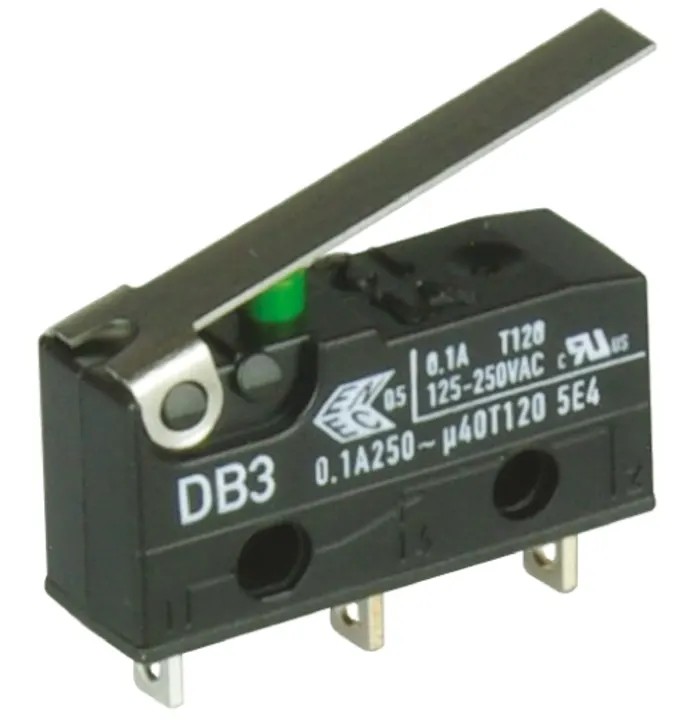

ZF Hinge Lever Micro Switch, Solder Terminal, 100mA, 250 V ac, SPDT Contact Configuration, IP50 DB3C-A1LC

ZF DB3C-A1LC Hinge Lever Micro Switch is a precision component designed for sensitive and reliable switching in electrical and automation applications. Featuring solder terminals, this switch supports a contact current of 100mA and an AC voltage rating of 250 V. Its SPDT (Single Pole Double Throw) contact configuration provides versatile switching options suitable for a wide range of industrial and electronic controls.

The actuator employs a hinge lever type constructed for smooth mechanical action and precise operation. The robust housing uses polyamide and polyethylene terephthalate materials both meeting UL 94V-0 flame retardant standards, ensuring durability under demanding conditions. It is rated IP50, protecting against mechanical ingress.

The operating force of 0.49 N allows reliable actuation with minimum effort. This microswitch is designed for extreme temperature environments, operating from -40°C to 120°C, making it suitable for harsh industrial and environmental applications. Its mechanical life of 15 million operations underlines its exceptional longevity and reliability in continuous use.

The switch contacts are made of silver-nickel, which provides excellent conductivity and resistance to corrosion. Compliant with RoHS standards, this device is environmentally responsible, suitable for use in applications requiring strict regulatory adherence.

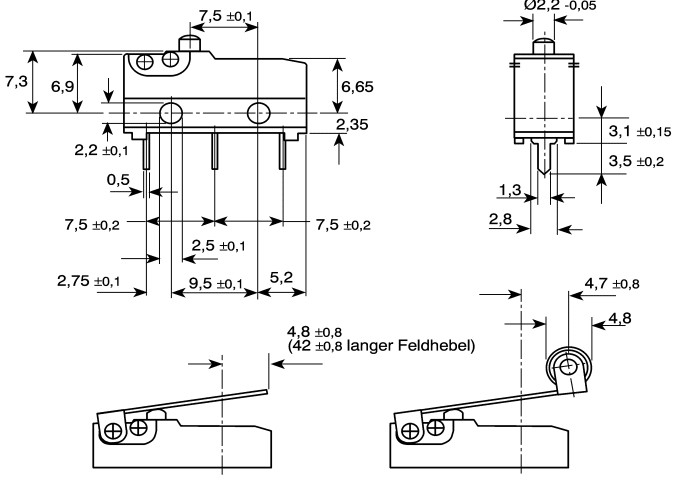

Compact dimensions of 11.65 mm height, 20 mm width, and 6.5 mm depth make it ideal for tight spaces. Common applications include electrical automation, control panels, instrumentation, and sensitive switching mechanisms in manufacturing and laboratory equipment.

Set contains one ZF DB3C-A1LC micro switch with solder terminals and a hinge lever actuator. This component is designed for industrial-grade reliability and performance, appropriate for use in electronics, HVAC systems, electrical machinery, and automation tasks.

The actuator type is a hinge lever for precise operation. Solder terminal ensures reliable electrical connection. Housing made from polyamide and polyethylene terephthalate materials offers durability. Operating force is 0.49 N, allowing smooth activation.

The switch operates in a temperature range from -40°C to 120°C. Designed as a DB subminiature microswitch suitable for demanding applications. Mechanical life extends to 15 million operations for long-term reliability. Silver-nickel contacts enhance conductivity and reduce wear.

Complies with RoHS standards ensuring environmentally safe materials. Dimensions: Height 11.65 mm, Width 20 mm, Depth 6.5 mm. Explore more products in the Micro Switch category at EnvMart for high-quality, reliable switch components suited for industrial and commercial electronics.
